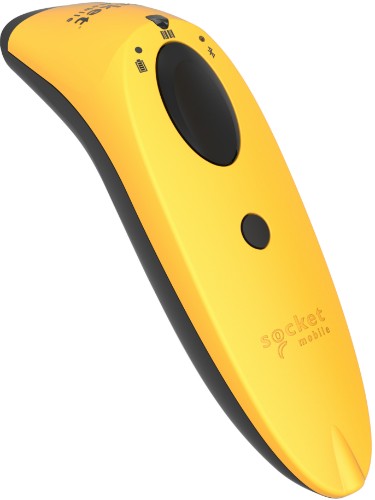

SocketScan S740, 1D/2D omni-directional Barcode Led, Bluetooth 2.1+EDR
Description

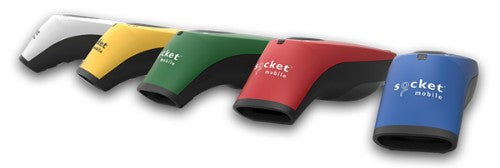

The SocketScan S740 2D/1D imager barcode scanner with Bluetooth wireless technology scans either 1D or 2D barcodes on paper or screen. It has a lightweight, ergonomic structure, and a long-lasting battery to withstand entire work days. The five color options fit most styles and environment needs. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. Compatible with all applications in previous Socket Mobile barcode scanners, without software changes.
This scanner is dressed to impress both consumers and end users in retail and office settings. Ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.
Application Integration – Socket Mobile’s Capture SDK enables integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, JAN, MSI, U.P.C. |
| Wavelength |
660 nm |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Wireless range |
393.7" (10 m) |
| Bluetooth version |
2.1+EDR |
| Standard interfaces |
Bluetooth |
| Performance |
|---|
| LED indicators |
Yes |
| Product colour |
Yellow |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Design |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| Product colour |
Yellow |
| Power |
|---|
| Power source type |
Battery |
| Number of batteries supported |
2 |
| Charging time |
6 h |
| Number of reads per charge |
70000 |
| Battery technology |
Nickel-Metal Hydride (NiMH) |
| Battery capacity |
2000 mAh |
| Weight & dimensions |
|---|
| Width |
1.46" (37.1 mm) |
| Depth |
1.58" (40.1 mm) |
| Height |
5.2" (132.2 mm) |
| Weight |
4.13 oz (117 g) |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| LED indicators |
Yes |
| Product colour |
Yellow |
| Harmonized System (HS) code |
84716070 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
