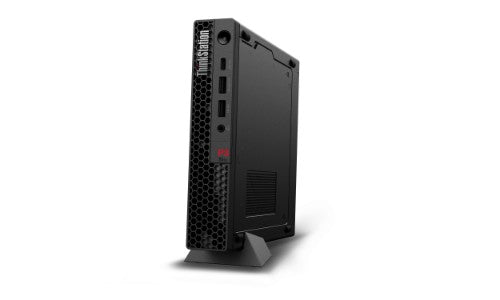

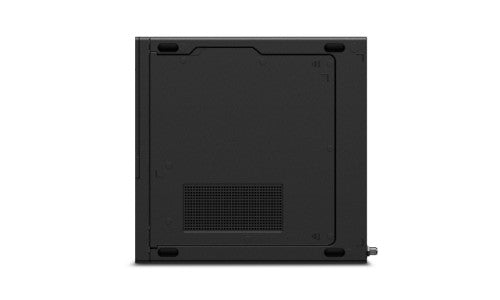

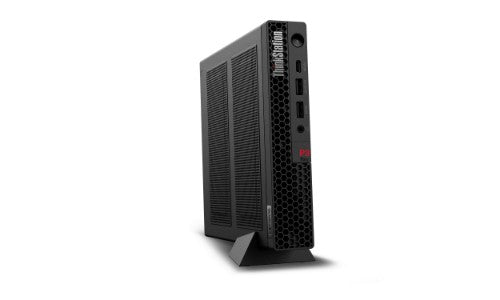

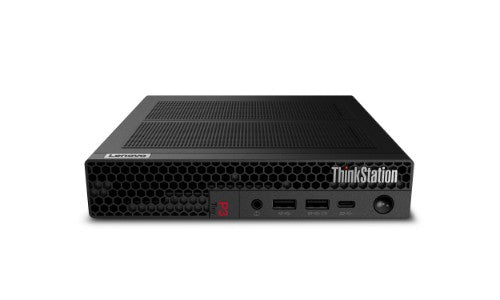

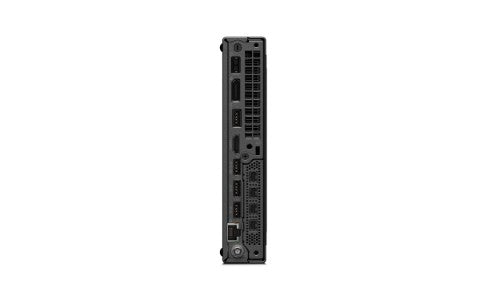

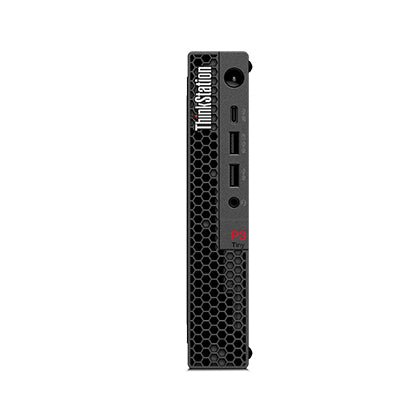

Lenovo ThinkStation P3 Tiny Gen 2 Intel Core Ultra 9 285 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A400 Windows 11 Pro Mini PC Workstation Black

Intel Core Ultra 9 285 (36MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, NVIDIA RTX A400 (4GB GDDR6), LAN, WLAN, Bluetooth, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 9 285 (36MB Cache)
• NVIDIA RTX A400 (4GB GDDR6)
• 32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD

Description

LENOVO THINKSTATION P3 TINY GEN 2
Big Performance From a Tiny Workstation
Engineered to go where others can’t, the ThinkStation P3 Tiny Gen 2 workstation offers uncompromising performance while being 96% smaller than a traditional desktop. At 1L in volume, the industry’s smallest workstation combines the power of Intel® Core™ Ultra (Series 2) with Intel vPro® processors and NVIDIA RTX™ graphics in a simple, efficient design.

Accelerate AI Workflows with Integrated NPU and Professional Graphics
The built-in NPU, CPU, and iGPU deliver up to 36 TOPS for AI inferencing, while NVIDIA RTX™ A1000 graphics adds another 108 TOPS for advanced ray tracing and AI acceleration to enhance compute tasks. Together, they provide a dependable solution for tasks like computer vision, real-time data insights, and more — right at your desk or on location.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	40 MB
Processor model	285
Processor manufacturer	Intel
Processor boost frequency	5.6 GHz
Processor threads	20
Processor cores	24
Processor family	Intel Core Ultra 9
Performance cores	8
Efficient cores	16
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.9 GHz
Processor base power	65 W
Maximum turbo power	182 W
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Non-ECC	Yes
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	128 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	6400 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 5.0
SSD capacity	1 TB
Number of SSDs installed	1
Total storage capacity	1 TB
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
Graphics card Mini DisplayPort ports quantity	4
On-board graphics card family	Intel® Graphics
On-board graphics card	Yes
Discrete graphics card model	NVIDIA RTX A400
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel® Graphics
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN data rates	10,100,1000 Mbit/s
WLAN controller model	Intel Wi-Fi 7 BE200
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4
USB 3.2 Gen 2x2 Type-C ports quantity	1
Technical details
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Audio system	High Definition Audio
Cable lock slot	Yes
Motherboard chipset	Intel Q870
Compliance certificates	RoHS
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Performance
Audio chip	Realtek ALC233VB
Number of speakers	1
Password protection type	BIOS, HDD, Power on
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q870
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	300 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	MIL-STD-810H TCO Certified, generation 10
Compliance certificates	RoHS
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (182.9 mm)
Height	1.46" (37 mm)
Weight	3.09 lbs (1.4 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
