60.5cm (23.8") Quad HD 2560 x 1440 W-LED IPS, 16:9, 300cd/m², 16.7M, 6ms, 178°/178°, 1500:1
Key Features
- 60.5cm (23.8") Quad HD 2560 x 1440 W-LED IPS
- 6ms, 16:9, 300cd/m², 1500:1
- USB, HDMI, DisplayPort
Description
Enjoy working with energy savings and smooth visuals from the monitor's 48-120Hz variable refresh rate. Maximize productivity using one cable docking solution. Add efficiency to your workflow by enabling remote asset management and overall software solution wth Lenovo LDFM and LADM software.
Lenovo Display Fleet ManagerSave time by enabling IT to take full control of your monitors for remote asset management, firmware upgrades and display settings control with LDFM.
Lenovo Accessory and Display ManagerEnable software solution of your displays for any usage scenario with Lenovo LADM (ThinkColour).*
*Formerly Lenovo Display Control Center. Supports Windows 10 & 11, Mac OS (functions vary across systems)

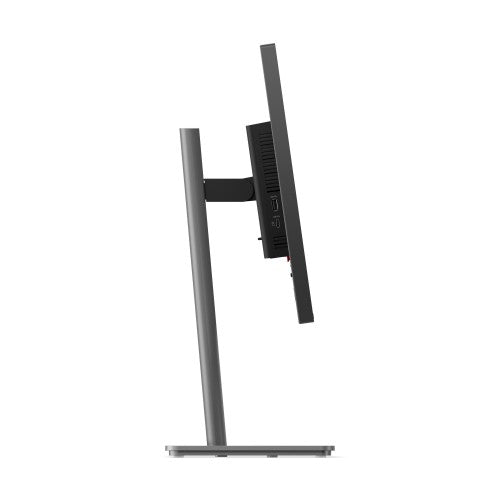

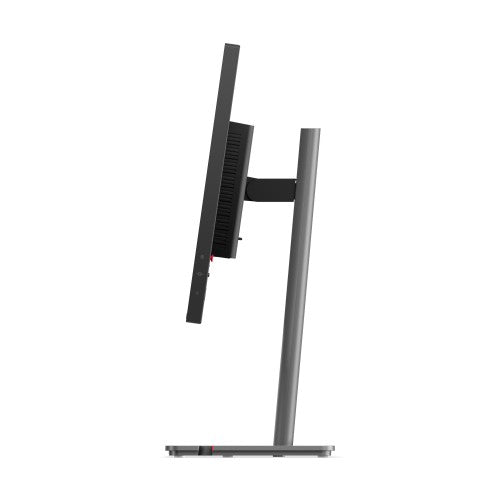

Offers Greater Wellness with Better ErgonomicsGet to your preferred seating position by lifting, tilting, pivoting, and swiveling the monitor using its full function LTPS stand.
Specifications
| Audio |
|---|
| Built-in speaker(s) |
No |
| Performance |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Low Blue Light technology |
Yes |
| Display |
|---|
| Display brightness (typical) |
300 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Pixel density |
123 ppi |
| Colour gamut |
99% |
| Maximum refresh rate |
120 Hz |
| sRGB coverage (typical) |
99% |
| HD type |
Quad HD |
| Display technology |
LCD |
| Contrast ratio (typical) |
1500:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00810 x 0.00810" (0.206 x 0.206 mm) |
| Viewable size, vertical |
20.7" (52.7 cm) |
| Viewable size diagonal |
11.7" (29.6 cm) |
| Backlight type |
W-LED |
| Display resolution |
2560 x 1440 pixels |
| Response time |
6 ms |
| Display diagonal |
23.8" |
| Response time (fast) |
4 ms |
| Touchscreen |
No |
| High Dynamic Range (HDR) supported |
Yes |
| Panel type |
IPS |
| Colour depth |
8 bit |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| LED backlight |
Yes |
| Colour gamut standard |
Rec. 709 |
| Anti-glare screen |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Power |
|---|
| Power cable length |
70.9" (1.8 m) |
| Power supply type |
Internal |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
210 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
16.5 W |
| Power consumption (off) |
0.3 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
D |
| Energy efficiency class (HDR) |
F |
| Energy consumption (SDR) per 1000 hours |
14 kWh |
| Energy consumption (HDR) per 1000 hours |
22 kWh |
| Design |
|---|
| Feet colour |
Black |
| Certification |
ENERGY STAR Certified,TCO 10.0, TCO Edge 2.1, EU Energy Efficiency Level (Level-D), EPEAT Gold
TÜV Rheinland Eye Comfort 5 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
| Product colour |
Black |
| Colour name |
Eclipse Black |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB upstream port type |
USB Type-B, USB Type-C |
| Number of upstream ports |
2 |
| USB Type-A downstream ports quantity |
4 |
| Headphone out |
No |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
2 |
| HDMI |
Yes |
| HDMI version |
2.1 |
| DisplayPort version |
1.4 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
140 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Number of USB Type-B upstream ports quantity |
1 |
| Number of USB Type-C upstream ports quantity |
1 |
| DisplayPort out quantity |
1 |
| DisplayPort out version |
1.4 |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Technical details |
|---|
| Height (without stand) |
12.4" (315.8 mm) |
| Depth (without stand) |
1.78" (45.3 mm) |
| Width (without stand) |
21.3" (539.8 mm) |
| Feet colour |
Black |
| Cable lock slot |
Yes |
| HDMI |
Yes |
| Product colour |
Black |
| Power supply type |
Internal |
| Weight (with stand) |
12.3 lbs (5.6 kg) |
| Touchscreen |
No |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt angle range |
-5 - 23.5° |
| Pivot |
Yes |
| Pivot angle |
-90 - 90° |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Adjustable height (max) |
6.1" (15.5 cm) |
| Weight & dimensions |
|---|
| Height (without stand) |
12.4" (315.8 mm) |
| Depth (without stand) |
1.78" (45.3 mm) |
| Width (without stand) |
21.3" (539.8 mm) |
| Width (with stand) |
21.3" (539.8 mm) |
| Depth (with stand) |
7.48" (190 mm) |
| Height (with stand) |
19.9" (505.8 mm) |
| Bezel width (side) |
0.0787" (2 mm) |
| Bezel width (top) |
0.0787" (2 mm) |
| Bezel width (bottom) |
0.453" (1.15 cm) |
| Weight (with stand) |
12.3 lbs (5.6 kg) |
| Weight (without stand) |
7.94 lbs (3.6 kg) |
| Package width |
28.7" (730 mm) |
| Package depth |
4.84" (123 mm) |
| Package height |
16.5" (420 mm) |
| Package weight |
18.5 lbs (8.4 kg) |
| Packaging data |
|---|
| Package width |
28.7" (730 mm) |
| Package depth |
4.84" (123 mm) |
| Package height |
16.5" (420 mm) |
| Package weight |
18.5 lbs (8.4 kg) |
| Stand included |
Yes |
| Power cable length |
70.9" (1.8 m) |
| Quick start guide |
Yes |
| Cables included |
DisplayPort, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C |
| DisplayPort cable length |
70.9" (1.8 m) |
| Packaging content |
|---|
| Stand included |
Yes |
| Power cable length |
70.9" (1.8 m) |
| Quick start guide |
Yes |
| Cables included |
DisplayPort, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C |
| DisplayPort cable length |
70.9" (1.8 m) |
| Other features |
|---|
| Certification |
ENERGY STAR Certified,TCO 10.0, TCO Edge 2.1, EU Energy Efficiency Level (Level-D), EPEAT Gold
TÜV Rheinland Eye Comfort 5 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Height (without stand) |
12.4" (315.8 mm) |
| Depth (without stand) |
1.78" (45.3 mm) |
| Width (without stand) |
21.3" (539.8 mm) |
| Power consumption (max) |
210 W |
| Quick start guide |
Yes |
| HDMI |
Yes |
| USB Power Delivery up to |
140 W |
| Energy efficiency scale |
A to G |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power supply type |
Internal |
| Power cable length |
70.9" (1.8 m) |
| Ethernet LAN |
Yes |
| Touchscreen |
No |
| USB Power Delivery (USB PD) |
Yes |
| Certificates |
|---|
| Certification |
ENERGY STAR Certified,TCO 10.0, TCO Edge 2.1, EU Energy Efficiency Level (Level-D), EPEAT Gold
TÜV Rheinland Eye Comfort 5 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
