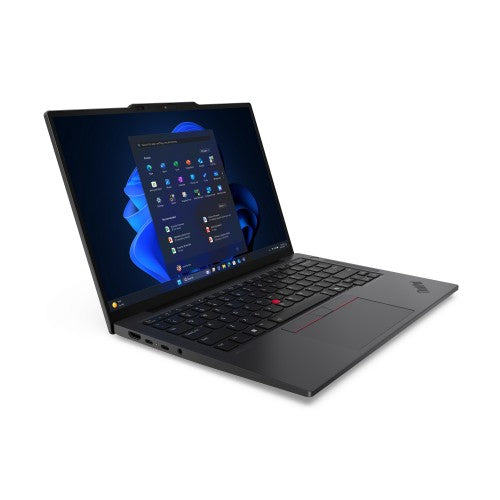

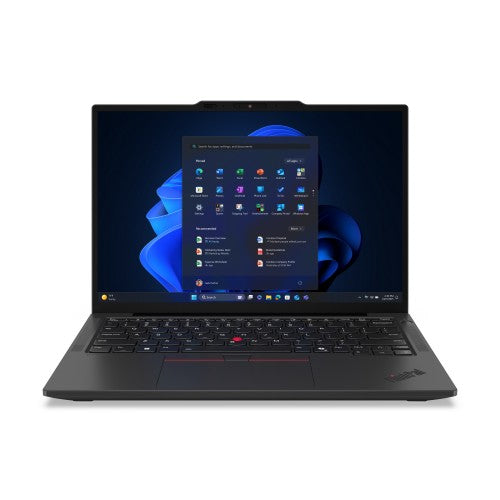

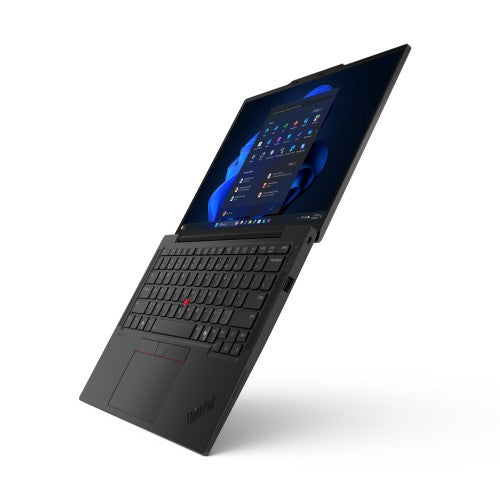

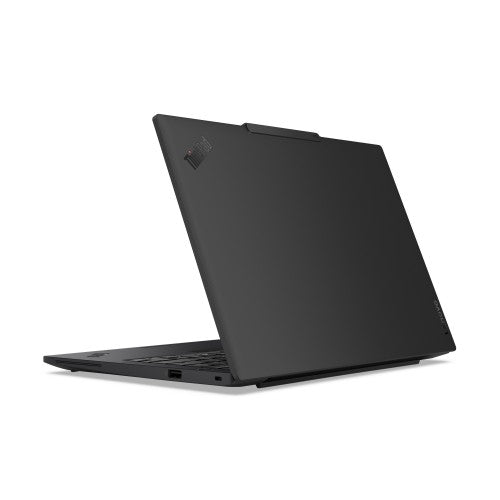

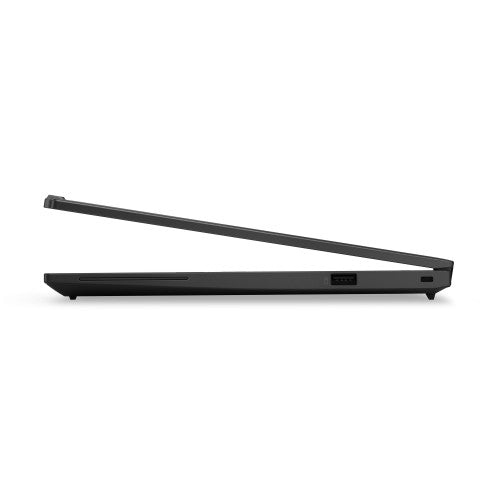

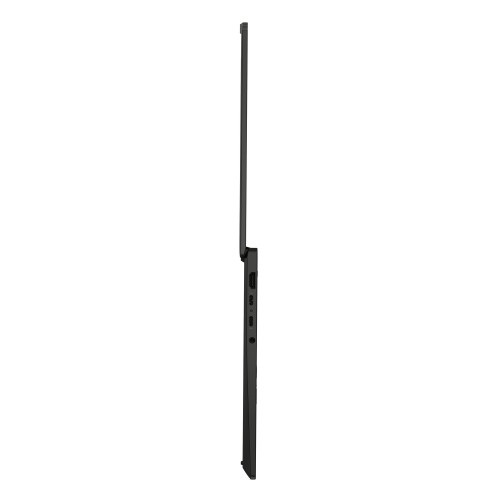

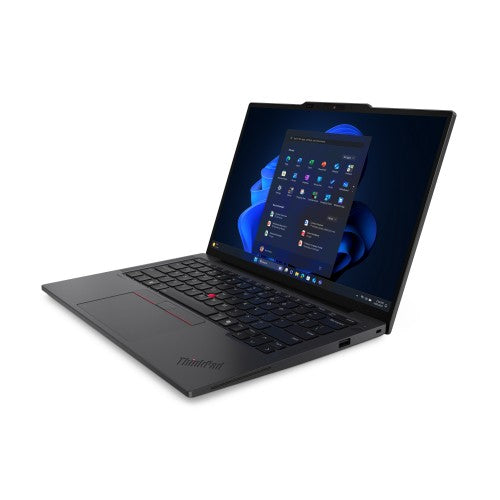

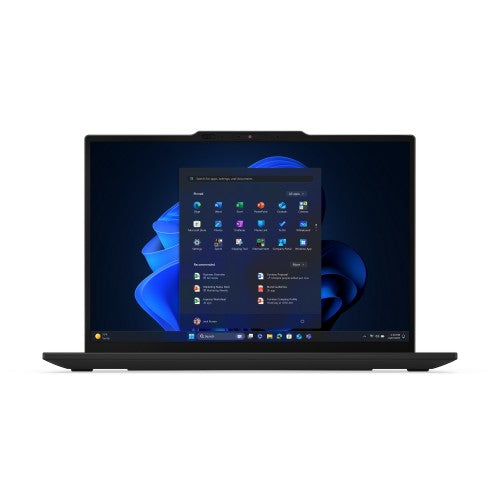

Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB, 16GB LPDDR5x-8400, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 13.3" WUXGA (1920x1200) IPS 400nits 100% sRGB, Intel Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, 5.0MP + IR Discrete with Privacy Shutter, Computer Vision on ISP, Windows 11 Pro
Key Features
- Intel Core Ultra 5 225U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB
- 13.3" WUXGA (1920x1200) IPS 400nits 100% sRGB
- 16GB LPDDR5x-8400
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel Graphics
- Windows 11 Pro
Description
ThinkPad X13 G6, Intel Core Ultra 5 225U (E-cores up to 3.80GHz, 12MB), 13.3" WUXGA Non-Touch, W11P64 US/UK_ENG, 16.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel Graphics, BT 5.3, Wi-Fi 6E AX211, No Wired Ethernet, FPR, 5MP RGB, 4Cell Li-Pol 54.7Wh, 65W, 1CourierCarryin, Backlit, Black-English (US)
Specifications
| Design |
|---|
| Product type |
Laptop |
| Housing material |
Aluminum |
| Form factor |
Clamshell |
| Product colour |
Black |
| Display |
|---|
| HD type |
WUXGA |
| Panel type |
IPS |
| LED backlight |
Yes |
| Display brightness |
400 cd/m² |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
13.3" |
| Anti-glare screen |
Yes |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Native aspect ratio |
16:10 |
| Processor |
|---|
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor cache |
12 MB |
| Processor model |
225U |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
12 |
| Processor threads |
14 |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 5 |
| Processor base power |
15 W |
| Maximum turbo power |
57 W |
| Efficient-core base frequency |
1.3 GHz |
| Performance-core base frequency |
1.5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Performance cores |
2 |
| Efficient cores |
8 |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Low Power Efficient-core Max Turbo Frequency |
2.4 GHz |
| Low Power Efficient-cores |
2 |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Memory |
|---|
| Memory form factor |
On-board |
| Internal memory |
16 GB |
| Internal memory type |
LPDDR5x-SDRAM |
| Memory clock speed |
8400 MHz |
| Maximum internal memory |
16 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| Storage media |
SSD |
| Optical drive type |
No |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| SSD interface |
PCI Express 4.0 |
| Card reader integrated |
No |
| Total storage capacity |
512 GB |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Graphics |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel Graphics |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| Audio |
|---|
| Audio chip |
Realtek ALC3287 |
| Number of microphones |
2 |
| Number of built-in speakers |
2 |
| Speaker power |
2 W |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera resolution (numeric) |
5 MP |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Infrared (IR) camera |
Yes |
| Windows Hello |
Yes |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Near Field Communication (NFC) |
No |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
No |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| WWAN |
Not installed |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB Sleep-and-Charge |
Yes |
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Combo headphone/mic port |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Pointing device |
ThinkPad UltraNav |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Software |
|---|
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Technical details |
|---|
| Housing material |
Aluminum |
| Form factor |
Clamshell |
| Product colour |
Black |
| Battery |
|---|
| Battery capacity |
54.7 Wh |
| Power |
|---|
| AC adapter power |
65 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Windows Hello |
Yes |
| Smart card reader |
No |
| Trusted Platform Module (TPM) version |
2.0 |
| Certificates |
|---|
| Certification |
ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight & dimensions |
|---|
| Width |
11.8" (299.3 mm) |
| Depth |
8.15" (207 mm) |
| Height (front) |
0.402" (1.02 cm) |
| Height (rear) |
0.524" (1.33 cm) |
| Weight |
33.9 oz (962 g) |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Other features |
|---|
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| On-board graphics card |
Yes |
| AC adapter included |
Yes |
| Anti-glare screen |
Yes |
