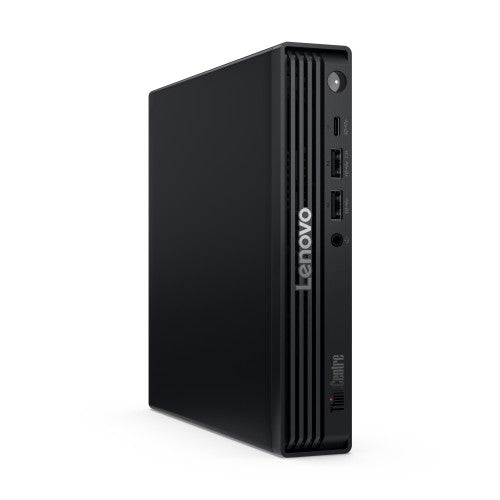

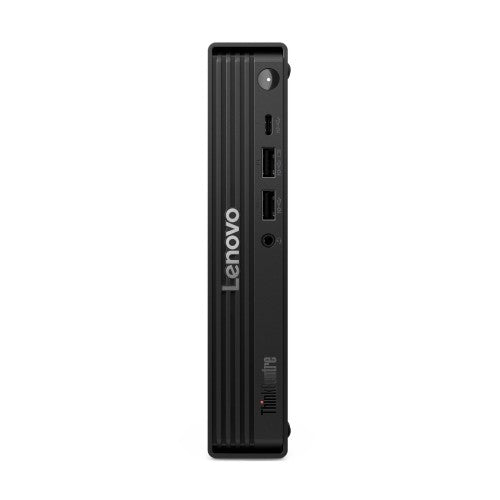

Lenovo ThinkCentre M70q Gen 6 Intel Core Ultra 5 225T 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black

Intel Core Ultra 5 225T (20MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 5 225T (20MB Cache)
• 32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD

Description

ENSURED PRODUCTIVITY FOR PROFESSIONALS
AI-Assisted Performance

Supercharge your workflow with the ThinkCentre M70q Gen 6 Tiny PC. Powered by Intel® Core™ Ultra processors, it features Intel vPro® for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine allocates workloads between CPU, GPU, and NPU for peak performance. Plus, WiFi 7 ensures blazing-fast connectivity.

BIG POWER & FLEXIBILITY
Multitask Like a Pro

Enjoy unmatched productivity with faster USB speeds and multiple ports. Connect the ThinkCentre M70q Tiny PC to up to four displays to power through tasks with vast memory and expandable storage. With an optional USB-C® (Thunderbolt™ 4) port and Neural Processing Unit (NPU), enhance hybrid and digital workplace expansion for a broadened ecosystem.

ALL-AROUND SAFETY IN PLACE
Robust Security & Manageability

This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with a self-healing BIOS, dTPM chip, Kensington Security Slot™, and Smart USB Protection. Choose Intel vPro® security for advanced threat protection while securing your data and business with ThinkCentre Customization.

DURABILITY YOU CAN RELY ON
Intentional Engineering to Boost Efficiency

This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With TüV anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	20 MB
Processor model	225T
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.9 GHz
Processor threads	10
Processor cores	10
Processor family	Intel Core Ultra 5
Performance cores	6
Efficient cores	4
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.9 GHz
Processor base power	35 W
Maximum turbo power	114 W
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core Max Turbo Frequency	4.9 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	23 TOPs
NPU performance up to	13 TOPs
GPU performance up to	4 TOPs
Memory
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory channels	Single-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	1 TB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1 TB
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Graphics
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Wake-on-LAN ready	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM

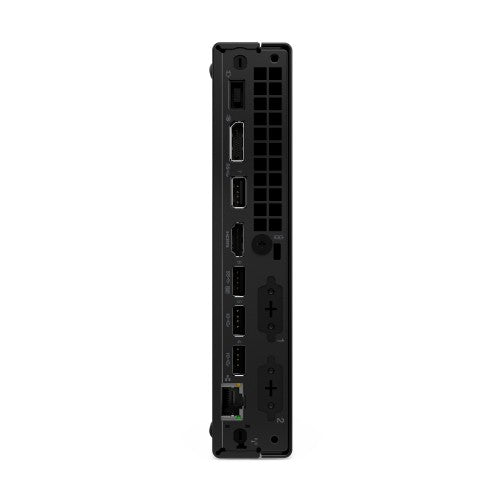

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI port	Yes
DisplayPorts quantity	2
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q870
Sustainability certificates	ENERGY STAR, TCO
Compliance certificates	RoHS
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Colour name	Raven black
Performance
Password protection	Yes
Password protection type	BIOS, HDD, Power on, Supervisor
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q870
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	No
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Power
Power supply	90 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, TCO
Weight & dimensions
Volume	1 L
Package width	9.84" (250 mm)
Package depth	19.3" (490 mm)
Package height	5.04" (128 mm)
Width	7.05" (179 mm)
Depth	7.2" (182.9 mm)
Height	1.44" (36.5 mm)
Package weight	7.05 lbs (3.2 kg)
Weight	2.6 lbs (1.18 kg)
Packaging data
Package width	9.84" (250 mm)
Package depth	19.3" (490 mm)
Package height	5.04" (128 mm)
Package weight	7.05 lbs (3.2 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
