Intel Core Ultra 7 265 (30MB Cache), 32GB DDR5-SDRAM, 512GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro
Key Features
- Windows 11 Pro
- Intel Core Ultra 7 265 (30MB Cache)
- 32GB (6400MHz) DDR5-SDRAM (1 x 32) & 512GB SSD
Description

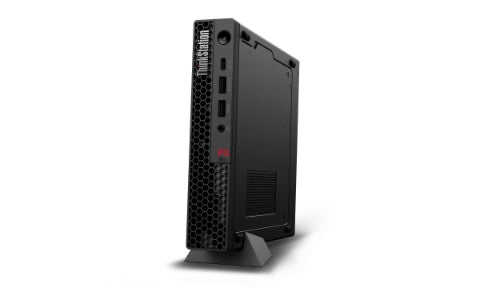

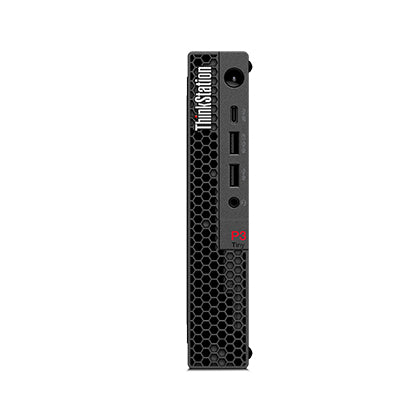

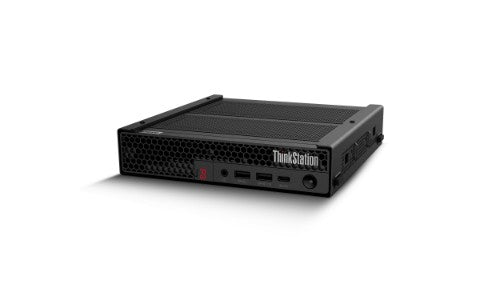

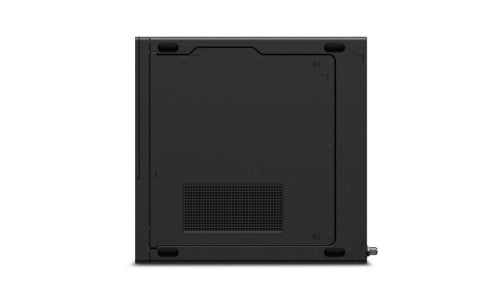

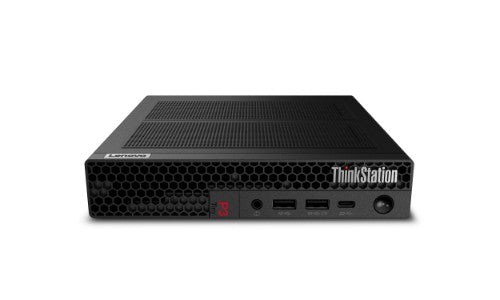

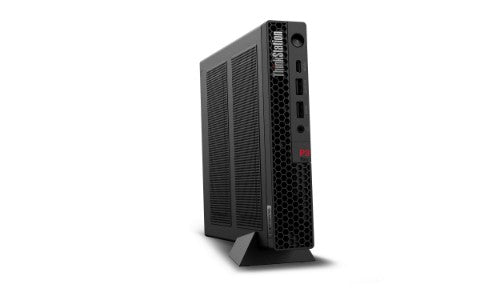

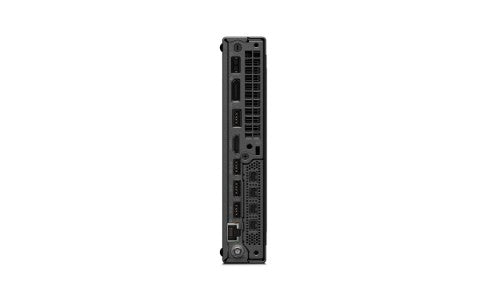

LENOVO THINKSTATION P3 TINY GEN 2
Big Performance From a Tiny WorkstationEngineered to go where others can’t, the ThinkStation P3 Tiny Gen 2 workstation offers uncompromising performance while being 96% smaller than a traditional desktop. At 1L in volume, the industry’s smallest workstation combines the power of Intel® Core™ Ultra (Series 2) with Intel vPro® processors and NVIDIA RTX™ graphics in a simple, efficient design.
Accelerate AI Workflows with Integrated NPU and Professional GraphicsThe built-in NPU, CPU, and iGPU deliver up to 36 TOPS for AI inferencing, while NVIDIA RTX™ A1000 graphics adds another 108 TOPS for advanced ray tracing and AI acceleration to enhance compute tasks. Together, they provide a dependable solution for tasks like computer vision, real-time data insights, and more — right at your desk or on location.
CREDIBILITY & COLLABORATION
SustainabilityOur goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications
| Processor |
|---|
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor cache type |
Smart Cache |
| Processor cache |
30 MB |
| Processor model |
265 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
5.3 GHz |
| Processor threads |
20 |
| Processor cores |
20 |
| Processor family |
Intel Core Ultra 7 |
| Performance cores |
8 |
| Efficient cores |
12 |
| Performance-core base frequency |
2.4 GHz |
| Efficient-core base frequency |
1.8 GHz |
| Processor base power |
65 W |
| Maximum turbo power |
182 W |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Performance-core Max Turbo Frequency |
5.2 GHz |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to |
33 TOPs |
| NPU performance up to |
13 TOPs |
| GPU performance up to |
8 TOPs |
| Memory |
|---|
| Internal memory |
32 GB |
| Memory layout (slots x size) |
1 x 32 GB |
| Maximum internal memory |
128 GB |
| Memory slots |
2x SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
6400 MHz |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Storage media |
SSD |
| Optical drive type |
No |
| SSD interface |
PCI Express 5.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total storage capacity |
512 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| HDMI version |
2.1 |
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Audio system |
High Definition Audio |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel Q870 |
| Design |
|---|
| Volume |
1 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Cable lock slot |
Yes |
| Performance |
|---|
| Audio chip |
Realtek ALC233VB |
| Number of speakers |
1 |
| Password protection |
Yes |
| Password protection type |
BIOS, Power on, HDD |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Built-in speaker(s) |
Yes |
| Motherboard chipset |
Intel Q870 |
| Software |
|---|
| Operating system language |
English |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply |
230 W |
| Operational conditions |
|---|
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
5 - 35 °C |
| Non-operating altitude |
0 - 480000" (0 - 12192 m) |
| Certificates |
|---|
| Certification |
RoHS compliant
TCO Certified, generation 10 |
| Weight & dimensions |
|---|
| Volume |
1 L |
| Width |
7.05" (179 mm) |
| Depth |
7.2" (182.9 mm) |
| Height |
1.46" (37 mm) |
| Weight |
3.09 lbs (1.4 kg) |
| Packaging content |
|---|
| Mouse included |
Yes |
| Display included |
No |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard connectivity |
Wired |
| Display |
|---|
| Display included |
No |
| Other features |
|---|
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
| Built-in speaker(s) |
Yes |
