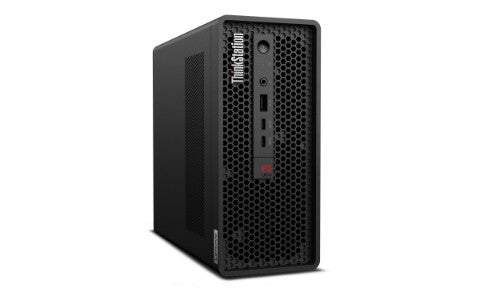

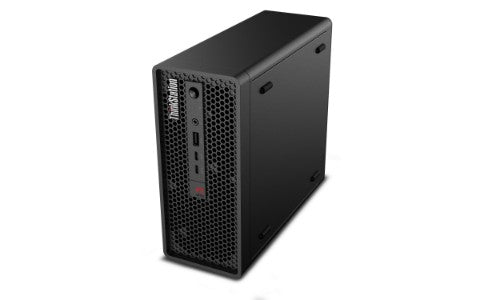

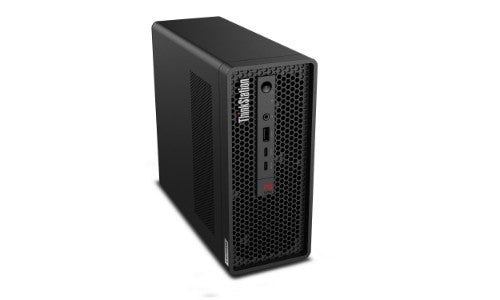

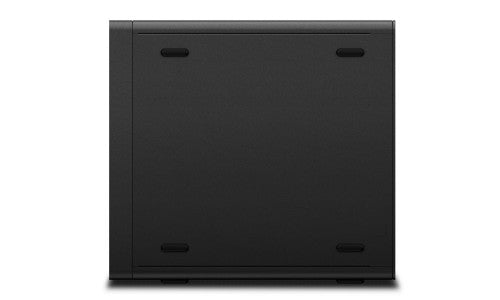

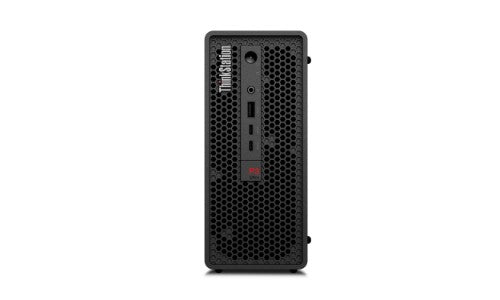

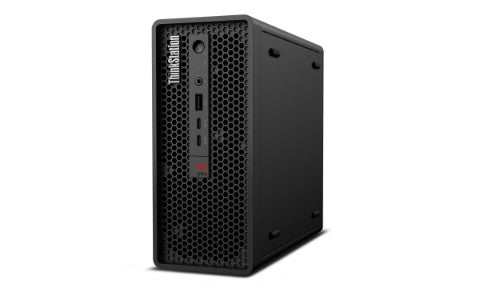

Lenovo ThinkStation P3 Ultra SFF Gen 2 Intel Core Ultra 9 285 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A1000 Windows 11 Pro Mini Tower Workstation Black

Intel Core Ultra 9 285 (36MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, NVIDIA RTX A1000 (8GB GDDR6), LAN, WLAN, Bluetooth, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 9 285 (36MB Cache)
• NVIDIA RTX A1000 (8GB GDDR6)
• 32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD

Description

LENOVO THINKSTATION P3 ULTRA SFF GEN 2
Redefining the Power of Small
Experience extraordinary performance in an intelligently compact design. Powered by Intel® Core™ Ultra (Series 2) processors with Intel vPro®, with integrated NPU and NVIDIA RTX™ graphics, this workstation breaks new ground by delivering AI-optimized performance and ultimate flexibility in a chassis less than 4L in total volume.

POWERFUL COMBINED AI ACCELERATION
Experience AI-Enhanced Productivity, Creativity & Security
The ThinkStation P3 Ultra SFF Gen 2 workstation combines an integrated Intel® NPU with NVIDIA RTX™ 4000 SFF Ada Generation graphics for unparalleled AI inferencing — totalling up to 335 TOPS of AI horsepower with the CPU and GPU. Handle everything from deep learning models to real-time analytics without sacrificing space or energy efficiency.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	36 MB
Processor model	285
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	5.6 GHz
Processor threads	24
Processor cores	24
Processor family	Intel Core Ultra 9
Performance cores	8
Efficient cores	16
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.9 GHz
Processor base power	65 W
Maximum turbo power	182 W
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Non-ECC	Yes
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	128 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	1 TB
Number of SSDs installed	1
Total storage capacity	1 TB
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
Graphics card Mini DisplayPort ports quantity	4
On-board graphics card family	Intel Graphics
On-board graphics card	Yes
Discrete graphics card model	NVIDIA RTX A1000
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Graphics
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN data rates	10,100,1000 Mbit/s
WLAN controller model	Intel Wi-Fi 7 BE200
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	3
USB 3.2 Gen 2x2 Type-C ports quantity	2
Technical details
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini Tower
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel W880
Compliance certificates	RoHS
Design
Volume	3.9 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini Tower
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Password protection	Yes
Password protection type	BIOS, Power on
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel W880
Trusted Platform Module (TPM) version	2.0
Software
Operating system language	ENG-UK, US English
Bundled software	Lenovo AI Now
Operating system installed	Windows 11 Pro
Power
Power supply input voltage	100 - 240 V
Power supply	330 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	TCO Certified, generation 10 MIL-STD-810H
Compliance certificates	RoHS
Weight & dimensions
Volume	3.9 L
Width	3.43" (87 mm)
Depth	8.78" (223 mm)
Height	7.95" (202 mm)
Weight	7.94 lbs (3.6 kg)
Packaging content
Bundled software	Lenovo AI Now
Mouse included	Yes
Display included	No
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
