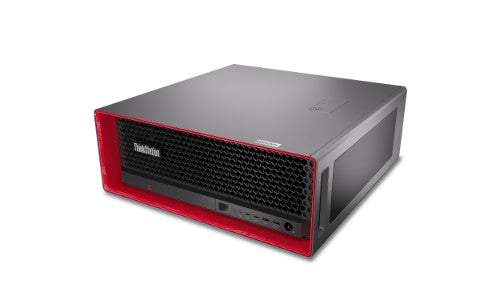

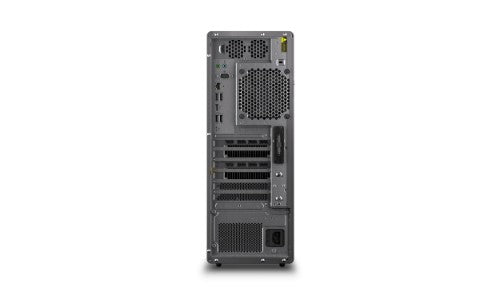

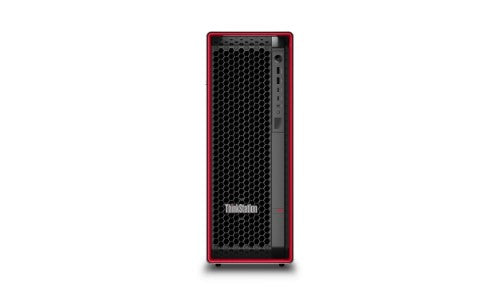

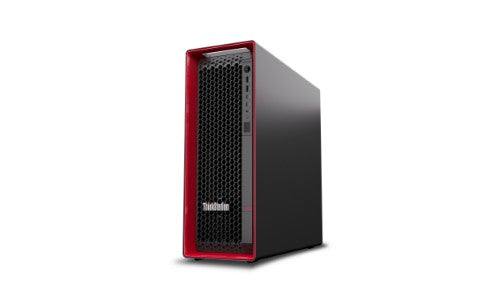

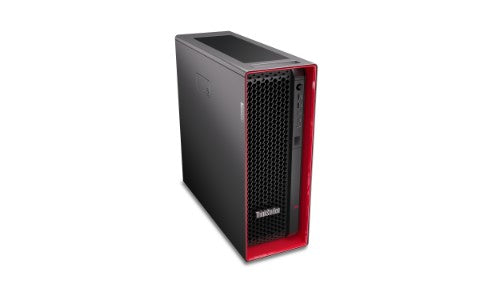

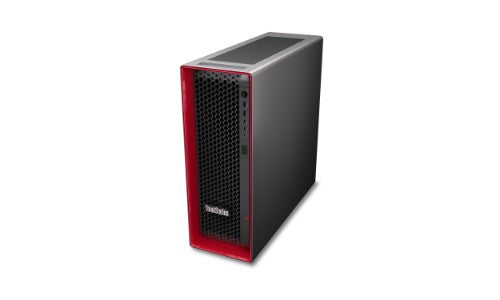

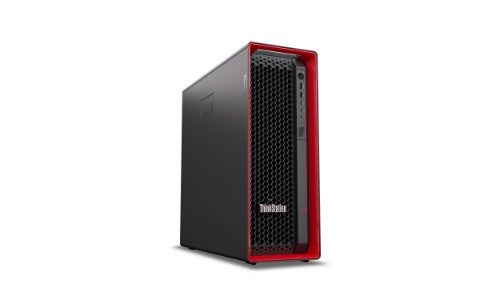

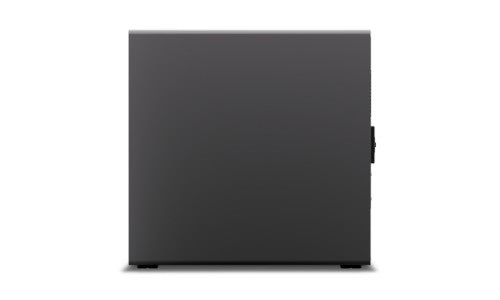

Intel Xeon w3-2435 (22.5MB Cache, 3.1GHz), 64GB DDR5-SDRAM, 2000GB SSD, NVIDIA RTX 2000 Ada (16GB GDDR6), LAN, WLAN, Bluetooth, Windows 11 Pro for Workstations
Key Features
- Windows 11 Pro for Workstations
- Intel Xeon w3-2435 (22.5MB Cache, 3.1GHz)
- NVIDIA RTX 2000 Ada (16GB GDDR6)
- 64GB (4800MHz) DDR5-SDRAM (4 x 16) & 2000GB SSD
Description
The next-gen workstation has arrivedEngineered for ultimate productivity and versatility, the Lenovo ThinkStation P5 is the all-around industry workhorse for professionals that demand a scalable, future-proof workstation. Optimized for designers, engineers, and creatives alike, it can support a broad range of compute-intensive tasks with ease, including BIM, complex 3D CAD, VFX, and edge deployments.
Extraordinary performance, power, & speedWith its Aston Martin-inspired chassis design and advanced thermals, the ThinkStation P5 workstation is designed to achieve groundbreaking performance. Key features include the latest Intel® Xeon® W processors, delivering a breakthrough new compute architecture, and support for up to two optional NVIDIA® RTX™ graphics cards, offering unprecedented rendering and AI performance. The result? Enough punch for any workflow, even in mission-critical environments.
Tried, tested, & trueThe ThinkStation P5 workstation has been proven to meet Lenovo's exacting reliability and durability standards, ensuring that your systems leverage maximum uptime. It also boasts an array of independent software vendor (ISV) certifications, so compute-intensive applications, such as Adobe® and PTC®, are tuned to run seamlessly on even the most complex of tasks.
See the complete list of ISV certifications.
A future-proof machineWith high-speed DDR5 memory and ultra-fast PCIe storage, the ThinkStation P5 workstation is designed to improve your productivity. It also has the convenience of front drive access, hot-swap storage, tool-less chassis access, and an array of high-performance configurations. As a result, you can enjoy the flexibility of customizing your P5 to tackle your workload needs of today, knowing you can easily upgrade for the ever-increasing datasets of tomorrow.
One less thing to worry aboutThe ThinkStation P5 comes with ThinkShield—a suite of essential hardware and software security solutions that work together to protect your workstation and data. Trusted Platform Module (TPM) encrypts your data, while ensuring that your machine has not been tampered with. There are also various programs to prevent unauthorized access to the BIOS—and even self-heal the BIOS should it become corrupted or is maliciously attacked.
Specifications may vary depending upon region / model.
Specifications
| Processor |
|---|
| Processor cache type |
Smart Cache |
| Processor cache |
22.5 MB |
| Processor frequency |
3.1 GHz |
| Processor model |
w3-2435 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
16 |
| Processor cores |
8 |
| Processor family |
Intel Xeon W |
| Performance cores |
8 |
| Efficient cores |
0 |
| Processor base power |
165 W |
| Maximum turbo power |
198 W |
| Memory |
|---|
| Internal memory |
64 GB |
| Memory layout (slots x size) |
4 x 16 GB |
| Maximum internal memory |
512 GB |
| Memory slots |
8x DIMM |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
4800 MHz |
| Memory channels |
Quad-channel |
| Storage |
|---|
| Storage media |
SSD |
| Optical drive type |
No |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
2 TB |
| Number of SSDs installed |
1 |
| Total storage capacity |
2 TB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
2 TB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
Yes |
| Discrete graphics card memory |
16 GB |
| On-board graphics card |
No |
| Discrete graphics card model |
NVIDIA RTX 2000 Ada |
| Discrete graphics memory type |
GDDR6 |
| On-board graphics card model |
Not available |
| Number of discrete graphics cards |
1 |
| Discrete GPU manufacturer |
NVIDIA |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Thunderbolt 3 ports quantity |
0 |
| USB 2.0 ports quantity |
2 |
| Line-out |
Yes |
| Line-in |
Yes |
| HDMI ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black, Red |
| Chassis type |
Tower |
| Audio system |
High Definition Audio |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel W790 |
| Compliance certificates |
RoHS |
| Design |
|---|
| Volume |
33 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black, Red |
| Chassis type |
Tower |
| Cable lock slot |
Yes |
| Performance |
|---|
| BIOS type |
UEFI |
| Audio chip |
Realtek ALC897-Q |
| Number of speakers |
1 |
| Password protection |
Yes |
| Password protection type |
BIOS, Power on |
| Product type |
Workstation |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Built-in speaker(s) |
Yes |
| Motherboard chipset |
Intel W790 |
| Trusted Platform Module (TPM) version |
2.0 |
| Software |
|---|
| Operating system language |
English |
| Operating system installed |
Windows 11 Pro for Workstations |
| Power |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply |
1000 W |
| Operational conditions |
|---|
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
5 - 35 °C |
| Non-operating altitude |
0 - 480000" (0 - 12192 m) |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Volume |
33 L |
| Width |
6.5" (165 mm) |
| Depth |
17.9" (453.9 mm) |
| Height |
17.6" (446 mm) |
| Weight |
41.9 lbs (19 kg) |
| Packaging content |
|---|
| Mouse included |
Yes |
| Display included |
No |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard connectivity |
Wired |
| Display |
|---|
| Display included |
No |
| Other features |
|---|
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
No |
| Processor manufacturer |
Intel |
| Built-in speaker(s) |
Yes |
