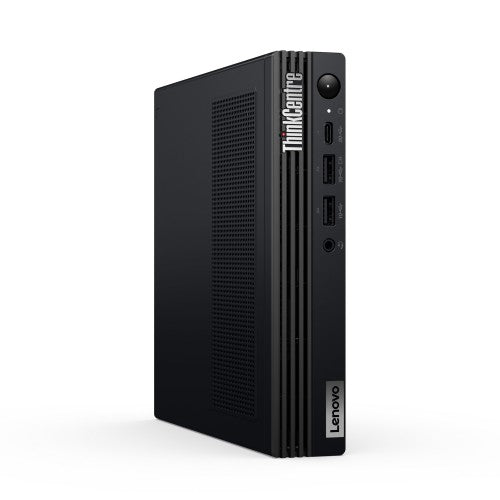

Intel Core i5-14500, 14C (6P + 8E)/20T, P-core 2.6/5.0GHz, E-core 1.9/3.7GHz, 24MB, 1x 16GB SO-DIMM DDR5-4800, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics 770, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3 vPro, Windows 11 Pro
Key Features
- Intel Core i5-14500, 14C (6P + 8E)/20T, P-core 2.6/5.0GHz, E-core 1.9/3.7GHz, 24MB
- 1x 16GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel UHD Graphics 770
- Windows 11 Pro
Description
Performance-Driven, Productivity PerfectedFueled by Intel® Core™ processor with up to Intel vPro® Enterprise, the ThinkCentre M90q Gen 5 Tiny PC delivers enterprise-grade performance, security, manageability, and reliability — managing businesses of all sizes while boosting productivity, creative output, and digital collaborations with vast memory, storage, and up to WiFi 7.
Workspace Efficiency RedefinedConnect to multiple peripherals via a hub of ports, and enable customization with optional expansion slots such as VGA / DisplayPort / HDMI® / Ethernet (RJ45) / USB-C®, etc. Charge your smartphone readily using the PowerShare USB, even with the PC powered off. Plus, multitask easily with support for up to four independent displays — the sky’s the limit.
Device Convenience ReimaginedWith a keyboard shortcut to turn on the desktop, and a quick boot-up process via the Thunder Boot feature, this ThinkCentre PC reflects ease of convenience, making it the perfect choice for modern workspaces. Plus, with Modern Standby, your system remains up-to-date even during sleep mode, and it wakes and connects instantly.
Ultimate PC Security EnabledOur ThinkShield security encrypts data via the discrete Trusted Platform Module (dTPM), while the self-healing BIOS restores earlier system settings. Secure your PC physically with the Kensington Security Slot™, and choose the Intel vPro® Enterprise platform for multilayer security like Intel® Hardware Shield to block cyberattacks and ransomware.
Effortless Upgrades, Easy MaintenanceAlong with a sleek design, the ThinkCentre M90q Gen 5 Tiny desktop is also ready for toolless upgrades, saving IT valuable time. The removable easy-to-clean dust shield assists with upkeep to extend the lifecycle. Plus, an AI-driven fan prevents overheating issues — keeping the system cool and efficient for all-day-long operations.
Future Forward, Future Ready The M90q Gen 5 uses 85% recycled post-consumer content acrylonitrile butadiene styrene plastics in the chassis. The packaging has 60% post-industry content (PIC), 30% ocean-bound plastic in the thermal shell and bag, and is certified by Forest Stewardship Council® (FSC). Plus, ENERGY STAR® 8.0 and TCO 9.0 ratings minimize energy costs.
Specifications
| Processor |
|---|
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor model |
i5-14500 |
| Number of processors installed |
1 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
5 GHz |
| Processor threads |
20 |
| Processor cores |
14 |
| Processor family |
Intel® Core™ i5 |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core base frequency |
2.6 GHz |
| Efficient-core base frequency |
1.9 GHz |
| Processor base power |
65 W |
| Maximum turbo power |
154 W |
| Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Memory |
|---|
| Internal memory |
16 GB |
| Memory layout (slots x size) |
1 x 16 GB |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
4800 MHz |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Optical drive type |
No |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Card reader integrated |
No |
| Total storage capacity |
512 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| HDMI version |
2.1 |
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
2 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Audio system |
High Definition Audio |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel Q670 |
| Design |
|---|
| Volume |
1 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Colour name |
Black |
| Performance |
|---|
| Audio chip |
Realtek ALC233 |
| Market positioning |
Everyday |
| Number of speakers |
1 |
| Password protection |
Yes |
| Password protection type |
BIOS, HDD, Power on, SSD, Supervisor |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Built-in speaker(s) |
Yes |
| Motherboard chipset |
Intel Q670 |
| Trusted Platform Module (TPM) version |
2.0 |
| Software |
|---|
| Operating system language |
English |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply |
135 W |
| Operational conditions |
|---|
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
5 - 35 °C |
| Non-operating altitude |
0 - 480000" (0 - 12192 m) |
| Certificates |
|---|
| Certification |
ErP Lot 3
RoHS compliant
TCO Certified 9.0
MIL-STD-810H |
| Weight & dimensions |
|---|
| Volume |
1 L |
| Package width |
19.3" (490 mm) |
| Package depth |
5.04" (128 mm) |
| Package height |
9.84" (250 mm) |
| Width |
7.05" (179 mm) |
| Depth |
7.2" (182.9 mm) |
| Height |
1.44" (36.5 mm) |
| Package weight |
6.28 lbs (2.85 kg) |
| Weight |
2.76 lbs (1.25 kg) |
| Packaging data |
|---|
| Package width |
19.3" (490 mm) |
| Package depth |
5.04" (128 mm) |
| Package height |
9.84" (250 mm) |
| Package weight |
6.28 lbs (2.85 kg) |
| Packaging content |
|---|
| Mouse included |
Yes |
| Display included |
No |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard connectivity |
Wired |
| Display |
|---|
| Display included |
No |
| Other features |
|---|
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
| Built-in speaker(s) |
Yes |
