SFF, AMD Ryzen 7 PRO 8700G, 1x 16 GB UDIMM DDR5, 512 GB SSD M.2, DVD±RW, 1W x1, TPM 2.0, PCIe 3.0, 3x M.2, AMD Radeon RX 6400 4GB GDDR6, Wi-Fi, Ethernet, Bluetooth, HDMI, DisplayPort, USB-C, USB-A, 3.5 mm, 310 W, 4.6 kg, Windows 11 Pro
Key Features
- Up to AMD Ryzen™ 7 PRO 8700G
- Up to Windows® 11 Pro
- Up to AMD Radeon™ RX 6400 4GB
- Up to 64GB DDR5, two DIMM slots
- Up to three drives, 1x 3.5" HDD + 2x M.2 SSD
Description
ThinkCentre M75s Gen 5Redefine business efficiency with the AI-capable ThinkCentre M75s Gen 5, encased in a sleek black chassis and powered by AMD Ryzen 7 PRO 8000G desktop processor. The high-performance integrated AMD Radeon graphics is capable of handling everyday workloads and workflows. The dual channel DDR5 up to 64GB memory allows users to seamlessly multitask, facilitating easy running of multiple applications or virtual machines concurrently. Robust in performance, this small form factor desktop adapts to any space, allowing horizontal or vertical placement.

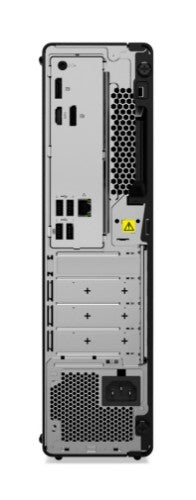

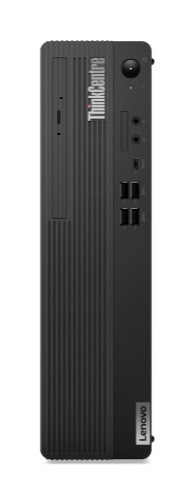

With native support for 10 USB ports, including 4 x USB 2.0, dual DisplayPort, HDMI 2.1, and a card reader, both the front and rear I/O ports enable effortless data transfer, power
delivery, and connectivity to surrounding devices and peripherals. Additionally, AMD Wi-Fi
6E ensures high-speed connections, even in areas with numerous competing Wi-Fi
networks.
Users dealing with large datasets or involved in content creation can enjoy lightning-fast
data transfers and exceptional multitasking efficiency, thanks to the device's up to 2TB
Gen 4 performance SSD storage. Plus, the SSD slots future-proof the desktop, ensuring
compatibility with upcoming storage technologies and meeting the evolving needs of
users.
From advanced AI-capable processors to multiple I/O ports, this 8.2L small form factor is
a perfect mix of onboarding premium design and features at an affordable price.
Specifications
| Processor |
|---|
| Processor generation |
AMD Ryzen PRO 8000 Series |
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
4.2 GHz |
| Processor model |
8700G |
| Processor manufacturer |
AMD |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
16 |
| Processor cores |
8 |
| Processor family |
AMD Ryzen™ 7 PRO |
| Memory |
|---|
| Non-ECC |
Yes |
| ECC |
No |
| Internal memory |
16 GB |
| Memory layout (slots x size) |
1 x 16 GB |
| Maximum internal memory |
64 GB |
| Memory slots |
2x DIMM |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5200 MHz |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Optical drive type |
DVD±RW |
| SSD interface |
PCI Express 4.0 |
| Number of SSDs installed |
1 |
| Card reader integrated |
No |
| Total storage capacity |
512 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
Yes |
| Graphics card HDMI ports quantity |
1 |
| Graphics card DisplayPorts quantity |
1 |
| Discrete graphics card memory |
4 GB |
| On-board graphics card family |
AMD Radeon |
| On-board graphics card |
Yes |
| Discrete graphics card model |
AMD Radeon RX 6400 |
| Discrete graphics memory type |
GDDR6 |
| On-board graphics card model |
AMD Radeon 780M |
| Number of discrete graphics cards |
1 |
| Discrete GPU manufacturer |
AMD |
| On-board GPU manufacturer |
AMD |
| Optical drive |
|---|
| Optical drive type |
DVD±RW |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| WLAN controller model |
Realtek RTL8852BE |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Realtek |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| HDMI version |
2.1 |
| USB 2.0 ports quantity |
4 |
| Microphone in |
Yes |
| Line-out |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
2 |
| M.2 card slot (wireless) |
1 |
| M.2 card slot (storage) |
2 |
| DisplayPort version |
1.4a |
| Expansion slots |
|---|
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
SFF |
| Audio system |
High Definition Audio |
| Number of 3.5" bays |
1 |
| Cable lock slot |
Yes |
| Motherboard chipset |
AMD PRO 665 |
| Sustainability certificates |
ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO |
| Compliance certificates |
RoHS |
| Design |
|---|
| Volume |
8.2 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
SFF |
| Number of 3.5" bays |
1 |
| Cable lock slot |
Yes |
| Colour name |
Black |
| Performance |
|---|
| Audio chip |
Realtek ALC623-CG |
| Number of speakers |
1 |
| Password protection |
Yes |
| Password protection type |
HDD, Power on, Supervisor |
| Product type |
PC |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Built-in speaker(s) |
Yes |
| Motherboard chipset |
AMD PRO 665 |
| Trusted Platform Module (TPM) version |
2.0 |
| Software |
|---|
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50/60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
310 W |
| Operational conditions |
|---|
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
5 - 35 °C |
| Non-operating altitude |
0 - 480000" (0 - 12192 m) |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO |
| Weight & dimensions |
|---|
| Volume |
8.2 L |
| Package width |
7.68" (195 mm) |
| Package depth |
15.6" (395 mm) |
| Package height |
20.9" (530 mm) |
| Width |
3.64" (92.5 mm) |
| Depth |
11.7" (297.7 mm) |
| Height |
13.4" (339.5 mm) |
| Package weight |
16.5 lbs (7.5 kg) |
| Weight |
10.1 lbs (4.6 kg) |
| Packaging data |
|---|
| Package width |
7.68" (195 mm) |
| Package depth |
15.6" (395 mm) |
| Package height |
20.9" (530 mm) |
| Package weight |
16.5 lbs (7.5 kg) |
| Packaging content |
|---|
| Mouse included |
Yes |
| Display included |
No |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard connectivity |
Wired |
| Other features |
|---|
| Number of speakers |
1 |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
AMD |
| Built-in speaker(s) |
Yes |
