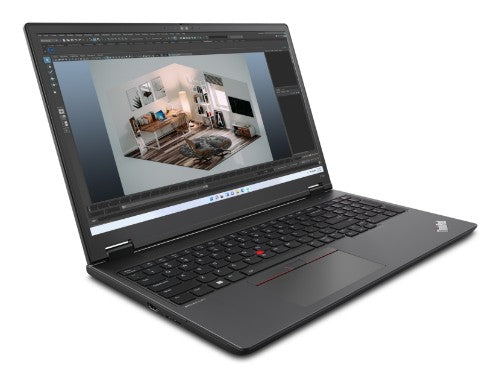

16" WUXGA, IPS, Intel Core Ultra 7 155H, 2x 16 GB SO-DIMM DDR5-5600 Non-ECC, 1 TB SSD, 2W x2, 5.0 MP+IR, TPM 2.0, SD Express 7.0, Integrated Intel Arc Graphics, Wi-Fi 6E AX211, Ethernet, Bluetooth, HDMI, Thunderbolt 4, USB, Windows 11 Pro, English
Key Features
- Up to Intel® Core™ Ultra 9 185H
- Up to Windows® 11 Pro
- Up to NVIDIA® RTX 3000 Ada Generation Laptop GPU
- Up to 16.0" WQUXGA (3840x2400) IPS, 800nits, 100% DCI-P3, TÜV Low Blue Light, Eyesafe® Certified 2.0, X-Rite® Factory Color Calibration, Dolby Vision®, DisplayHDR™ 400
Description
ThinkPad P16v Gen 2The all-new ThinkPad P16v Gen 2 balances extreme power, optimum portability and seamless user experience to accelerate workflows. The Intel® Core™ Ultra H Series processor marries productivity and experiential wow of AI without the worry of performance lags and battery drain. The optional NVIDIA® RTX graphics boosts your creation- from editing high-resolution videos to running complex AI simulations. An impressive 90Wh battery and Rapid Charge support elevates productivity, while the MIL-SPEC durability shields it from the everyday knocks and bumps.
Let your imagination run wild on the stunning WUXGA IPS screen that presents clear, pixel-sharp images every time without fail. The cinema-grade 100% DCI-P3 color gamut makes your visuals appear vivid, color-corrected and more life-like. The TÜV Low Blue Light certification ensures flicker-free display and reduced eye strain during long hours at work.
With ample up to 96GB DDR5 memory, users can run heavy datasets, spreadsheets and multiple resource-intensive applications simultaneously without experiencing significant slowdowns or performance bottlenecks. Plus, the up to 4TB SSD storage offers quicker loading times for statistical software applications
Intel® Arc Graphics and NVIDIA RTX Graphics offer substantial graphics processing power, which is crucial for tasks such as rendering 3D models, applying complex filters and effects, and handling high-resolution images. This enables Photoshop users to work with intricate designs and detailed images without experiencing lag or slowdowns.
Specifications
| Design |
|---|
| Colour name |
Black |
| Product type |
Mobile workstation |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor |
Clamshell |
| Product colour |
Black |
| Display |
|---|
| HD type |
WUXGA |
| Panel type |
IPS |
| LED backlight |
Yes |
| Display brightness |
400 cd/m² |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
16" |
| Anti-glare screen |
Yes |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Native aspect ratio |
16:10 |
| Low Blue Light technology |
Yes |
| Processor |
|---|
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor model |
155H |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
16 |
| Processor threads |
22 |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Performance cores |
6 |
| Efficient cores |
8 |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-cores |
2 |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Maximum frequency NPU |
1.4 GHz |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI datatype support on NPU |
FP16, FP32, Int8 |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory |
|---|
| ECC |
No |
| Memory form factor |
SO-DIMM |
| Internal memory |
32 GB |
| Memory layout (slots x size) |
2 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
96 GB |
| Memory channels |
Dual-channel |
| Non-ECC |
Yes |
| Memory data transfer rate |
5600 MT/s |
| Storage |
|---|
| SSD form factor |
M.2 |
| Storage media |
SSD |
| Optical drive type |
No |
| Number of SSDs installed |
1 |
| SSD capacity |
1 TB |
| SSD interface |
PCI Express 4.0 |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD |
| Total storage capacity |
1 TB |
| Total SSDs capacity |
1 TB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Arc Graphics |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel Arc Graphics |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| Audio |
|---|
| Audio chip |
Realtek ALC3287 |
| Number of microphones |
2 |
| Audio system |
High Definition Audio |
| Number of built-in speakers |
2 |
| Speaker power |
2 W |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Infrared (IR) camera |
Yes |
| Windows Hello |
Yes |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Near Field Communication (NFC) |
No |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB Sleep-and-Charge |
Yes |
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| USB4 Gen 3x2 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Pointing device |
ThinkPad UltraNav |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
English |
| Software |
|---|
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Technical details |
|---|
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor |
Clamshell |
| Product colour |
Black |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, TCO |
| Compliance certificates |
RoHS, TÜV mark |
| Battery |
|---|
| Battery technology |
Lithium Polymer (LiPo) |
| Battery capacity |
90 Wh |
| Power |
|---|
| AC adapter power |
135 W |
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Windows Hello |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Certificates |
|---|
| Compliance certificates |
RoHS, TÜV mark |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions |
|---|
| Width |
14.4" (365 mm) |
| Depth |
10.3" (262 mm) |
| Height |
0.971" (24.7 mm) |
| Weight |
4.89 lbs (2.22 kg) |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Other features |
|---|
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| On-board graphics card |
Yes |
| Audio system |
High Definition Audio |
| AC adapter included |
Yes |
| Anti-glare screen |
Yes |
