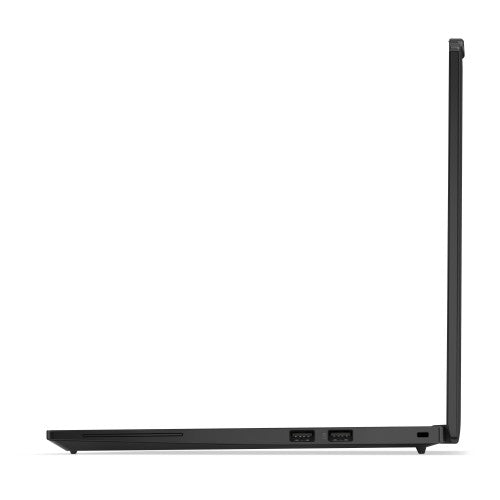

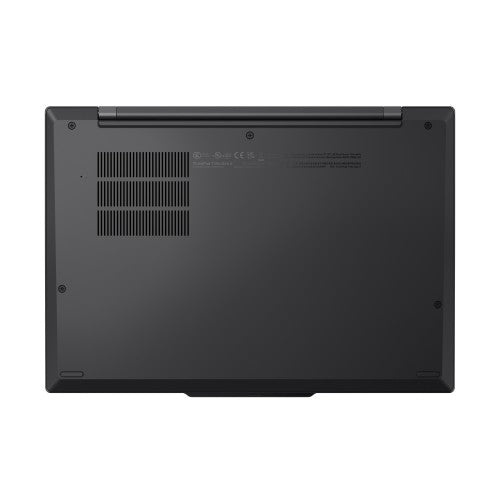

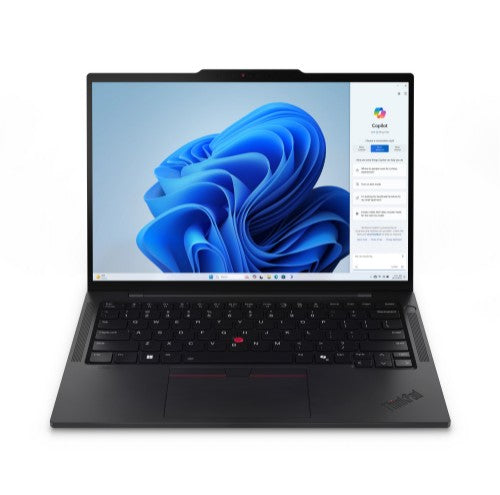

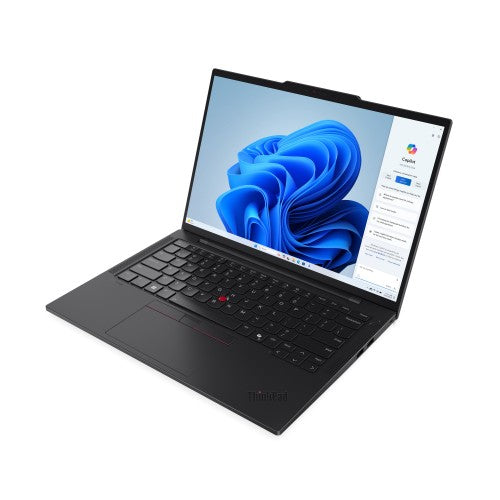

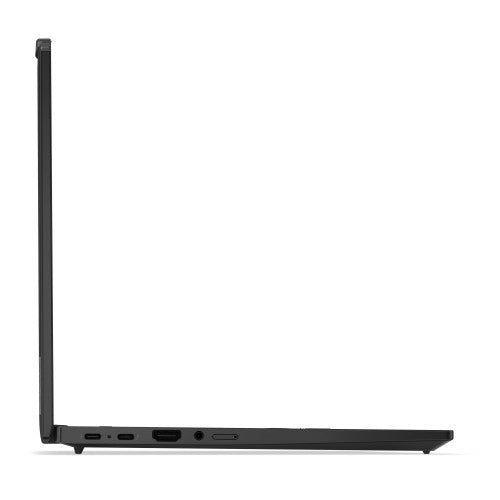

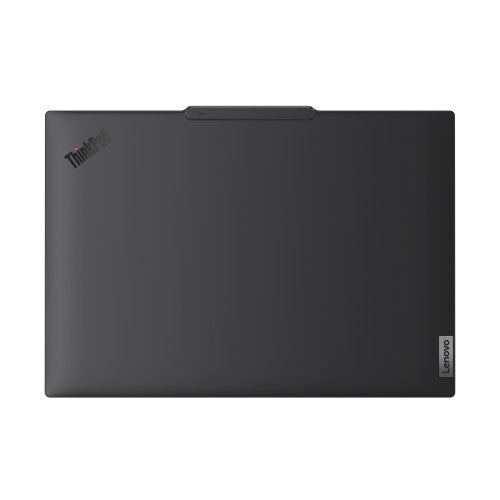

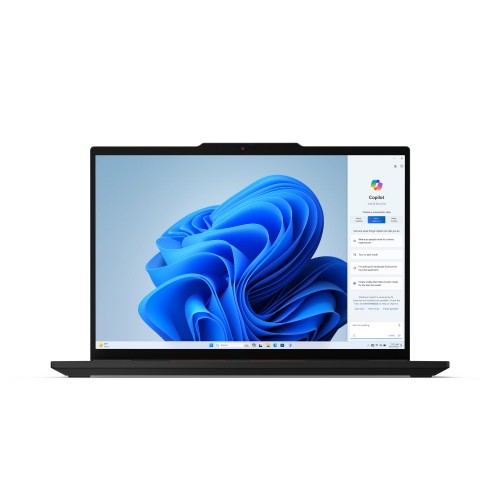

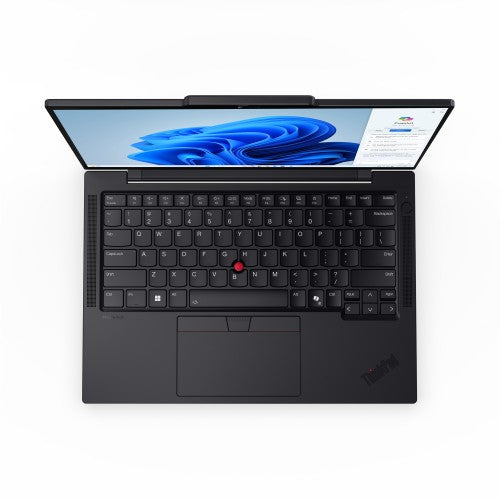

Lenovo ThinkPad T14s Gen 5 Intel Core Ultra 7 155U Laptop 14" Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Black

Intel Core Ultra 7 155U (12MB Cache), 16GB LPDDR5x-SDRAM, 1000GB SSD, 35.6 cm (14") WUXGA 1920 x 1200 IPS Touch, Intel Graphics, WLAN, Webcam, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 7 155U (12MB Cache)
• 35.6 cm (14") WUXGA 1920 x 1200 IPS Touch
• 16GB (7467MHz) LPDDR5x-SDRAM & 1000GB SSD

Description

AI-driven Excellence & Performance
Boost your productivity on the 14'' Lenovo ThinkPad T14s Gen 5 laptop, driven by Intel® Core™ Ultra processor. With the Intel® Arc™ graphics, elevate your ability to create or design with pixel-perfect clarity. Plus, AI-enabled features like background blur, voice focus, and automatic framing improve your video presence for better engagements.

Visuals — Brighter & More Enhanced
Enjoy superb content quality on the 14'' ThinkPad T14s Gen 5 laptop with up to 2.8k OLED display options. Its 3M optical solutions improve display efficiency, optimizing brightness and power usage. Eyesafe® and TÜV Low Blue Light certifications help prevent eye fatigue. The slim profile is available in the rich colors of Eclipse Black and Luna Grey.

Redesigned for Inclusivity & Perfection
Our redesigned ThinkPad keyboard now includes tactile markings to help easily identify significant keys. Our TrackPad is larger than ever and a double tap of the TrackPoint Quick Menu opens a customizable settings menu. Plus, the Communications Bar on the top cover boasts a 5MP camera and noise-canceling microphones for improved daily productivity.

Adaptive Power, Better Endurance
The ThinkPad T14s Gen 5 laptop prudently adapts to your workload needs with an improved battery system. Its advanced thermal design, featuring dual fans and well-placed rear air vents, ensures optimal cooling efficiency. And, its MIL-STD-810H tested for high-end durability and engineered to be power-efficient with an ENERGY STAR® 8.0 certification.

Peace of Mind with Smarter Security
The ThinkPad T14s Gen 5 laptop boasts robust security features, including biometric authentication with fingerprint reader and facial recognition for quick, secure login. ThinkShield, our comprehensive security suite, ensures data encryption via a Discrete Trusted Platform Module (dTPM). And for added protection, there’s a webcam privacy shutter.

Responsibly Made for a Better Tomorrow
While the slim profile of T14s laptop is sure to impress, take pride in knowing its keyboard frame utilizes 90% recycled magnesium and the bottom cover features 55% recycled aluminum. Both color options include speaker, battery, and adapter enclosures made of 90% post-consumer content (PCC) recycled plastic and come in plastic-free packaging.

Specifications may vary depending upon region / model.

Specifications

Design
Product type	Laptop
Housing material	Aluminum, Carbon fiber
Form factor	Clamshell
Product colour	Black
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	500 cd/m²
Contrast ratio (typical)	1500:1
Touchscreen	Yes
Display resolution	1920 x 1200 pixels
Display diagonal	14"
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	155U
Processor boost frequency	4.8 GHz
Processor cores	12
Processor threads	14
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor base power	15 W
Maximum turbo power	57 W
Efficient-core base frequency	1.2 GHz
Performance-core base frequency	1.7 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.1 GHz
Low Power Efficient-cores	2
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Maximum internal memory	16 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	1 TB
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Graphics
On-board graphics card	Yes
On-board graphics card model	Intel Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Technical details
Housing material	Aluminum, Carbon fiber
Form factor	Clamshell
Product colour	Black
Sustainability certificates	TCO, ENERGY STAR, EPEAT Gold
Compliance certificates	RoHS
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	58 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certificates
Certification	ErP Lot 6 ErP Lot 26 MIL-STD-810H
Compliance certificates	RoHS
Sustainability
Sustainability certificates	TCO, ENERGY STAR, EPEAT Gold
Weight & dimensions
Width	12.3" (313.6 mm)
Depth	8.64" (219.4 mm)
Height	0.665" (16.9 mm)
Weight	2.73 lbs (1.24 kg)
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
Audio system	Dolby Audio
Maximum shipping altitude	120000" (3048 m)
Anti-glare screen	Yes
