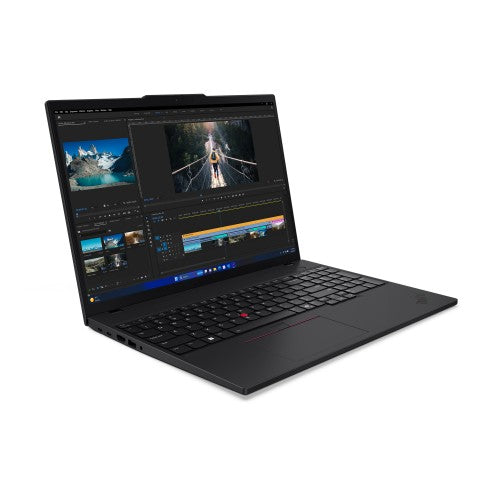

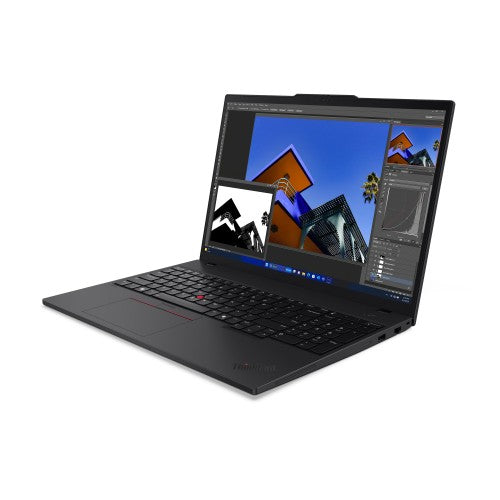

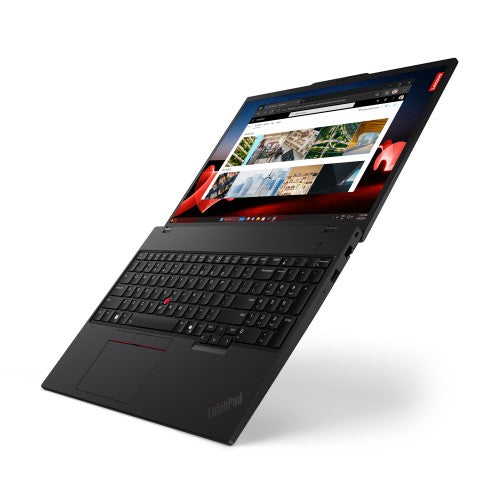

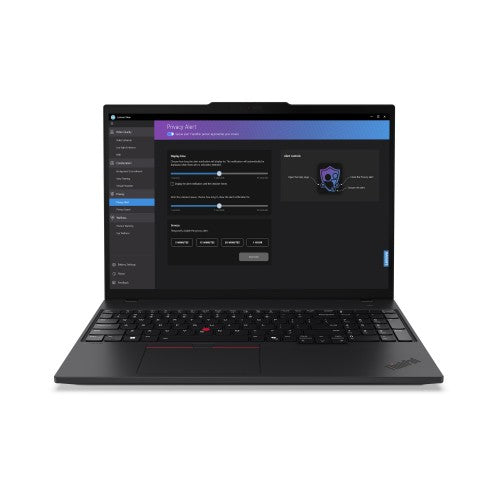

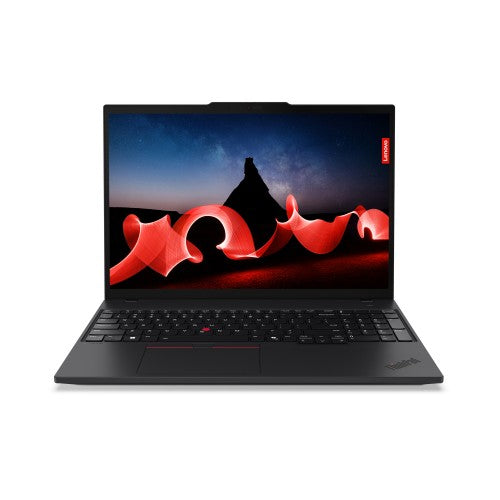

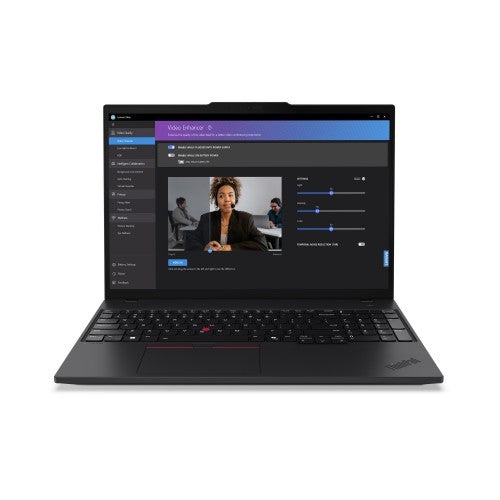

Lenovo ThinkPad T16 Gen 3 Intel Core Ultra 5 125U Laptop 16" Touchscreen WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Black

Intel Core Ultra 5 125U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.3GHz, 12MB, 1x 16GB SO-DIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 16" WUXGA (1920x1200) IPS 300nits 45% NTSC Touch, Intel Graphics, Intel Wi-Fi 6E AX211 802.11ax 2x2 + BT5.3, 5.0MP + IR Discrete with Privacy Shutter, Windows 11 Pro

Key Features

• Intel Core Ultra 5 125U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.3GHz, 12MB
• 16" WUXGA (1920x1200) IPS 300nits 45% NTSC Touch
• 1x 16GB SO-DIMM DDR5-5600
• 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Intel Graphics
• Windows 11 Pro

Description

High-Performing Productivity & Accessibility
Powered by Intel® Core™ Ultra processors, the Lenovo ThinkPad T16 Gen 3 (16'' Intel) taps into AI-assisted productivity like never before. Enjoy optimized performance with dedicated AI engines. And the new ThinkPad keyboard features tactile markers to help the visually impaired find the correct keys, plus a larger TrackPad and TrackPoint Quick Menu.

Repairable & Upgradeable
We’ve made it easy to repair your system with customer replaceable units (CRUs), even with no tech expertise. For ease of maintenance and do-it-yourself serviceability, this laptop boasts an industry-leading 9/10 on the iFixit Repairability Score. This means you can trust our support services to keep your system and your business up and running.

Accesibility, Convenience, & Aesthetics Meet Here
The T16 Gen 3 is more accessible to the visually impaired not only due to tactile keyboard markers – it also features an LED Braille indicator for easy location of the power port. A communications bar houses the mics and camera/privacy shutter, while thin bezels yield an impressive, aesthetically pleasing screen-to-body ratio & gorgeous panel.

Cooler Operation
We’ve also redesigned the ThinkPad T16 laptop’s thermals. Dual fans direct the airflow to the rear of the laptop rather than the side, keeping your mouse hand—and the laptop—cooler. This also allows an increase in thermal design power, for better performance.

Keeping Your Data Locked Down Tight
Biometrics protect the ThinkPad T16 Gen 3 laptop, from the fingerprint reader to facial recognition software. ThinkShield, our comprehensive suite of security solutions, boasts discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Plus, AI-based Intel® Hardware Shield helps prevent and defend against attacks.

Commitment to Sustainability
We’re committed to making a positive impact on our environment. This laptop uses post-consumer content (PCC) recycled plastic in various components, including 90% in the AC adapter, battery enclosure, and speaker enclosure. Plus it’s certified ENERGY STAR 8.0 & TCO 9, and packaging is 100% plastic-free, certified by the FSC®.

Specifications may vary depending upon region / model.

Specifications

Design
Product type	Laptop
Housing material	Glass fiber, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	300 cd/m²
Contrast ratio (typical)	1000:1
Touchscreen	Yes
Display resolution	1920 x 1200 pixels
Display diagonal	16"
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	125U
Processor boost frequency	4.3 GHz
Processor cores	12
Processor threads	14
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor base power	15 W
Maximum turbo power	57 W
Efficient-core base frequency	0.8 GHz
Performance-core base frequency	1.3 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core Max Turbo Frequency	4.3 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.1 GHz
Low Power Efficient-cores	2
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Graphics
On-board graphics card	Yes
On-board graphics card model	Intel Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
WWAN	Not installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Technical details
Housing material	Glass fiber, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Sustainability compliance	Yes
Sustainability certificates	ErP
Compliance certificates	RoHS
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	86 Wh
Fast charging	Yes
Power
AC adapter power	100 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, HDD, Power on, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certificates
Certification	ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified 9.0 MIL-STD-810H
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ErP
Weight & dimensions
Width	14.2" (359.7 mm)
Depth	9.87" (250.8 mm)
Height	0.773" (19.6 mm)
Weight	3.66 lbs (1.66 kg)
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
Audio system	Dolby Audio
Maximum shipping altitude	120000" (3048 m)
AC adapter included	Yes
Anti-glare screen	Yes
