Intel Core Ultra 7 155H (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 40.6 cm (16") WUXGA 1920 x 1200 IPS Touch, Intel Arc Graphics, NVIDIA RTX 500 Ada (4GB GDDR6), LAN, WLAN, Webcam, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 155H (24MB Cache)
- 40.6 cm (16") WUXGA 1920 x 1200 IPS Touch, NVIDIA RTX 500 Ada (4GB GDDR6)
- 16GB (5600MHz) DDR5-SDRAM (1 x 16) & 512GB SSD
Description
Power Unpacked: Compact Strength, Limitless CreativityEnjoy robust performance on the ThinkPad P16s Gen 3 (16” Intel) mobile workstation driven by the Intel® Core™ Ultra processor. Handle intense workloads with ease — the dedicated AI engines boost productivity while advanced thermal system offer power efficiency. Plus, opt for discrete NVIDIA RTX™ 500 Ada graphics to savor superior visual fidelity.
Your Workstation, Your Way, EverywhereJuggle tasks like a pro with the P16s Gen 3 mobile workstation. It boasts plentiful ports, swift memory, and superior connectivity with WiFi capabilities and optional WWAN technology to stay online 24/7. Delivering robust performance at an affordable cost, this device is ideal for architects, engineers, and 2D and entry-level 3D creators alike.
Clarity — With Capabilities, Without CompromiseWhether you’re creating content or editing designs, the P16s Gen 3 workstation delivers supreme visual excellence with up to a 4K OLED display. Each display option features anti-glare and most are certified for low blue light. The Communication Bar on the screen top allows for seamless virtual interactions, boasting a 5MP camera and premium mics.
Efficiency in Action: Work Hard, Tread Lightly To ensure steadfast performance for highly intensive tasks, the P16s Gen 3 workstation boasts independent software vendor (ISV) certified apps like Adobe®, ANSYS® , & AVID®. It offers cost-efficient operation with ENERGY STAR® 8.0. The best part? It incorporates a mix of recycled plastics and metals in its build and has plastic-free packaging. *See the complete list of ISV certifications

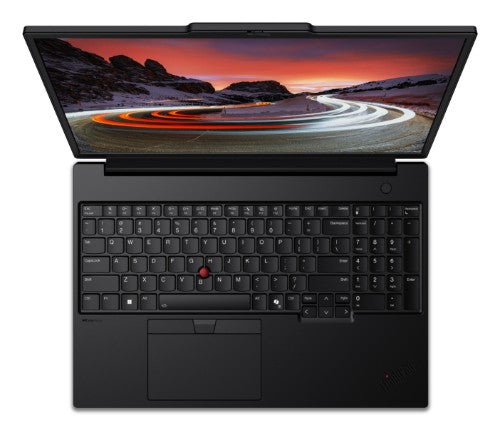

Feel the Difference: Smoother & SmarterOur redesigned ThinkPad keyboard includes tactile markings for improved accessibility. The TrackPad is even bigger for greater control, and there’s a customizable TrackPoint Quick Menu — triggered with a double tap. Plus, multitask faster with a dedicated Windows Copilot key that streamlines your digital tasks, raising your everyday productivity.
Not Just Secure, A Virtual StrongholdBenefit from ThinkShield, an advanced security suite, to encrypt data via a discrete Trusted Platform Module (dTPM). Get layered protection with the Intel® Hardware Shield powered by AI. And, gain quick, secure device access with fingerprint reader or facial recognition login features. Plus, its tested tough to comply with MIL-STD-810H standards.
Specifications
| Design |
|---|
| Colour name |
Black |
| Product type |
Mobile workstation |
| Housing material |
Aluminum |
| Form factor |
Clamshell |
| Product colour |
Black |
| Display |
|---|
| HD type |
WUXGA |
| Panel type |
IPS |
| LED backlight |
Yes |
| Display brightness |
300 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
16" |
| Anti-glare screen |
Yes |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Native aspect ratio |
16:10 |
| Processor |
|---|
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor model |
155H |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
16 |
| Processor threads |
22 |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 7 |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Performance cores |
6 |
| Efficient cores |
8 |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-cores |
2 |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI datatype support on NPU |
FP16, FP32, Int8 |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory |
|---|
| Memory form factor |
SO-DIMM |
| Internal memory |
16 GB |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
96 GB |
| Memory channels |
Single-channel |
| Non-ECC |
Yes |
| Storage |
|---|
| SSD form factor |
M.2 |
| Storage media |
SSD |
| Optical drive type |
No |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| SSD interface |
PCI Express 4.0 |
| Card reader integrated |
No |
| Total storage capacity |
512 GB |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
Yes |
| Discrete graphics card memory |
4 GB |
| On-board graphics card family |
Intel Arc Graphics |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel Arc Graphics |
| Discrete graphics card model |
NVIDIA RTX 500 Ada |
| Discrete graphics memory type |
GDDR6 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board GPU manufacturer |
Intel |
| Audio |
|---|
| Audio chip |
Realtek ALC3287 |
| Number of microphones |
2 |
| Audio system |
Dolby Audio |
| Number of built-in speakers |
2 |
| Speaker power |
2 W |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Infrared (IR) camera |
Yes |
| Windows Hello |
Yes |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Near Field Communication (NFC) |
No |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000,100 Mbit/s |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| WWAN |
Upgradable |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Pointing device |
ThinkPad UltraNav |
| Numeric keypad |
Yes |
| Spill-resistant keyboard |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
English |
| Software |
|---|
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Technical details |
|---|
| Housing material |
Aluminum |
| Form factor |
Clamshell |
| Product colour |
Black |
| Discrete graphics card memory |
4 GB |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, TCO |
| PSTI certified |
Yes |
| Compliance certificates |
RoHS |
| Battery |
|---|
| Battery technology |
Lithium Polymer (LiPo) |
| Battery capacity |
75 Wh |
| Fast charging |
Yes |
| Power |
|---|
| AC adapter power |
135 W |
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| Security |
|---|
| Password protection |
Yes |
| Cable lock slot type |
Kensington |
| Trusted Platform Module (TPM) |
Yes |
| Password protection type |
BIOS, Power on, SSD, Supervisor |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Windows Hello |
Yes |
| Smart card reader |
No |
| Trusted Platform Module (TPM) version |
2.0 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Maximum shipping altitude |
120000" (3048 m) |
| Certificates |
|---|
| Certification |
MIL-STD-810H |
| PSTI certified |
Yes |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, TCO |
| Weight & dimensions |
|---|
| Width |
14.2" (361.5 mm) |
| Depth |
9.79" (248.6 mm) |
| Height |
0.832" (21.1 mm) |
| Weight |
4.01 lbs (1.82 kg) |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Other features |
|---|
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| On-board graphics card |
Yes |
| Audio system |
Dolby Audio |
| Maximum shipping altitude |
120000" (3048 m) |
| AC adapter included |
Yes |
| Anti-glare screen |
Yes |
