Lenovo ThinkCentre M75q Gen 2 AMD Ryzen™ 7 PRO 5750GE 32 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

AMD Ryzen 7 PRO 5750GE (16MB Cache, 3.2GHz), 32GB DDR4-SDRAM, 512GB SSD, AMD Radeon Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro

Key Features

• Windows 11 Pro
• AMD Ryzen 7 PRO 5750GE (16MB Cache, 3.2GHz)
• 32GB (3200MHz) DDR4-SDRAM (1 x 32) & 512GB SSD

Description

Tiny technology, big output
The 1L ThinkCentre M75q Gen 2 tiny desktop PC is built to do big things. It will fit anywhere in your workspace, where its powerful AMD PRO performance will keep your business going. It’s also easy to manage and expand, with a durable design and convenient features.

Full-sized performance
At 1L, the ThinkCentre M75q Gen 2 can be tucked away anywhere, while providing enterprise-level performance with its AMD Ryzen™ 7 PRO processor. This PC is designed for multitasking, content creation, data-crunching, and more—all from a compact unit. It also features up to two DDR4 SODIMM slots and dual punch-outs, allowing you to configure it to meet your specific business needs.

Secure inside and out
Work fearlessly, thanks to the reinforced security of ThinkShield—the most comprehensive, end-to-end security solution on the market. ThinkShield combines industry-leading hardware, software, services, and processes to protect your data and your business. This PC also features AMD Memory Guard, providing full memory encryption to protect sensitive data.

Enhanced experience, easy expandability
The M75q Gen 2 is designed to grow with your business. It connects to industry-specific equipment as well as legacy peripherals, and is built for easy expansion. It’s also designed with people—and shrinking workspaces—in mind. It fits easily into any environment, connects to up to three displays, and allows fast charging and data sharing via its front-panel USB-C port.

Comprehensive manageability and reliability
The M75q Gen 2 is easy to deploy, upgrade, and manage. It features built-in driver support for older OS versions and toolless access. AMD PRO manageability allows IT professionals to administer to a full fleet from any location within your organization. It's easy to connect to a Tiny-in-One display, among other mounting options. And it’s MILSPEC-tested against 10 conditions for durability and reliability.

Specifications

Processor
Processor generation	AMD Ryzen PRO 5000 Series
Processor cache type	L3
Processor cache	16 MB
Processor frequency	3.2 GHz
Processor model	5750GE
Number of processors installed	1
Processor manufacturer	AMD
Processor boost frequency	4.6 GHz
Processor threads	16
Processor cores	8
Processor family	AMD Ryzen™ 7 PRO
Memory
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
On-board graphics card family	AMD Radeon Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon Graphics
On-board GPU manufacturer	AMD
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wake-on-LAN ready	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Dual Band Wireless-AC 9260
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	1.4b
USB 2.0 ports quantity	2
HDMI ports quantity	1

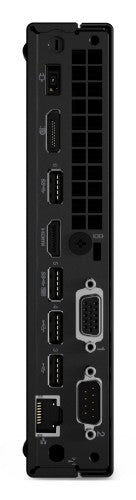

Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	AMD PRO 500
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, TCO
Compliance certificates	RoHS
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Colour name	Black
Performance
Audio chip	Realtek ALC222
Number of speakers	1
Password protection	Yes
Password protection type	Power on, Supervisor, HDD
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	AMD PRO 500
Trusted Platform Module (TPM) version	2.0
Software
Operating system language	English
Operating system installed	Windows 11 Pro
Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	65 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	MIL-STD-810H
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, TCO
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (183 mm)
Height	1.46" (37 mm)
Weight	2.76 lbs (1.25 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	AMD
Built-in speaker(s)	Yes
