54.6cm (21.5") Full HD 1920 x 1080 W-LED IPS, 16:9, 250cd/m², 16.7M, 6ms, 178°/178°, 1000:1
Key Features
- 54.6cm (21.5") Full HD 1920 x 1080 W-LED IPS
- 6ms, 16:9, 250cd/m², 1000:1
- USB, HDMI, DisplayPort
Description

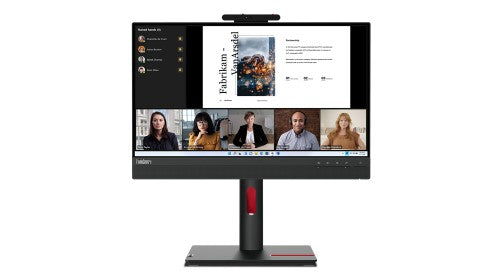

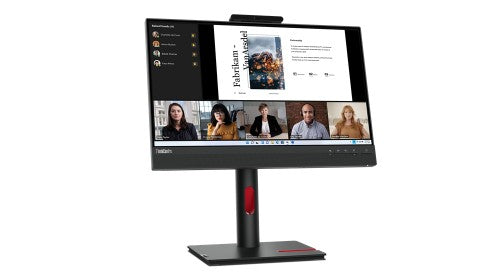

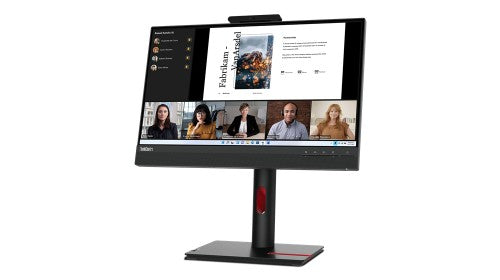

One machine to connect you with the world.Multitask with multiple devices.The ThinkCentre Tiny-In-One (TIO) 22 Gen 5 is an all-rounder with its 21,5-inch FHD In-Plane Switching panel which provides an immersive video calling experience. This Modular design of the monitor makes it compatible with Lenovo’s range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen, and gives a complete working experience when paired with its VoIP features. This can be installed on your monitor effortlessly and housed on the back of the monitor in a dedicated slot, making your desk cable-free. The classic installation mechanism ensures you have a consistent experience, allowing you to easily and quickly mount last-gen Tiny PCs on the monitor. Designed to be a powerful VoIP machine, this monitor is enhanced with features that make video conferencing a great experience. During online meetings, the 1080p RGB webcam and integrated noise-cancellation microphone produce exceptionally clear audio and video. TIO 22 Gen 5 also has a Smart Traffic Light indicator that alerts everyone in the vicinity to an ongoing meeting, letting you remain focused. If remaining focused and staying in the conversation is of importance to you, then the two built-in 3W speakers ensure that the audio from meetings is always clear and crisp. Easily manage VoIP calls with one toggle to change the volume or mute the call using the dedicated VoIP buttons. Your privacy is in your hands with the ThinkShutter, which allows you to cover the camera when not in its use. Lenovo takes care of the environment with green packaging and optional CO2 offset service for zero to minimal carbon emission. In addition to Tiny PCs, this monitor can also be easily connected to other notebooks, towers using the HDMI and DP ports, and to other peripherals using the USB ports. With the ThinkColour software1, customize the screen’s attributes, create screen profiles, and easily switch between them as per your work preference. Protects your eyes from harmful blue light without any color distortion during long hours of screen time with the Natural Low Blue Light technology. The TIO 22 Gen 5 is the perfect option if you’re looking for a clean and clutter-free setup to maximize productivity and enjoy an efficient, all-in-one experience.
Specifications
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
6 W |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
6 W |
| Built-in microphone |
Yes |
| Built-in camera |
Yes |
| AMD FreeSync |
No |
| Compatible operating systems |
Windows 10, Windows 11 |
| NVIDIA G-SYNC |
No |
| Low Blue Light technology |
Yes |
| Display |
|---|
| Display brightness (typical) |
250 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Pixel density |
102 ppi |
| Colour gamut |
99% |
| Maximum refresh rate |
60 Hz |
| sRGB coverage (typical) |
99% |
| HD type |
Full HD |
| Display technology |
LED |
| Contrast ratio (typical) |
1000:1 |
| Contrast ratio (dynamic) |
3000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00976 x 0.00976" (0.248 x 0.248 mm) |
| Viewable size, horizontal |
18.7" (47.6 cm) |
| Viewable size, vertical |
10.6" (26.8 cm) |
| Backlight type |
W-LED |
| Display resolution |
1920 x 1080 pixels |
| Response time |
6 ms |
| Display diagonal |
21.5" |
| Response time (fast) |
4 ms |
| Touchscreen |
No |
| Panel type |
IPS |
| Colour depth |
8 bit |
| Colour gamut standard |
sRGB |
| Anti-glare screen |
Yes |
| Multimedia |
|---|
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| RMS rated power |
6 W |
| Built-in microphone |
Yes |
| Built-in camera |
Yes |
| Power |
|---|
| Power cable length |
39.4" (1 m) |
| Power supply type |
External |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
33 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
13.4 W |
| Power consumption (off) |
0.5 W |
| Design |
|---|
| Certification |
EU Energy Label (D-class)
ENERGY STAR® Certified
EPEAT™ Gold Registered
TCO Certified 9.0
TCO edge 2.0
Volatile Organic Compound Certification
RoHS compliant
Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort |
| Product colour |
Black |
| Camera |
|---|
| Built-in camera |
Yes |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type |
USB Type-B |
| Number of upstream ports |
1 |
| USB Type-A downstream ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDMI |
Yes |
| HDMI version |
1.4 |
| DisplayPort version |
1.2 |
| Number of USB Type-B upstream ports quantity |
1 |
| Technical details |
|---|
| Height (without stand) |
13.4" (339.1 mm) |
| Depth (without stand) |
2.87" (72.8 mm) |
| Width (without stand) |
19.3" (489.3 mm) |
| Cable lock slot |
Yes |
| HDMI |
Yes |
| Built-in microphone |
Yes |
| Product colour |
Black |
| Warranty period |
3 year(s) |
| Compatible operating systems |
Windows 10, Windows 11 |
| Power supply type |
External |
| Weight (with stand) |
12.1 lbs (5.5 kg) |
| Touchscreen |
No |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Swivelling |
Yes |
| Swivel angle range |
-45 - 45° |
| Tilt angle range |
-5 - 23.5° |
| Pivot |
Yes |
| Pivot angle |
-5 - 90° |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable management |
Yes |
| Adjustable height (max) |
6.1" (15.5 cm) |
| Weight & dimensions |
|---|
| Height (without stand) |
13.4" (339.1 mm) |
| Depth (without stand) |
2.87" (72.8 mm) |
| Width (without stand) |
19.3" (489.3 mm) |
| Width (with stand) |
19.3" (489.3 mm) |
| Depth (with stand) |
8.17" (207.6 mm) |
| Height (with stand) |
20.2" (512.3 mm) |
| Bezel width (side) |
0.0787" (2 mm) |
| Bezel width (top) |
0.0787" (2 mm) |
| Bezel width (bottom) |
1.81" (4.6 cm) |
| Weight (with stand) |
12.1 lbs (5.5 kg) |
| Weight (without stand) |
7.05 lbs (3.2 kg) |
| Package width |
22.4" (568 mm) |
| Package depth |
6.93" (176 mm) |
| Package height |
16.6" (422 mm) |
| Package weight |
17.9 lbs (8.1 kg) |
| Packaging data |
|---|
| Package width |
22.4" (568 mm) |
| Package depth |
6.93" (176 mm) |
| Package height |
16.6" (422 mm) |
| Package weight |
17.9 lbs (8.1 kg) |
| Stand included |
Yes |
| Power cable length |
39.4" (1 m) |
| Quick start guide |
Yes |
| Cables included |
AC |
| Power adapter included |
Yes |
| Packaging content |
|---|
| Stand included |
Yes |
| Power cable length |
39.4" (1 m) |
| Quick start guide |
Yes |
| Cables included |
AC |
| Power adapter included |
Yes |
| Other features |
|---|
| Compatible operating systems |
Windows 10, Windows 11 |
| Certification |
EU Energy Label (D-class)
ENERGY STAR® Certified
EPEAT™ Gold Registered
TCO Certified 9.0
TCO edge 2.0
Volatile Organic Compound Certification
RoHS compliant
Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort |
| Warranty period |
3 year(s) |
| Height (without stand) |
13.4" (339.1 mm) |
| Depth (without stand) |
2.87" (72.8 mm) |
| Width (without stand) |
19.3" (489.3 mm) |
| Power consumption (max) |
33 W |
| Quick start guide |
Yes |
| HDMI |
Yes |
| Power supply type |
External |
| Power cable length |
39.4" (1 m) |
| Touchscreen |
No |
| Certificates |
|---|
| Certification |
EU Energy Label (D-class)
ENERGY STAR® Certified
EPEAT™ Gold Registered
TCO Certified 9.0
TCO edge 2.0
Volatile Organic Compound Certification
RoHS compliant
Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort |
