Description
Description

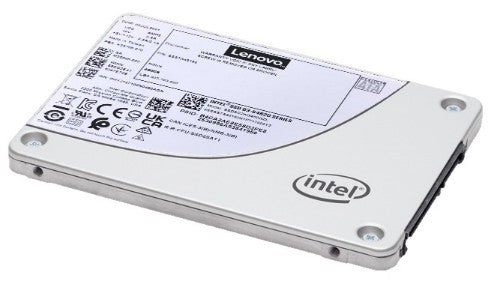

By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4620 SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS. Rigorous testing of S4620 SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.Specifications
| Hard drive | |
|---|---|
| SSD capacity | 480 GB |
| Memory type | 3D TLC NAND |
| Data transmission | |
| Read speed | 550 MB/s |
| Write speed | 500 MB/s |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 82000 IOPS |
| Write latency | 36 µs |
| Read latency | 36 µs |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Certificates | |
| Certification | FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Hot-swap | Yes |
| SSD capacity | 480 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 550 MB/s |
| Write speed | 500 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 82000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 36 µs |
| Read latency | 36 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| Certification | FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP |
| SSD form factor | 2.5" |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Hot-swap | Yes |
| SSD capacity | 480 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 550 MB/s |
| Write speed | 500 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 50000 IOPS |
| Random read (4KB) | 82000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 36 µs |
| Read latency | 36 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Certification | FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Maximum operating altitude | 120078.7" (3050 m) |
| Technical details | |
| Interface | Serial ATA III |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Maximum operating altitude | 120078.7" (3050 m) |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Package width | 6.85" (174 mm) |
| Package depth | 5.24" (133 mm) |
| Package height | 2.48" (63 mm) |
| Package weight | 15.3 oz (434 g) |
| Width | 2.76" (70 mm) |
| Weight | 2.47 oz (70 g) |
| Height | 0.276" (7 mm) |
| Depth | 3.94" (100 mm) |
| Packaging data | |
| Package width | 6.85" (174 mm) |
| Package depth | 5.24" (133 mm) |
| Package height | 2.48" (63 mm) |
| Package weight | 15.3 oz (434 g) |
