2 x DisplayPort, 1 x HDMI, 3 x USB 3.1, 2 x USB 2.0, 1 x USB Type C, 1 x Gigabit LAN, 90W
Description

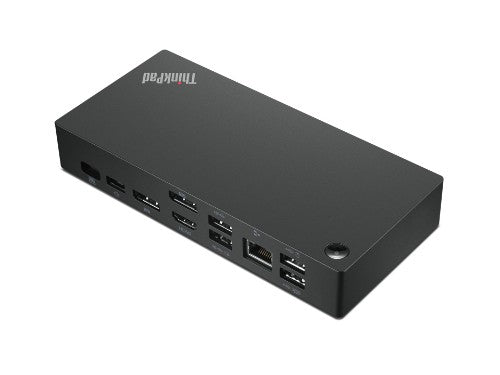

The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.
One Dock. No Limits.Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.
One Cable. No Hassle.With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.
Entire Fleet. One Manager.The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Microphone in |
No |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| On/off switch |
Yes |
| Product colour |
Black |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| Certification |
FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
| Cable lock slot type |
Kensington |
| HD type |
4K Ultra HD |
| Technical details |
|---|
| Product colour |
Black |
| Cable lock slot |
Yes |
| Compliance certificates |
CE |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
USB |
| Power connector |
USB Type-C |
| Power supply |
90 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Weight & dimensions |
|---|
| Weight |
12 oz (340 g) |
| Width |
6.73" (171 mm) |
| Depth |
3.15" (80 mm) |
| Height |
1.21" (30.8 mm) |
| Package weight |
33.7 oz (955 g) |
| Package width |
8.27" (210 mm) |
| Package depth |
6.22" (158 mm) |
| Package height |
2.95" (75 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Certification |
FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
33.7 oz (955 g) |
| Package width |
8.27" (210 mm) |
| Package depth |
6.22" (158 mm) |
| Package height |
2.95" (75 mm) |
| Packaging content |
|---|
| Cables included |
USB Type-C |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
