Intel Core i5-1145GRE (4C / 8T, 1.5 / 4.1GHz, 8MB), Integrated Intel Iris Xe Graphics, 16GB Soldered DDR4-3200, 512GB SSD M.2 2230 PCIe 3.0 NVMe, Intel 9260 11ac, 2x2 + BT5.1, vPro, Windows 10 IoT Enterprise, English
Description

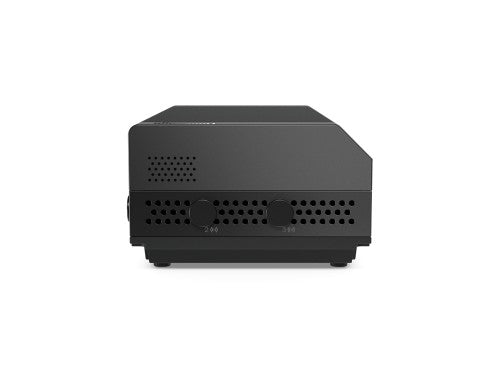

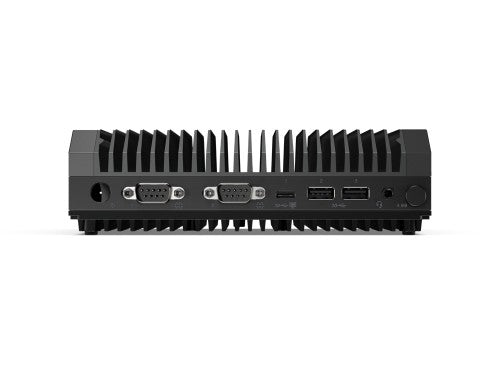

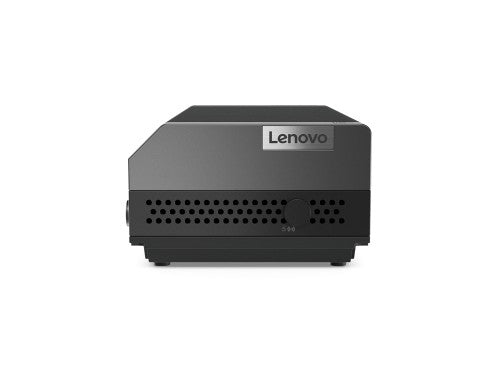

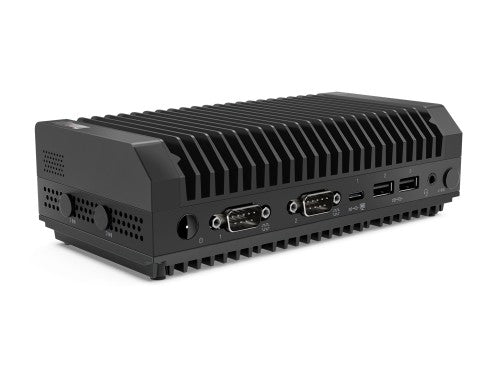

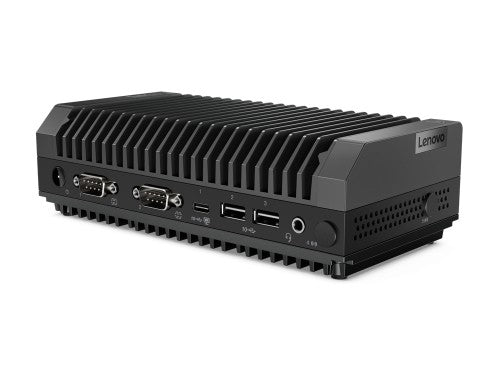

Excellent performance in a compact bodyCompact, rugged and reliable, the ThinkEdge SE30 is an edge IoT-dedicated terminal with the tiny footprint of a 0.81L device. Its 11th Gen Intel® Core™ i5-1145GRE / i3-1115GRE processors for IoT and embedded devices support Wifi, Bluetooth™ and 4G LTE or 5G WWAN wireless connections to efficiently transport your IoT data to the cloud or your data center.
Ideal for use in harsh environmentsWith an innovative fanless design that guarantees efficient heat dissipation, the SE30 supports a thermal operating temperature range from -20° to 60° C. Its MIL-STD-tested device reliability offers durable performance for uninterrupted productivity, even in harsh conditions.

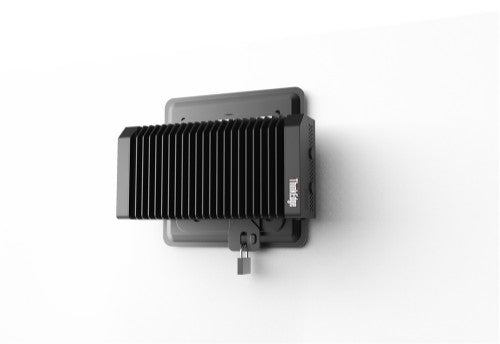

Secure & reliableThe SE30’s Kensington and VESA mount locks mean the device stays where you put it, and paired with RSA encryption to secure user data, a hardware watchdog timer helps ensure continuous operation. With MIL-STD810H compliant robustness, and continuous operation 24 hours a day, 365 days a year, you can install it with confidence.
Flexible network connectivityBuilt for evolving IoT environments, the ThinkEdge SE30 supports 4G and 5G high-speed communication and quickly and securely collects, analyzes and transmits your IoT data to the cloud or data center.
Specifications
| Processor |
|---|
| Processor generation |
11th gen Intel® Core™ i5 |
| Configurable TDP-down |
12 W |
| Processor cache type |
Smart Cache |
| Configurable TDP-down frequency |
1.1 GHz |
| Processor cache |
8 MB |
| Processor frequency |
1.5 GHz |
| Processor model |
i5-1145GRE |
| Number of processors installed |
1 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
4.1 GHz |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor family |
Intel® Core™ i5 |
| Configurable TDP-up frequency |
2.6 GHz |
| Configurable TDP-up |
28 W |
| Memory |
|---|
| Internal memory |
16 GB |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Memory clock speed |
3200 MHz |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Storage media |
SSD |
| Optical drive type |
No |
| SSD interface |
NVMe, PCI Express 3.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total storage capacity |
512 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates |
1000,2500,100 Mbit/s |
| WLAN controller model |
Intel Dual Band Wireless-AC 9260 |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Serial ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| DisplayPorts quantity |
1 |
| DC-in jack |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel SoC |
| Sustainability certificates |
ErP |
| Compliance certificates |
REACH, RoHS, WEEE |
| Design |
|---|
| Volume |
0.81 L |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Mini PC |
| Cable lock slot |
Yes |
| Performance |
|---|
| Embedded options available |
Yes |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
Intel SoC |
| Software |
|---|
| Operating system language |
English |
| Operating system installed |
Windows 10 IoT Enterprise |
| Processor special features |
|---|
| Embedded options available |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Idle States |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Power |
|---|
| Power supply |
65 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Compliance certificates |
REACH, RoHS, WEEE |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| Weight & dimensions |
|---|
| Volume |
0.81 L |
| Width |
7.05" (179 mm) |
| Depth |
3.46" (88 mm) |
| Height |
2.03" (51.5 mm) |
| Packaging content |
|---|
| Mouse included |
No |
| Keyboard layout |
QWERTY |
| Display included |
No |
| Keyboard included |
Yes |
| Other features |
|---|
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
