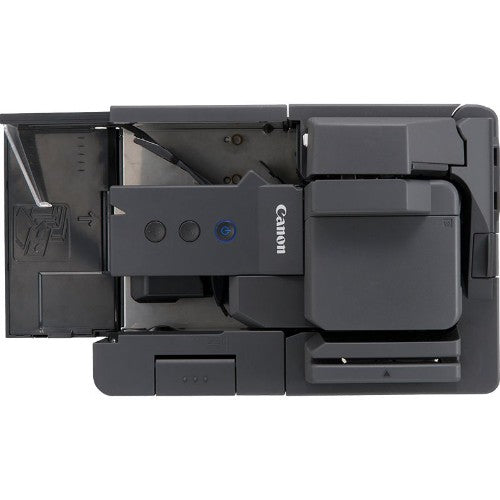

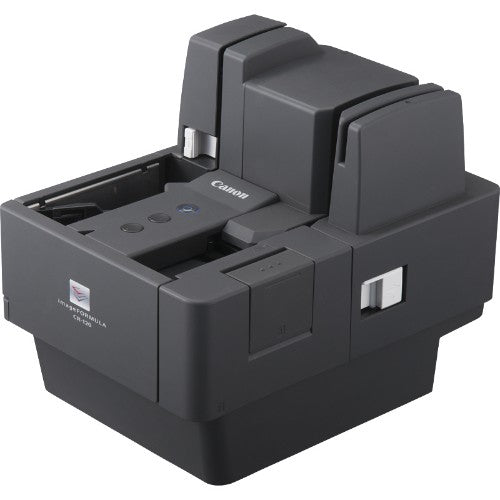

Canon imageFORMULA CR-120, 4.25 x 9.65" (108 x 245 mm), 600 x 600 DPI, 24 bit, 120 ppm, CMOS, RGB LED
Description
Canon imageFORMULA CR-120. Maximum scan size: 4.25 x 9.65" (108 x 245 mm), Optical scanning resolution: 600 x 600 DPI, Input color depth: 24 bit. Sensor type: CMOS, Light source: RGB LED. Auto document feeder (ADF) input capacity: 150 sheets. Card thickness (max): 0.00787" (0.2 mm), Auto Document Feeder (ADF) media weight: 64 - 157 g/m². Standard interfaces: USB 2.0
Specifications
| Scanning |
|---|
| Maximum scan size |
4.25 x 9.65" (108 x 245 mm) |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
120 ppm |
| Sensor type |
CMOS |
| Light source |
RGB LED |
| Design |
|---|
| Built-in display |
No |
| Performance |
|---|
| Sensor type |
CMOS |
| Light source |
RGB LED |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
150 sheets |
| Paper handling |
|---|
| Auto Document Feeder (ADF) media weight |
64 - 157 g/m² |
| Card thickness (max) |
0.00787" (0.2 mm) |
| Ports & interfaces |
|---|
| Standard interfaces |
USB 2.0 |
| USB port |
Yes |
| USB version |
2.0 |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1, Windows Vista |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2 |
| Bundled software |
Ranger Transport API, Canon Scanning Utility |
| Power |
|---|
| Power consumption (typical) |
25 W |
| Power consumption (sleep) |
2.7 W |
| Sleep mode |
Yes |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1, Windows Vista |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2 |
| Weight & dimensions |
|---|
| Width |
6.69" (170 mm) |
| Depth |
9.38" (238.2 mm) |
| Height |
8.02" (203.6 mm) |
| Weight |
7.05 lbs (3.2 kg) |
| Packaging content |
|---|
| Cables included |
AC, USB |
| Bundled software |
Ranger Transport API, Canon Scanning Utility |
