Wireless scan and go with the DSmobile DS-940DW. Versatile and truly portable with built-in rechargeable battery. Staying on top of your paperwork when you are out of the office is simple.
Key Features
- Automatic 2-sided A4 scanning up to 15 pages per minute
- Space saving ‘U-path’ paper feed system
- Industry leading software to scan documents, receipts and ID cards
- Power directly from a USB 3.0 port on PC
- Built-in rechargeable battery and card reader
- Connect to a wireless network or Brother mobile app
Reasons To Buy
Convenient and space saving

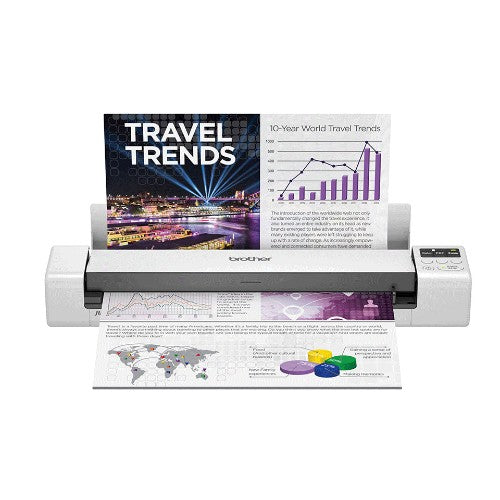

The DSmobile DS-940DW is small and compact, ideal where space is limited. The unique “U-path” paper feed means you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and returned to you.
Enjoy scanning anywhere
Truly portable, the DSmobile DS-940DW scanner has a built-in battery so you can enjoy scanning your documents without the need to plug into a power supply. Simply take your scanner with you, scanning where it’s most convenient for you.
Mixed media, high-quality results
Designed to scan a wide range of documents including A4 documents, ID cards and receipts, makes the DSmobile DS-940DW a true work companion.
The dedicated roller system, ensures your documents are smoothly fed-through, guaranteeing high-quality, digital files are created every time.
Stay effortlessly organised
Using Brother’s free mobile app, viewing and sharing documents on your mobile phone or tablet is effortless. The intuitive LCD panel makes selecting and changing scan functions simple.
Description
The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple. Scan your documents straight to the cloud using Brother's mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit. With a unique "U-path" roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.
Specifications
| Scanning |
|---|
| Black/white scanning colour modes |
Grayscale, Monochrome |
| Maximum scan size |
8.5 x 72" (215.9 x 1828.8 mm) |
| Optical scanning resolution |
600 x 600 DPI |
| Enhanced scan resolution |
1200 x 1200 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
48 bit |
| Output colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
15 ppm |
| ADF scan speed (colour, A4) |
15 ppm |
| Duplex ADF scan speed (colour, A4) |
30 ipm |
| Scan to |
E-mail, File, Image, Memory card, OCR |
| Design |
|---|
| Built-in display |
No |
| Scanner type |
Sheet-fed scanner |
| Product colour |
Black, White |
| Performance |
|---|
| Scan to |
E-mail, File, Image, Memory card, OCR |
| Scan drivers |
ICA, SANE, TWAIN, WIA |
| Scanning noise level |
53 dB |
| Internal memory |
512 MB |
| Compatible memory cards |
MicroSD (TransFlash) |
| Sound pressure level (max) |
42 dB |
| Input capacity |
|---|
| Standard input capacity |
1 sheets |
| Paper handling |
|---|
| Maximum scan width |
8.5" (21.6 cm) |
| Maximum scan length |
72" (182.9 cm) |
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Plain paper, Plastic Card |
| Card thickness (max) |
0.0488" (1.24 mm) |
| Ports & interfaces |
|---|
| USB connector type |
Micro-USB B |
| Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN |
| USB port |
Yes |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Network |
|---|
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi Direct |
Yes |
| Supported network protocols (IPv4) |
DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Scan drivers |
ICA, SANE, TWAIN, WIA |
| Sound emission |
|---|
| Scanning noise level |
53 dB |
| Power |
|---|
| Power consumption (typical) |
3.6 W |
| Power consumption (standby) |
2.2 W |
| Power consumption (off) |
0.11 W |
| Power supply type |
USB |
| Weight & dimensions |
|---|
| Width |
6.38" (162 mm) |
| Depth |
2.99" (76 mm) |
| Height |
14.8" (377 mm) |
| Weight |
20.8 oz (590 g) |
| Package depth |
6.38" (162 mm) |
| Package weight |
2.71 lbs (1.23 kg) |
| Package width |
14.8" (377 mm) |
| Package height |
2.99" (76 mm) |
| Packaging data |
|---|
| Package depth |
6.38" (162 mm) |
| Package weight |
2.71 lbs (1.23 kg) |
| Package width |
14.8" (377 mm) |
| Package height |
2.99" (76 mm) |
| Quantity per pack |
1 pc(s) |
| Products per pallet |
216 pc(s) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
Micro-USB |
| Warranty card |
Yes |
| Technical details |
|---|
| Maximum scan width |
8.5" (21.6 cm) |
| Pallet gross height |
6.26" (15.9 cm) |
| Black/white scanning colour modes |
Grayscale, Monochrome |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| Scanner type |
Sheet-fed scanner |
| Country of origin |
China |
| Compatible memory cards |
MicroSD (TransFlash) |
| Product colour |
Black, White |
| Layers per pallet |
8 pc(s) |
| Master (outer) cases per pallet |
72 pc(s) |
| Master (outer) cases per pallet layer |
9 pc(s) |
| Harmonized System (HS) code |
84716070 |
| Pallet type |
800 x 1200 mm |
| Memory |
|---|
| Internal memory |
512 MB |
| Features |
|---|
| Country of origin |
China |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Other features |
|---|
| Spare part retention |
5 year(s) |
| Pallet gross weight |
604.7 lbs (274.3 kg) |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Scanner type |
Sheet-fed scanner |
| Country of origin |
China |
| Products per pallet |
216 pc(s) |
| Layers per pallet |
8 pc(s) |
| Master (outer) cases per pallet |
72 pc(s) |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Pallet gross weight |
604.7 lbs (274.3 kg) |
| Country of origin |
China |
| Products per pallet |
216 pc(s) |
| Layers per pallet |
8 pc(s) |
| Master (outer) cases per pallet |
72 pc(s) |
| Quantity per pack |
1 pc(s) |
| Pallet gross height |
6.26" (15.9 cm) |
| Master (outer) cases per pallet layer |
9 pc(s) |
| Harmonized System (HS) code |
84716070 |
