DT, 180 x 180, Li-ion, Bluetooth, USB, 128 x 67 x 128 mm, 0.67 kg, Black
Key Features
- Print durable, colourful labels up to 24mm in width
- Compatible with PC and Mac (using USB) and smartphones/tablets (using Bluetooth)
- Built-in rechargeable lithium-ion battery - no need for alkaline batteries
- Recharges from any available USB port or USB recharger
- Create labels up to 500mm in length
- Compact design makes it easy to share with other office users
Description

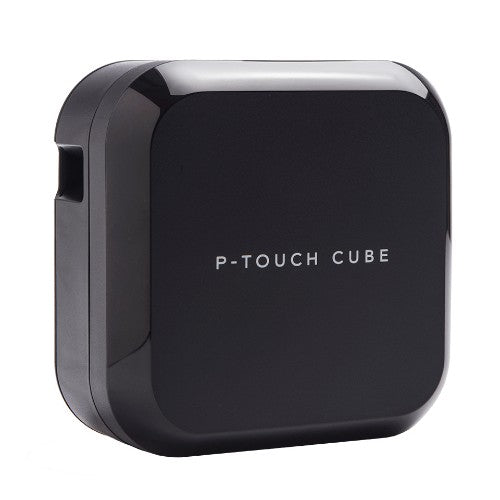

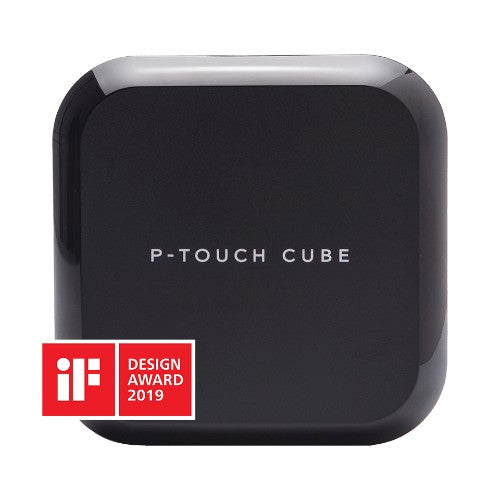

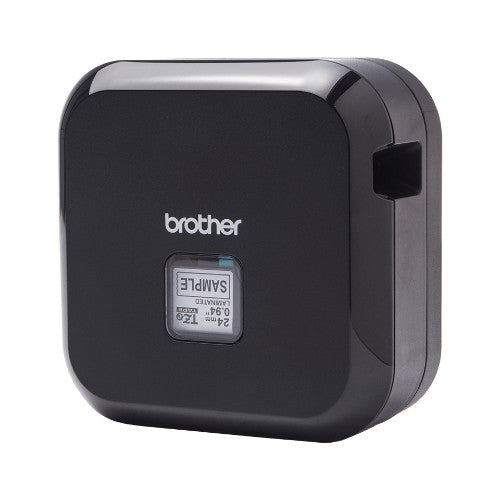

This stylish, compact label printer gives you a range of options to print labels around your office.
Design labels on your PC or Mac, and include images or company logos, barcodes, frames and special symbols. Or connect to your Apple or Android device using Bluetooth, then use Brother iPrint&Label or P-touch Design&Print apps to create and print labels from your smart device.
The built-in li-ion rechargeable battery with USB recharging ensures that the printer is ready to print a label wherever and whenever you want.
Specifications
| Print quality |
|---|
| Maximum resolution |
180 x 360 DPI |
| Maximum printing width |
0.709" (1.8 cm) |
| Maximum print height |
0.709" (1.8 cm) |
| Printing |
|---|
| Colour |
No |
| Print speed |
20 mm/sec |
| Maximum resolution |
180 x 360 DPI |
| Maximum printing width |
0.709" (1.8 cm) |
| Maximum print height |
0.709" (1.8 cm) |
| Print technology |
Thermal transfer |
| Display |
|---|
| Display |
No |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
No |
| Paper handling |
|---|
| Maximum label width |
0.945" (2.4 cm) |
| Maximum label length |
19.7" (0.5 m) |
| Autocutter |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| Connectivity technology |
Wired & Wireless |
| Bluetooth version |
2.1+EDR |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
No |
| USB port |
Yes |
| Performance |
|---|
| Tape width |
0.945" (2.4 cm) |
| Mobile operating systems supported |
Android, iOS |
| Tape type |
TZe |
| Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Cutter |
Yes |
| Design |
|---|
| Display |
No |
| Product colour |
Black |
| Built-in display |
No |
| Power |
|---|
| Battery voltage |
3.6 V |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
1870 mAh |
| Auto power off |
Yes |
| Technical details |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra |
| Product colour |
Black |
| Tape type |
TZe |
| Built-in barcodes |
AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Maximum label width |
0.945" (2.4 cm) |
| Maximum label length |
19.7" (0.5 m) |
| Country of origin |
China |
| Products per pallet |
216 pc(s) |
| Layers per pallet |
6 pc(s) |
| Master (outer) cases per pallet |
72 pc(s) |
| Tape width |
0.945" (2.4 cm) |
| Cutter |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Harmonized System (HS) code |
84433210 |
| Pallet type |
800 x 1200 mm |
| Software |
|---|
| Drivers included |
Yes |
| Battery |
|---|
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
1870 mAh |
| System requirements |
|---|
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Package width |
7.8" (198 mm) |
| Package depth |
3.86" (98 mm) |
| Package height |
8.27" (210 mm) |
| Width |
7.68" (195 mm) |
| Depth |
3.9" (99 mm) |
| Height |
8.15" (207 mm) |
| Weight |
30.2 oz (855 g) |
| Package weight |
2.65 lbs (1.2 kg) |
| Packaging data |
|---|
| Package width |
7.8" (198 mm) |
| Package depth |
3.86" (98 mm) |
| Package height |
8.27" (210 mm) |
| Package weight |
2.65 lbs (1.2 kg) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
| Cables included |
Micro-USB |
| Drivers included |
Yes |
| Batteries included |
Yes |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Products per pallet |
216 pc(s) |
| Layers per pallet |
6 pc(s) |
| Master (outer) cases per pallet |
72 pc(s) |
| Quantity per pack |
1 pc(s) |
| Country of origin |
China |
| Spare part retention |
5 year(s) |
| Logistics data |
|---|
| Pallet gross height |
5.91" (15 cm) |
| Master (outer) cases per pallet layer |
12 pc(s) |
| Pallet gross weight |
573 lbs (259.9 kg) |
| Products per pallet |
216 pc(s) |
| Layers per pallet |
6 pc(s) |
| Master (outer) cases per pallet |
72 pc(s) |
| Harmonized System (HS) code |
84433210 |
