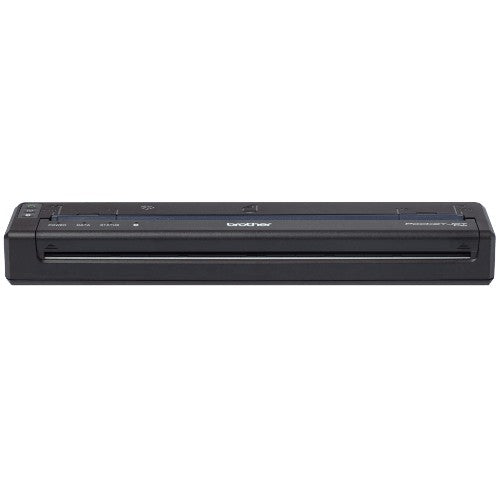

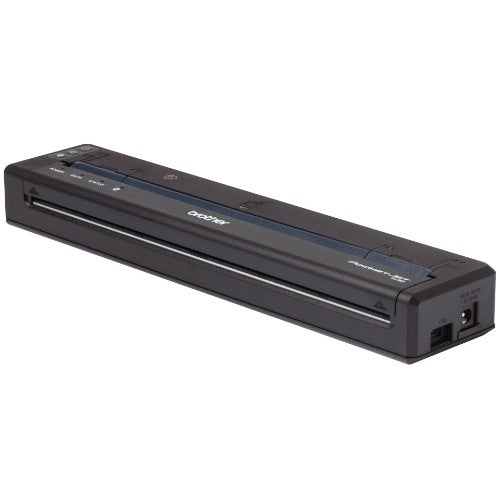

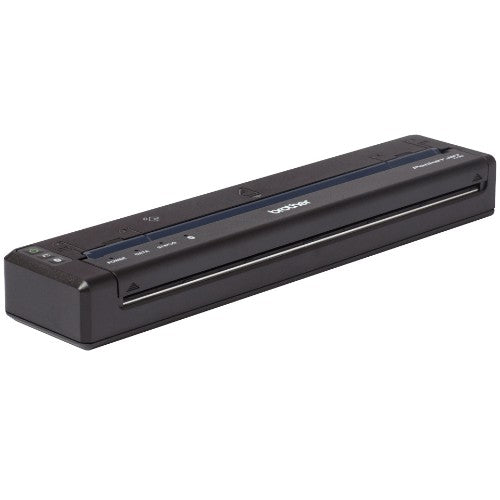

Mobile Thermal Printer, A4, 256MB RAM, 300 dpi, 13.5 ppm, USB, Bluetooth 5.2, 255(W) x 55(D) x 30(H) mm, 480 g
Key Features
- USB Type-C and Bluetooth connectivity
- 300dpi print resolution
- Up to 13.5ppm print speed
- Android, Windows, Mac and Linux support
- Optional high-capacity Li-ion battery for printing away from power sources
- Customise your print solution with vehicle mounting kit, chargers and protective cases
Description

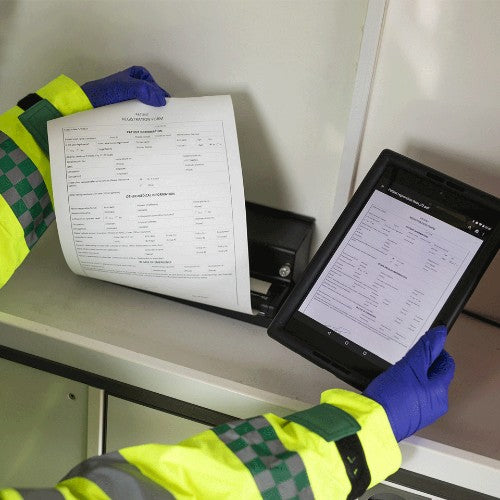

Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.
The PJ-863 supports both charging and data transfer via USB-C, as well as Bluetooth connectivity to provide a mobile A4 print solution which is compact enough to fit easily into a briefcase or computer bag, but that can also be permanently installed in vehicles.
Thermal print technology at 300x300dpi produces high-resolution, crisp text at a print speed of up to 13.5 pages per minute.
Compatible with a wide range of mobile and desktop operating systems, the PJ-863 can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available. Also supports a variety of printer command languages, including ZPL2 emulation.
Specifications
| Printing |
|---|
| Type |
Mobile printer |
| Print technology |
Direct thermal |
| Maximum resolution |
300 x 300 DPI |
| Printing characters |
2D barcode, Barcode, Text |
| Performance |
|---|
| Type |
Mobile printer |
| Print technology |
Direct thermal |
| Maximum resolution |
300 x 300 DPI |
| Built-in barcodes |
Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF, Industrial 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, Standard 2/5, UPC-A, UPC-E |
| Paper handling |
|---|
| Printing media thickness |
160 µm |
| Maximum printing width |
7.99" (20.3 cm) |
| Ports & interfaces |
|---|
| Bluetooth profiles |
GATT, HCRP, OPP, SSP |
| Connectivity technology |
Wired & Wireless |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| USB port |
Yes |
| USB connector |
USB Type-C |
| Bluetooth Low Energy (BLE) |
Yes |
| Print technology |
|---|
| Type |
Mobile printer |
| Print technology |
Direct thermal |
| Print quality |
|---|
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
7.99" (20.3 cm) |
| Technical details |
|---|
| Bluetooth profiles |
GATT, HCRP, OPP, SSP |
| Windows operating systems supported |
Yes |
| Mobile operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Maximum printing width |
7.99" (20.3 cm) |
| Product colour |
Black |
| Built-in barcodes |
Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF, Industrial 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, Standard 2/5, UPC-A, UPC-E |
| Features |
|---|
| Internal memory |
256 MB |
| Flash memory |
64 MB |
| Product colour |
Black |
| Built-in barcodes |
Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF, Industrial 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, Standard 2/5, UPC-A, UPC-E |
| Design |
|---|
| Product colour |
Black |
| Built-in display |
No |
| Display |
|---|
| Built-in display |
No |
| Memory |
|---|
| Internal memory |
256 MB |
| Flash memory |
64 MB |
| Power |
|---|
| Power source type |
USB |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Mobile operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Weight & dimensions |
|---|
| Width |
10" (255 mm) |
| Depth |
2.17" (55 mm) |
| Height |
1.18" (30 mm) |
| Weight |
16.9 oz (480 g) |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mobile operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
