StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key
Key Features
-
Versatile 2-in-1 Drive Adapter: Enable fast, tool-free access to an M.2 NVMe drive and a 2.5in/3.5in SATA SSD/HDD, or transfer data simultaneously through a single USB-C or USB-A 10Gbps host; Toaster-style M.2 slot optimizes airflow for peak performance
-
Ideal for Diagnostics and Troubleshooting: Quickly troubleshoot M.2 NVMe and 2.5/3.5in SATA drives to monitor drive health, test performance, or recover data; Use as a portable multi-interface drive dock for compatibility testing, disk imaging, or storage expansion
-
Portable and Self-Powered: Compact, lightweight design that fits into any IT toolkit; Runs on USB bus power when connected to one 2.5in SATA or M.2 NVMe drive, and includes a power adapter for dual-drive operation or high-draw SATA/NVMe drives
-
Driverless Setup and Broad Compatibility: Integrated USB-C cable with USB-A adapter ensures universal host access and driverless operation on Windows, macOS, and Linux; Supports PCIe Gen4 M.2 NVMe and SATA III up to 6 Gbps; NOTE: M.2 SATA is not supported
-
The IT Pro's Choice: Our external drive adapters are lab-tested for enterprise-grade performance, thermal efficiency, and OS compatibility; Ideal for secure backups and drive upgrades, and backed by free lifetime 24/5 multi-lingual technical assistance
Description
Access Ultra-Fast M.2 NVMe drives and SATA HDD/SSD storage via USB 10Gbps

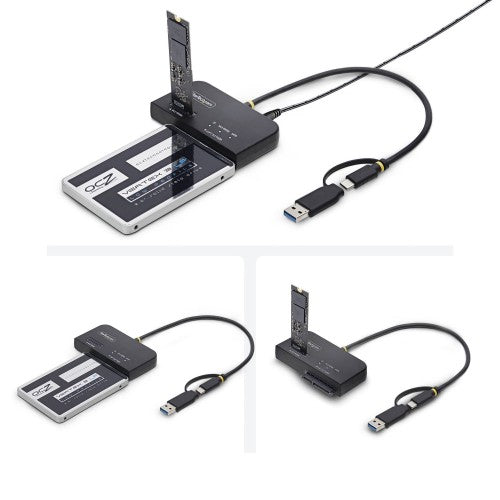

Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.
External Drive Access over USB-C and USB-A

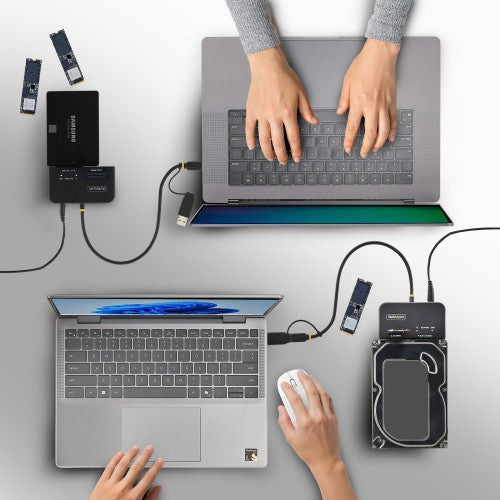

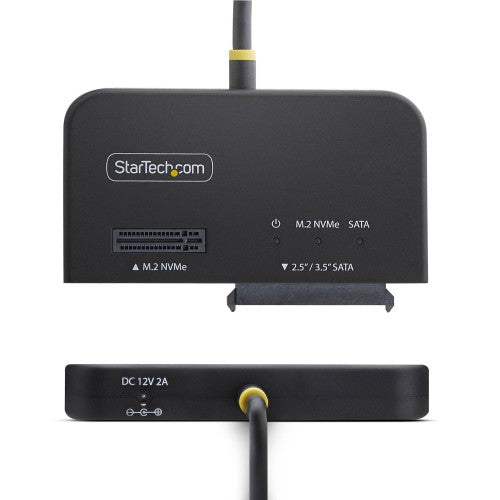

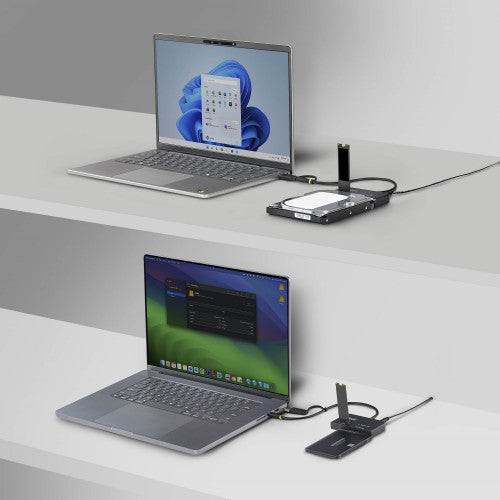

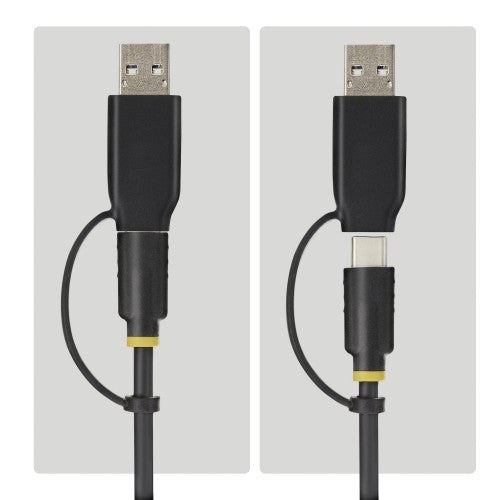

Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.
Compact Form Factor

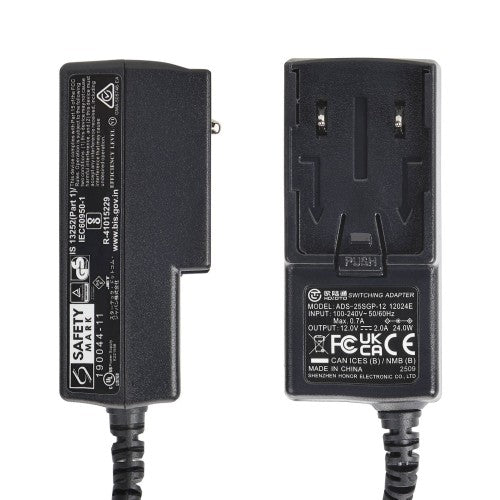

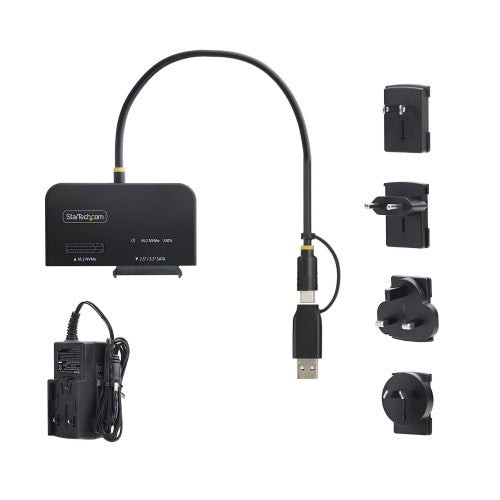

Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access.
Specifications
| Hard drive |
|---|
| Storage media type |
HDD, SSD |
| Storage drive interface |
M.2, Serial ATA III |
| Storage drive sizes supported |
2.5,3.5" |
| Number of storage drives supported |
2 |
| Ports & interfaces |
|---|
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Technical details |
|---|
| UASP support |
Yes |
| Package width |
7.48" (190 mm) |
| Package height |
2.13" (54 mm) |
| Maximum data transfer rate |
10 Gbit/s |
| Product colour |
Black |
| Material |
Acrylonitrile butadiene styrene (ABS) |
| Hot-swap |
Yes |
| Chipset |
JMS581DC |
| TRIM support |
Yes |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Features |
|---|
| UASP support |
Yes |
| Maximum data transfer rate |
10 Gbit/s |
| LED indicators |
Yes |
| Product colour |
Black |
| Material |
Acrylonitrile butadiene styrene (ABS) |
| Hot-swap |
Yes |
| Chipset |
JMS581DC |
| TRIM support |
Yes |
| Cooling |
|---|
| Number of fans |
0 fan(s) |
| Power |
|---|
| Power plug type |
Type H |
| AC input voltage |
12 V |
| Input current |
2 A |
| Output voltage |
12 V |
| Output current |
2 A |
| Weight & dimensions |
|---|
| Width |
3.48" (88.4 mm) |
| Depth |
14.2" (360.6 mm) |
| Height |
0.555" (14.1 mm) |
| Weight |
1.76 oz (50 g) |
| Packaging data |
|---|
| Package depth |
4.84" (123 mm) |
| Package width |
7.48" (190 mm) |
| Package height |
2.13" (54 mm) |
| Package weight |
11.6 oz (330 g) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| AC adapter included |
Yes |
| Interface adapters included |
USB Type-A male - USB Type-C female |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Indication |
|---|
| LED indicators |
Yes |
| Ethernet LAN features |
|---|
| LED indicators |
Yes |
| Other features |
|---|
| Chipset |
JMS581DC |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Logistics data |
|---|
| Master (outer) case width |
15.7" (400 mm) |
| Master (outer) case length |
11.4" (290 mm) |
| Master (outer) case height |
10.8" (275 mm) |
| Products per master (outer) case |
20 pc(s) |
