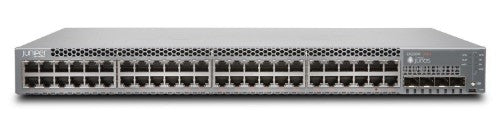

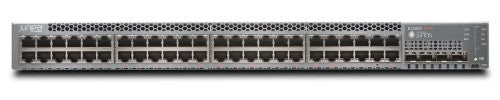

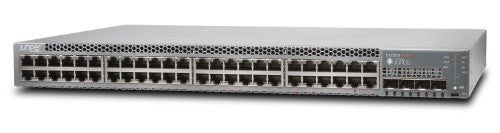

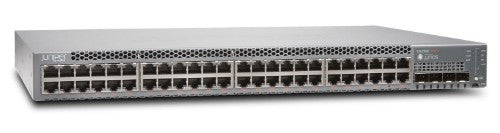

Juniper EX2300-48P network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE, 100W AC Power Consumption, 750W Total PoE Power Budget

Key Features

• Virtual Chassis technology enables up to four interconnected EX2300 switches to form a single logical device
• Flexible 1GbE SFP/10GbE SFP+ uplinks provide high-speed connectivity to aggregation layer switches or other upstream devices
• Up to 48 10/100/1000BASE-T ports are available with or without PoE/PoE+
• Models offering 24 and 48 multigigabit ports support 1GbE/2.5GbE on 8 and 16 ports, respectively
• Energy Efficient Ethernet (EEE) support is provided on 1GbE ports
• Complete Layer 2 and basic Layer 3 switching capabilities are available
• Simplified onboarding and management with Juniper Mist Wired Assurance

Description

The Juniper Networks® EX2300 line of Ethernet switches offers a compact, high-performance solution for supporting today’s converged network access deployments.

Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding, even with all control plane features enabled. Based on existing, field-proven Juniper Networks technology, the PFE brings the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers bring to the world’s largest service provider networks.

Select EX2300 models also support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones in converged networks. The PoE-enabled EX2300 switches include a maximum system budget of 750 watts to deliver up to 30 watts to select ports.

Multiple EX2300 models are available, including versions offering multigigabit (up to 2.5 Gbps) PoE+ access ports that can accommodate higher-speed IEEE 802.11ac Wave 2 access points, enabling the switches to support more wireless users.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fiber ports quantity	4
Fiber optic connector	SFP, SFP+
Virtual LAN features
VLAN support	Yes
Number of VLANs	4093
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Voice VLAN
Data transmission
Number of VLANs	4093
Jumbo frames	9216
Throughput	130 Mpps
MAC address table	16000 entries
Jumbo frames support	Yes
Static route	Yes
Optical fiber
Fiber optic connector	SFP, SFP+
Technical details
Form factor	1U
Product colour	Black
Processor frequency	1250 MHz
Noise level	51.4 dB
Rack mounting	Yes
Built-in processor	Yes
Compliance certificates	RoHS
Management features
Switch type	Managed
MIB support	RFC 1155 Structure of Management Information (SMI) RFC 1157 SNMPv1 RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-like MIB, and TRAPs RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 1724 RIPv2 MIB RFC 1905 RFC 1907 SNMP v2c, SMIv2 and Revised MIB-II RFC 1981 Path MTU Discovery for IPv6 RFC 2011 SNMPv2 Management Information Base for the IP using SMIv2 RFC 2012 SNMPv2 Management Information Base for the Transmission Control Protocol using SMIv2 RFC 2013 SNMPv2 Management Information Base for the User Datagram Protocol using SMIv2 RFC 2096 IPv4 Forwarding Table MIB RFC 2287 System Application Packages MIB RFC 2460 IPv6 Specification RFC 2464 Transmission of IPv6 Packets over Ethernet Networks RFC 2570-2575 SNMPv3, User-based Security, Encryption, and Authentication RFC 2576 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework RFC 2578 SNMP Structure of Management Information MIB RFC 2579 SNMP Textual Conventions for SMIv2 RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 2819 RMON MIB RFC 2863 The Interfaces Group MIB RFC 2922 LLDP MIB RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations RFC 3413 SNMP Application MIB RFC 3414 User-based Security Model for SNMPv3 RFC 3415 View-based Access Control Model (VACM) for SNMP RFC 3484 Default Address Selection for IPv6 RFC 3621 PoE-MIB (PoE switches only) RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6 RFC 4188 STP and Extensions MIB RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers RFC 4291 IPv6 Addressing Architecture RFC 4363 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and VLAN Extensions RFC 4443 ICMPv6 for the IPv6 Specification RFC 4861 Neighbor Discovery for IPv6 RFC 4862 IPv6 Stateless Address Autoconfiguration Draft – blumenthal – aes – usm - 08 Draft – reeder - snmpv3 – usm - 3desede -00
Switch layer	L2/L4
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Number of VLANs	4093
Auto MDI/MDI-X	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Voice VLAN
Security
Security algorithms	HTTPS
Authentication type	HWTACACS+, NAC SSH V2.0, RADIUS
Access Control List (ACL) ingress	256
Access Control List (ACL) egress	256
DHCP features	DHCP client, DHCP relay, DHCP server
Protocols
Routing protocols	OSPF, OSPFv2, RIP-1, RIP-2
Certificates
Certification	UL-UL60950-1 (Second Edition), C-UL to CAN/CSA 22.2, No.60950-1 (Second Edition), TUV/GS to EN 60950-1 (Second Edition), CB-IEC60950-1 (Second Edition with all country deviations), EN 60825-1 (Second Edition) FCC 47CFR Part 15 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 22 Class A, EN 55024, EN 300386, CE
Memory
Memory type	DRAM
Internal memory	2000 MB
Flash memory	2000 MB
Design
Form factor	1U
Product colour	Black
Certification	UL-UL60950-1 (Second Edition), C-UL to CAN/CSA 22.2, No.60950-1 (Second Edition), TUV/GS to EN 60950-1 (Second Edition), CB-IEC60950-1 (Second Edition with all country deviations), EN 60825-1 (Second Edition) FCC 47CFR Part 15 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 22 Class A, EN 55024, EN 300386, CE
Rack mounting	Yes
Temperature sensor	Yes
Performance
Processor frequency	1250 MHz
Noise level	51.4 dB
Memory type	DRAM
Internal memory	2000 MB
Flash memory	2000 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Width	17.4" (441.9 mm)
Depth	12.2" (309.8 mm)
Height	1.75" (44.5 mm)
Weight	11.1 lbs (5.02 kg)
Logistics data
Harmonized System (HS) code	85176990
