Icy Dock ToughArmor MB873MP-B V2 SSD enclosure Black 5.25"

8 Bay M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 5.25" Drive Bay (8 x OCuLink SFF-8612)

Key Features

• Supports 8 x PCIe M.2 NVMe SSDs of all lengths - 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)
• Installs into 1 x standard external 5.25" optical drive bay
• Uses 8 x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
• Supports PCIe 4.0 specifications with transfer rates up to 64Gbps per drive bay
• Powers 8 x M.2 SSDs through 2 x 15 - pin SATA power connectors
• Rugged, full-metal enclosure meets flammability requirements

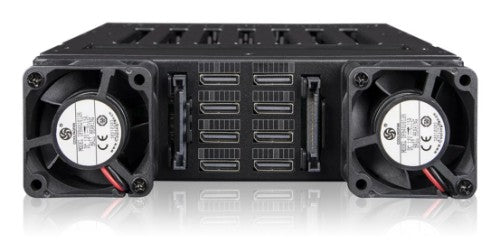

• Equipped with high-performance dual 40 x 20mm cooling fans

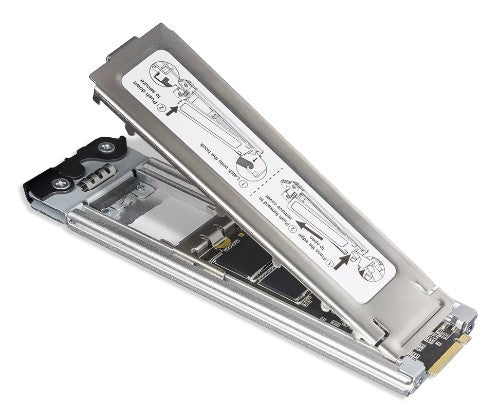

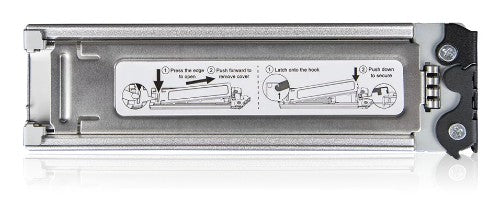

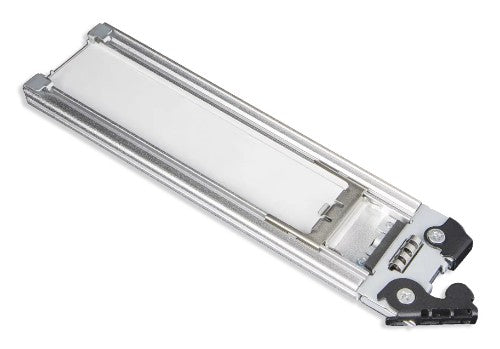

• Removable drive tray with tool-less drive installation for easy drive maintenance
• Huge heatsink trays with thermal pads included dispersing heat from the drive
• Anti-Vibration Technology - Creates a safe environment for SSDs
• Active Power Technology - Saves power by shutting off the enclosure when no drive is installed
• EMI Grounding protects SSDs from electrical damage
• Drive ID plugs are included to keep track of your drives
• Eagle-hook tray latch securely holds the drive tray inside the enclosure
• Supports SATA 15-pin and OCuLink cables with locking latch design for a secure connection
• 2 x SATA 15pin power cables are included
• Industry-leading 5 years limited warranty with exceptional customer support

Description

Introducing the ToughArmor MB873MP-B V2, a rugged and removable 8 x M.2 PCIe 4.0 NVMe SSD enclosure specially designed to fit into a 5.25" optical drive bay. This powerful enclosure offers exceptional performance, supporting lightning-fast data transfer rates of up to 64Gbps via the OCuLink (SFF-8612) interface, and is compatible with Tri-mode host cards. It is made out of heavy-duty full-metal construction and uses removable M.2 SSD trays that support tool-less drive installation/removal for effortless drive maintenance. In addition, the MB873MP-B V2 is equipped with dual 40x20mm cooling fans in the rear to remove the heat generated by the high-speed PCIe 4.0 SSD for the best cooling performance.

Specifications

Storage
Number of storage drives supported	1
Storage drive size	5.25"
Supported storage drive interfaces	M.2
Technical details
Number of fans	2 fan(s)
Material	Metal
Fan diameter	1.57" (4 cm)
Data transfer rate	64 Gbit/s
Product colour	Black
Design
Product type	SSD enclosure
Number of fans	2 fan(s)
Material	Metal
Fan diameter	1.57" (4 cm)
Product colour	Black
Performance
Data transfer rate	64 Gbit/s
Packaging data
Package weight	2.54 lbs (1.15 kg)
Operational conditions
Storage temperature (T-T)	-35 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Weight & dimensions
Weight	2.51 lbs (1.14 kg)
Width	5.75" (146 mm)
Depth	1.63" (41.3 mm)
Height	6.61" (167.8 mm)
Package weight	2.54 lbs (1.15 kg)
Packaging content
Manual	Yes
