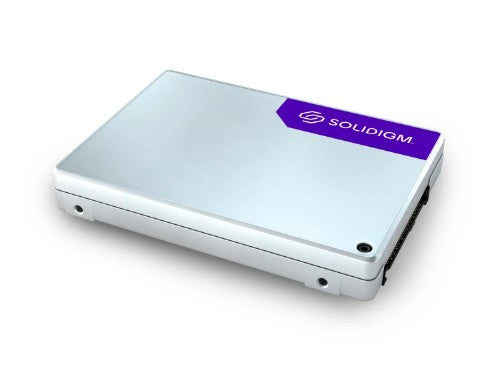

Solidigm D5-P5336 U.2 61.4 TB PCI Express 4.0 NVMe QLC 3D NAND

61.44TB, U.2, PCIe 4.0 x4, QLC 3D NAND, NVMe, 1005k IOPS Read, 42600 IOPS Write, 150g

Description

D5-P5336
Optimized for the edge to the core, the D5-P5336 is a hyper-scalable, cost-effective solution for data- and read-intensive workloads that lets you efficiently accelerate data, no matter where it lives.

Value. Performance. Density. Pick Three.
Your storage solution shouldn’t compromise on value, performance, or density. With the Solidigm D5-P5336 you don't need to sacrifice, as you get them all. Massive scalability and read-optimized performance are finally available at a price point that substantially improves TCO.

Massive Scalability for High-Density Storage Environments
From data pipelines and data lakes to content delivery networks and cloud storage, if your application demands storing and accessing vast amounts of data efficiently at speed, the D5-P5336 has got your number. With up to 61.44TB capacity, you can store up to 2PB in a 1U chassis.

Significantly Improve TCO Across a Broad Range of Configurations
The D5-P5336 offers substantial TCO savings of up to 61% and reduces energy costs by 6X compared to TLC SSD + HDD hybrid storage arrays.

Accelerate Data in Widely Adopted, Read/Data-Intensive Workloads
Made to perform equally well in the heart of a data center or in an edge deployment, the D5-P5336 efficiently accelerates more data, in widely adopted, read/data-intensive workloads, delivering up to 2.3X faster read performance than some TLC SSDs and nearly 600X faster reads than leading SAS HDDs.

Deploy With Confidence
Solidigm D5 Series drives are designed and tested with a passion for—and a relentless focus on—quality and reliability. Our data reliability is enhanced on multiple levels with additional circuitry for critical data integrity functions, as well as testing that goes above and beyond industry specifications and common practices.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	61.4 TB
Memory type	QLC 3D NAND
Data transmission
Random write (4KB)	42600 IOPS
Random read (4KB)	1005000 IOPS
Write latency	25 µs
Read latency	110 µs
Security
Security algorithms	192-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Performance
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
PCI Express interface data lanes	x4
SSD capacity	61.4 TB
Security algorithms	192-bit AES
Memory type	QLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	42600 IOPS
Random read (4KB)	1005000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	25 µs
Read latency	110 µs
Hardware encryption	Yes
PCI Express CEM revision	4.0
Design
Component for	Server/workstation
Protection features	Shock resistant, Vibration proof
SSD form factor	U.2
Features
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
PCI Express interface data lanes	x4
SSD capacity	61.4 TB
Security algorithms	192-bit AES
Protection features	Shock resistant, Vibration proof
Memory type	QLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	42600 IOPS
Random read (4KB)	1005000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	25 µs
Read latency	110 µs
Hardware encryption	Yes
SSD form factor	U.2
PCI Express CEM revision	4.0
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G162706L3
Target workload	Mixed Use (MU)
Drive writes per day (DWPD)	0.58
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Protection features	Shock resistant, Vibration proof
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Hardware encryption	Yes
SSD form factor	U.2
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
