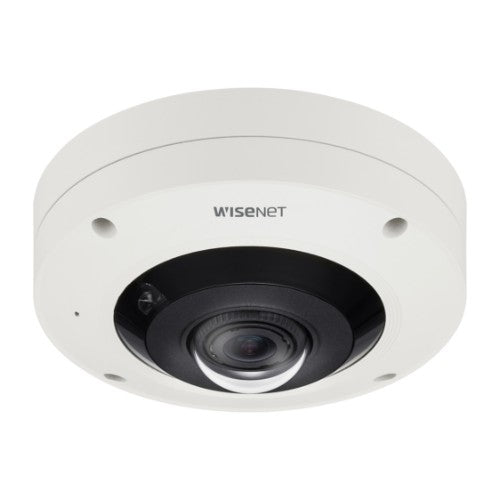

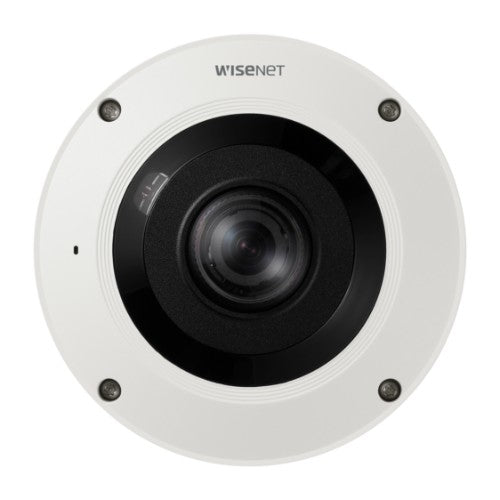

Hanwha XNF-9010RV security camera Dome IP security camera Outdoor 3008 x 3008 pixels Ceiling/wall
Description
Key Features
- 1/2.3” 12MP CMOS
- 1.08mm fixed focal lends
- Stereo graphic type lens, enhanced resolution
- for the peripheral regions
- Fisheye, Single panorama, Double panorama
- Quad view
- On board dewarping, Digital PTZ
- Extreme WDR (120dB)
- H.265, H.264, MJPEG codec supported
- WiseStreamII support
- Wise IR, IR viewable length 10m
- Plugin support, selectable I/O port
- Advanced Video Analytics, Business
- Intelligence: Heatmap, People counting
- Queue management
- IP66/IK10/NEMA4X
Description
POWERED BY WN7, 1/2.3" 12MPCMOS, MAX RESOLUTION3008X3008 @ 30FPSSpecifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum |
| Camera | |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter speed | 1/5 - 1/12000 s |
| Lens viewing angle, horizontal | 187° |
| Lens viewing angle, vertical | 187° |
| Lens viewing angle, diagonal | 187° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 1/2.3" |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.2 |
| Closest focusing distance | 19.7" (0.5 m) |
| Fixed focal length | 0.0425" (1.08 mm) |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 3008 x 3008 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 12 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP |
| Storage | |
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.265 |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Anti-flicker | Yes |
| Material | |
| Housing material | Aluminum |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 9.1 W |
| Power consumption (Power over Ethernet (PoE)) | 11 W |
| DC output voltage | 12 |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 2.83" (72 mm) |
| Diameter | 6.3" (16 cm) |
| Weight | 2.43 lbs (1.1 kg) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265 |
