Description
WiFi 7, 5762 Mbps, Internal antennas x 7, RAM 1GB , Flash 128MB, RJ-45 x 4, USB 3.0 x1, 159 x 72 x 186 mm, White
Tri-band Wi-Fi 7 speeds up to 9.4 Gbps with 6 GHz Wi-Fi, MLO, and 4K-QAM
AI-powered Smart AiMesh boosts coverage up to 5800 ft2 (2-pack) and easy extendibility with compatible ASUS routers for seamless and secure whole home Wi-Fi
Seven internal antennas and eight high-power front-end modules eliminates Wi-Fi dead zones
24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs
IoT Network, parental controls & VPN easy setup on multiple devices with Smart Home Master SSIDs
Flexible Ethernet ports for robust wired backhaul
4G LTE/5G Mobile Tethering for always-on internet
Country of Origin: Taiwan. TAA compliant.
ASUS ZenWiFi BT6
Worry-Free Smart Home Mesh
The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free Wi-Fi. The ASUS ZenWiFi BT6 raises the bar for whole-home mesh with Wi-Fi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 9.4 Gbps and unleashes superior 6 GHz Wi-Fi. Along with an ultra-high-speed 2.5-gigabit Ethernet port and a suite of advanced network and security technologies, this mesh Wi-Fi system is ready for the future of your smart home network today.
DESIGN
The Pinnacle of Wi-Fi
ASUS ZenWiFi BT6 embodies an unwavering commitment to developing incredible in-house Wi-Fi and network technologies. Seamlessly connect to your family and friends within a worry-free connected experience.
Incredible Comes From
Wi-Fi 7
IEEE 802.11be

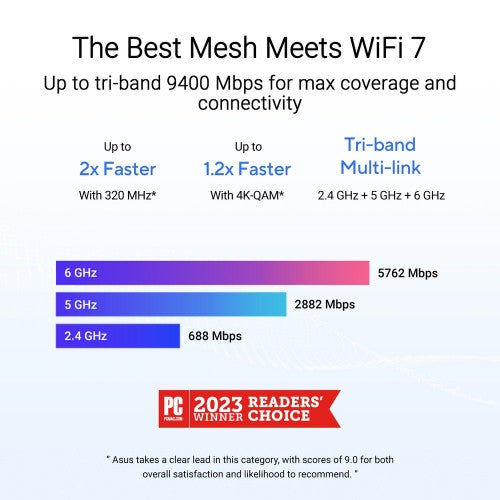

Wi-Fi 7 Powering Premium Mesh
The ZenWiFi BT6 boasts cutting-edge Wi-Fi 7 technology. This superior tri-band mesh system unleashes the full potential of Wi-Fi 7 with wired backhaul options. Enjoy a next-generation connected experience for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation and AI.
Superior 6 GHz Wi-Fi
Boasting a superior 6 GHz band, ZenWiFi BT6 unleashes blazing-fast tri-band Wi-Fi 7 speeds up to 9.4 Gbps. It ensures comprehensive Wi-Fi compatibility for a wide range of devices, from cutting-edge Wi-Fi 6E mobile devices to legacy IoT devices.
Comprehensive MLO Support
Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands. ZenWiFi BT6 is built to be future-proof with all Wi-Fi 7 devices, regardless of the MLO mode they use.
Ultrawide 320 MHz Channels
Wi-Fi 7 introduces ultrawide 320 MHz channel bandwidth in the 6 GHz band, doubling data transmission capacity. This allows for significantly more simultaneous transmissions at the fastest possible speeds.
Efficient 4K-QAM Transmission
Compared to 1024-QAM with Wi-Fi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission.
MESH TECHNOLOGY

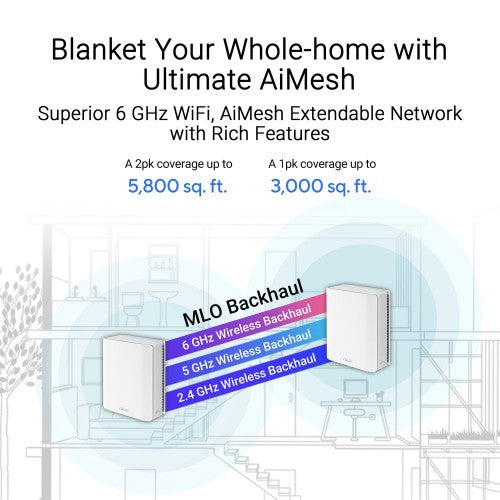

AI-Boosted Smart AiMesh
ZenWiFi BT6 harnesses the power of Wi-Fi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.
Intelligent Mesh Backhaul
Smart AiMesh backhaul intelligently leverages Wi-Fi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.
Scalable Wired Connectivity
Experience stable, superfast speeds even in homes with thick walls. You can flexibly extend wired mesh backhaul between mesh nodes for strong, seamless connectivity, ensuring your entire home network stays connected.
Smart MLO Connect
Smart AiMesh uses Multi-link Operation to achieve a faster connection. Intelligent algorithms direct low-priority packets to the less congested band, ensuring that high-priority packets remain lightning-fast for optimal data transmission.
Values Beyond Extension
AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security and smart home features across your entire network.
PERFORMANCE
Engineered for Always-Connected Home
ASUS engineering shines in ZenWiFi BT6's robust design, delivering superior coverage and unrivaled reliability.

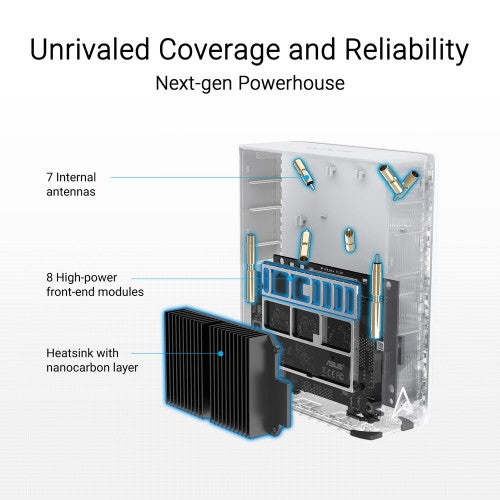

Unrivaled Coverage and Reliability
With seven internal antennas and eight high-power front-end modules, the ZenWiFi BT6 eliminates WiFi dead zones, delivering consistent coverage in all directions. Efficient heat dissipation also maintains cool and quiet operation for enhanced performance and long-lasting reliability.
Next-gen Powerhouse
Fueled by a powerful CPU and 1 GB of RAM, the ZenWiFi BT6 delivers exceptional processing power. This unleashes advanced features, optimizing your network for smoother 8K streaming, HDR gaming and an enhanced AI network experience.

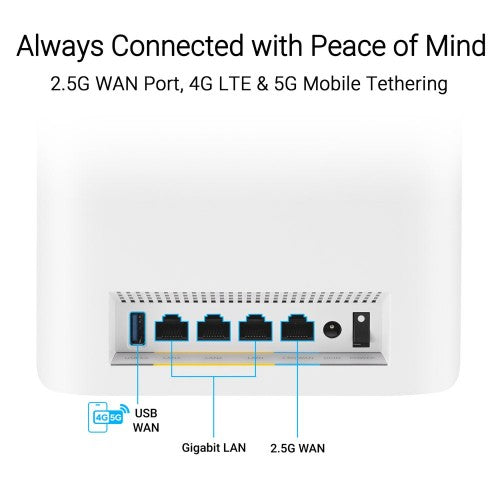

Next-Gen Connectivity
Embrace the future of 2.5G home networking with the ZenWiFi BT6.
NETWORK SECURITY
Safeguard Everyone and Every Connected Device
In a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats, and ensure seamless protection for all your connected devices and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection, and secure connections.

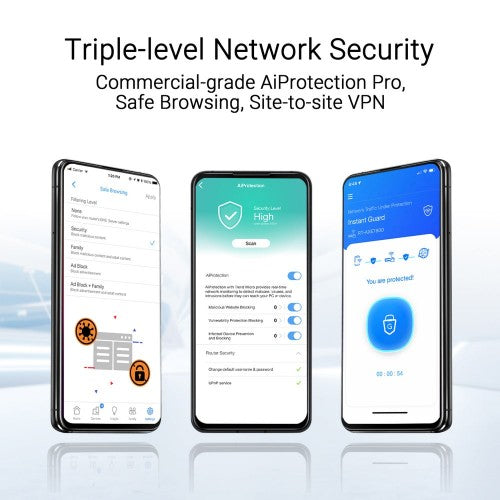

Comprehensive Triple-level Protection
Robust router safeguards with commercial-grade cloud protection powered by Trend Micro™ shield your smart home network, while feature-packed controls and management empower every member of your household to manage their connected devices securely for ever-evolving cybersecurity landscape. Additionally, advanced encrypted connection protects your online activity and data, keeping them private and secure.
- Top-Notch Security Within Reach
The intuitive ASUSWRT interface and mobile router app let you easily monitor, control and manage your network security, including advanced features such as VPNs.
- Top-Notch Security Within Reach
AiMesh technology ensures your whole-home Wi-Fi remains protected under the same SSID. The new Smart Home Master unlocks even more advanced settings for further customization.
- One-Stop Solutions
ASUS partners with trusted security and VPN solution providers to offer one-stop security solutions with optimal network performance.
USER FRIENDLY
Router Protection Made Easy
ASUS Network Security includes convenient network tools such as a one-tap Security Scans for diagnosing network health, fine-tuned settings options, and on-the-go notifications.
- Instant Notifications
Receive instant notifications for new device connections to block unknown devices from accessing your network or group new devices into a user profile.
- Auto Security Updates
Secure your router with integrated defense measures that continuously update and scan to protect against malware and emerging threats.
NETWORK SEGMENTATION

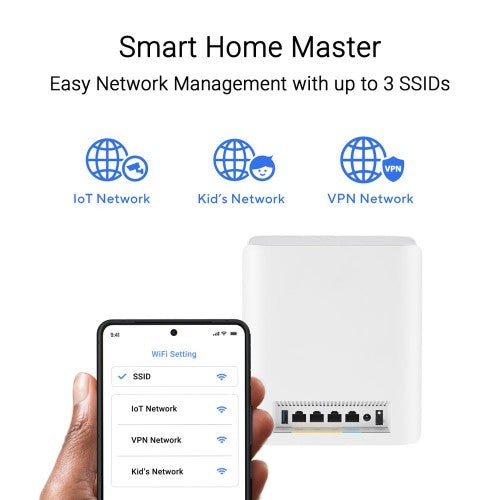

Feature-Packed Smart Home Master SSIDs
ASUS Smart Home Master subnetwork management streamlines the process of creating or connecting to dedicated SSIDs with advanced features like parental controls and VPNs.
IoT Network
Set up and manage all your IoT devices under one secure SSID to provide enhanced security with commercial-grade protection.
- Kid’s Network
Create a dedicated SSID just for the kids to easily manage their screen time without needing to configure each device individually.
- VPN Network
Connect to your preferred VPN service with a single click through a dedicated subnetwork.

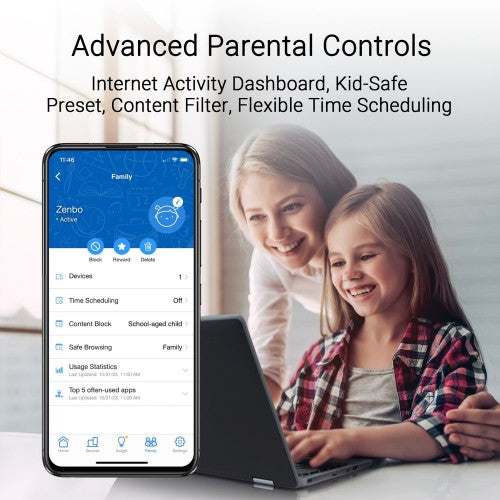

PARENTAL CONTROLS
Safer, Smarter Family Protection
Advanced family protection and parental controls empower you to nurture a balanced digital life for you and your kids, all without subscriptions.
VPN
Stay Protected Anywhere, Anytime
Enjoy secure browsing, data privacy, remote access – extensive ASUS VPN capabilities handle it all. The ZenWiFi BT6 supports versatile VPN protocols, including the cutting-edge WireGuard® for lightning-fast speeds and optimal performance.
Instant Guard
When away from home, ASUS Instant Guard gives you a one-tap secure VPN, and you can even easily share it with your family and friends through a URL link.
Multiple VPN Connection
Connect to multiple encrypted VPN tunnels simultaneously while maintaining the Internet access without interruption.
ASUS ROUTER APP
Three-Step Easy Setup, Powerful Controls
The intuitive interface of the ASUS Router mobile app makes managing your network simple on your smartphone. Simply follow the on-screen directions, and you will be up and running in no time!
Key Features
- Tri-band WiFi 7 speeds up to 9.4 Gbps with 6 GHz WiFi, MLO, and 4K-QAM
- AI-powered Smart AiMesh boosts coverage up to 5800 ft2 (2-pack) and easy extendibility with compatible ASUS routers for seamless and secure whole home WiFi
- Seven internal antennas and eight high-power front-end modules eliminates WiFi dead zones
- 24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs
- IoT Network, parental controls & VPN easy setup on multiple devices with Smart Home Master SSIDs
- Flexible Ethernet ports for robust wired backhaul
- 4G LTE/5G Mobile Tethering for always-on internet
Description
Tri-band Wi-Fi 7 (802.11be) Smart AiMesh Extendable Router, 6 GHz Wi-Fi, 9.4 Gbps, Coverage up to 5800 sq. ft. (2pk), 2.5G WAN Port, Up to 3 SSIDs for IoT Devices, Parental Controls & VPNs, Advanced Network SecurityTri-band Wi-Fi 7 speeds up to 9.4 Gbps with 6 GHz Wi-Fi, MLO, and 4K-QAM
AI-powered Smart AiMesh boosts coverage up to 5800 ft2 (2-pack) and easy extendibility with compatible ASUS routers for seamless and secure whole home Wi-Fi
Seven internal antennas and eight high-power front-end modules eliminates Wi-Fi dead zones
24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs
IoT Network, parental controls & VPN easy setup on multiple devices with Smart Home Master SSIDs
Flexible Ethernet ports for robust wired backhaul
4G LTE/5G Mobile Tethering for always-on internet
Country of Origin: Taiwan. TAA compliant.
ASUS ZenWiFi BT6
Worry-Free Smart Home Mesh
The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free Wi-Fi. The ASUS ZenWiFi BT6 raises the bar for whole-home mesh with Wi-Fi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 9.4 Gbps and unleashes superior 6 GHz Wi-Fi. Along with an ultra-high-speed 2.5-gigabit Ethernet port and a suite of advanced network and security technologies, this mesh Wi-Fi system is ready for the future of your smart home network today.
DESIGN
The Pinnacle of Wi-Fi
ASUS ZenWiFi BT6 embodies an unwavering commitment to developing incredible in-house Wi-Fi and network technologies. Seamlessly connect to your family and friends within a worry-free connected experience.
Incredible Comes From
Wi-Fi 7
IEEE 802.11be
Wi-Fi 7 Powering Premium Mesh
The ZenWiFi BT6 boasts cutting-edge Wi-Fi 7 technology. This superior tri-band mesh system unleashes the full potential of Wi-Fi 7 with wired backhaul options. Enjoy a next-generation connected experience for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation and AI.
Superior 6 GHz Wi-Fi
Boasting a superior 6 GHz band, ZenWiFi BT6 unleashes blazing-fast tri-band Wi-Fi 7 speeds up to 9.4 Gbps. It ensures comprehensive Wi-Fi compatibility for a wide range of devices, from cutting-edge Wi-Fi 6E mobile devices to legacy IoT devices.
Comprehensive MLO Support
Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands. ZenWiFi BT6 is built to be future-proof with all Wi-Fi 7 devices, regardless of the MLO mode they use.
Ultrawide 320 MHz Channels
Wi-Fi 7 introduces ultrawide 320 MHz channel bandwidth in the 6 GHz band, doubling data transmission capacity. This allows for significantly more simultaneous transmissions at the fastest possible speeds.
Efficient 4K-QAM Transmission
Compared to 1024-QAM with Wi-Fi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission.
MESH TECHNOLOGY
AI-Boosted Smart AiMesh
ZenWiFi BT6 harnesses the power of Wi-Fi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.
Intelligent Mesh Backhaul
Smart AiMesh backhaul intelligently leverages Wi-Fi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.
Scalable Wired Connectivity
Experience stable, superfast speeds even in homes with thick walls. You can flexibly extend wired mesh backhaul between mesh nodes for strong, seamless connectivity, ensuring your entire home network stays connected.
Smart MLO Connect
Smart AiMesh uses Multi-link Operation to achieve a faster connection. Intelligent algorithms direct low-priority packets to the less congested band, ensuring that high-priority packets remain lightning-fast for optimal data transmission.
Values Beyond Extension
AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security and smart home features across your entire network.
PERFORMANCE
Engineered for Always-Connected Home
ASUS engineering shines in ZenWiFi BT6's robust design, delivering superior coverage and unrivaled reliability.
Unrivaled Coverage and Reliability
With seven internal antennas and eight high-power front-end modules, the ZenWiFi BT6 eliminates WiFi dead zones, delivering consistent coverage in all directions. Efficient heat dissipation also maintains cool and quiet operation for enhanced performance and long-lasting reliability.
Next-gen Powerhouse
Fueled by a powerful CPU and 1 GB of RAM, the ZenWiFi BT6 delivers exceptional processing power. This unleashes advanced features, optimizing your network for smoother 8K streaming, HDR gaming and an enhanced AI network experience.
Next-Gen Connectivity
Embrace the future of 2.5G home networking with the ZenWiFi BT6.
NETWORK SECURITY
Safeguard Everyone and Every Connected Device
In a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats, and ensure seamless protection for all your connected devices and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection, and secure connections.
Comprehensive Triple-level Protection
Robust router safeguards with commercial-grade cloud protection powered by Trend Micro™ shield your smart home network, while feature-packed controls and management empower every member of your household to manage their connected devices securely for ever-evolving cybersecurity landscape. Additionally, advanced encrypted connection protects your online activity and data, keeping them private and secure.
- Top-Notch Security Within Reach
The intuitive ASUSWRT interface and mobile router app let you easily monitor, control and manage your network security, including advanced features such as VPNs.
- Top-Notch Security Within Reach
AiMesh technology ensures your whole-home Wi-Fi remains protected under the same SSID. The new Smart Home Master unlocks even more advanced settings for further customization.
- One-Stop Solutions
ASUS partners with trusted security and VPN solution providers to offer one-stop security solutions with optimal network performance.
USER FRIENDLY
Router Protection Made Easy
ASUS Network Security includes convenient network tools such as a one-tap Security Scans for diagnosing network health, fine-tuned settings options, and on-the-go notifications.
- Instant Notifications
Receive instant notifications for new device connections to block unknown devices from accessing your network or group new devices into a user profile.
- Auto Security Updates
Secure your router with integrated defense measures that continuously update and scan to protect against malware and emerging threats.
NETWORK SEGMENTATION
Feature-Packed Smart Home Master SSIDs
ASUS Smart Home Master subnetwork management streamlines the process of creating or connecting to dedicated SSIDs with advanced features like parental controls and VPNs.
IoT Network
Set up and manage all your IoT devices under one secure SSID to provide enhanced security with commercial-grade protection.
- Kid’s Network
Create a dedicated SSID just for the kids to easily manage their screen time without needing to configure each device individually.
- VPN Network
Connect to your preferred VPN service with a single click through a dedicated subnetwork.
PARENTAL CONTROLS
Safer, Smarter Family Protection
Advanced family protection and parental controls empower you to nurture a balanced digital life for you and your kids, all without subscriptions.
VPN
Stay Protected Anywhere, Anytime
Enjoy secure browsing, data privacy, remote access – extensive ASUS VPN capabilities handle it all. The ZenWiFi BT6 supports versatile VPN protocols, including the cutting-edge WireGuard® for lightning-fast speeds and optimal performance.
Instant Guard
When away from home, ASUS Instant Guard gives you a one-tap secure VPN, and you can even easily share it with your family and friends through a URL link.
Multiple VPN Connection
Connect to multiple encrypted VPN tunnels simultaneously while maintaining the Internet access without interruption.
ASUS ROUTER APP
Three-Step Easy Setup, Powerful Controls
The intuitive interface of the ASUS Router mobile app makes managing your network simple on your smartphone. Simply follow the on-screen directions, and you will be up and running in no time!
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 7 |
| Reset button | Yes |
| Wireless LAN features | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3-Personal, WPS |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |
| Guest access | Yes |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| WLAN data transfer rate (third band) | 5762 Mbit/s |
| WLAN data transfer rate (max) | 5762 Mbit/s |
| Features | |
| Parental control | Yes |
| Internal memory | 1000 MB |
| Flash memory | 128 MB |
| Parental control features | Time controls |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 6.26" (159 mm) |
| Depth | 2.83" (72 mm) |
| Height | 7.32" (186 mm) |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 2 pc(s) |
| Quick installation guide | Yes |
