Intel Core i5-14500 (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core i5-14500 (24MB Cache)
- 16GB DDR5-SDRAM (2 x 8) & 512GB SSD
Description
Powerful, expandable and always reliable

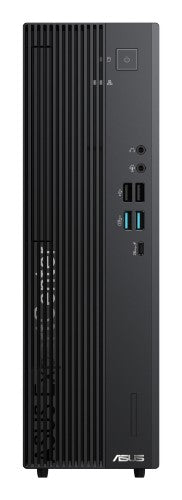

Powerful, expandable and always reliableThe ASUS ExpertCenter D7 SFF desktop with AI-driven Microsoft Copilot combines high performance, enterprise-grade security, and management features in an ultra-compact, sleek design, providing business users with a flexible and organized workspace. Designed to withstand and meet MIL-STD-810H US military standards1, it features an expandable chassis, ensuring prolonged reliability and convenient upgrades for professionals.
Specifications
| Processor |
|---|
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor model |
i5-14500 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
5 GHz |
| Processor threads |
20 |
| Processor cores |
14 |
| Processor family |
Intel® Core™ i5 |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core base frequency |
2.6 GHz |
| Efficient-core base frequency |
1.9 GHz |
| Processor base power |
65 W |
| Maximum turbo power |
154 W |
| Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Memory |
|---|
| Internal memory |
16 GB |
| Memory layout (slots x size) |
2 x 8 GB |
| Maximum internal memory |
128 GB |
| Memory slots |
4x DIMM |
| Internal memory type |
DDR5-SDRAM |
| Storage |
|---|
| Storage media |
SSD |
| Optical drive type |
No |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total storage capacity |
512 GB |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| Number of SATA III connectors |
4 |
| HDMI version |
1.4 |
| VGA (D-Sub) ports quantity |
1 |
| USB 2.0 ports quantity |
5 |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Number of rear USB ports |
5 |
| Number of rear audio ports |
3 |
| Number of front USB ports |
5 |
| Number of front audio ports |
2 |
| Expansion slots |
|---|
| PCI Express x1 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Technical details |
|---|
| Number of 2.5" bays |
1 |
| Cable lock slot type |
Kensington |
| Product type |
PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Tower |
| Audio system |
High Definition Audio |
| Number of 3.5" bays |
1 |
| Cable lock slot |
Yes |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
Intel B760 |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold |
| Compliance certificates |
REACH |
| Design |
|---|
| Number of 2.5" bays |
1 |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Tower |
| Number of 3.5" bays |
1 |
| Cable lock slot |
Yes |
| Colour name |
Black |
| Introduction year |
2024 |
| Performance |
|---|
| Market positioning |
Business |
| Password protection |
Yes |
| Password protection type |
HDD, User |
| Product type |
PC |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
Intel B760 |
| Software |
|---|
| Operating system architecture |
64-bit |
| Bundled software |
1-month Adobe Creative Cloud Hard Bundle |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply |
330 W |
| Certificates |
|---|
| Compliance certificates |
REACH |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Gold |
| Weight & dimensions |
|---|
| Width |
3.66" (93 mm) |
| Depth |
11.7" (296 mm) |
| Height |
12.2" (309 mm) |
| Weight |
11 lbs (5 kg) |
| Packaging content |
|---|
| Bundled software |
1-month Adobe Creative Cloud Hard Bundle |
| Display included |
No |
| Display |
|---|
| Display included |
No |
| Other features |
|---|
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
