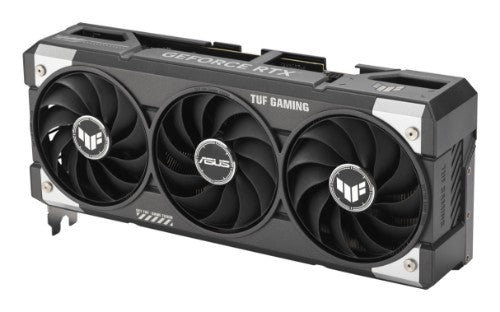

TUF Gaming GeForce RTX 5060 Ti OC Edition 8GB GDDR7 gaming graphics card (Nvidia GeForce RTX5060 Ti DLSS 4, 3.1-slot design, PCIe 5.0, 3x DisplayPort 2.1b, 1x HDMI 2.1b, TUF-RTX5060TI-O8G-GAMING)
Description
Game TUF. Built to Last.NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5060 Ti, designed to withstand the harshest conditions and deliver unparalleled performance.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor CoresMax AI performance with FP4 and DLSS 4
New Streaming MultiprocessorsOptimized for neural shaders
Fourth-Gen Ray Tracing CoresBuilt for Mega Geometry
Premium Durability
Military-Grade Components
TUF Chokes & MOSFETsCertified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF CapacitorsTUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Protective PCB CoatingA protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan BearingsDual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.
Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact DesignMaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Axial-tech UpgradesAxial-tech fans spin on dual-ball bearings and propel more air than standard fans.
New DirectionsThe two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics.

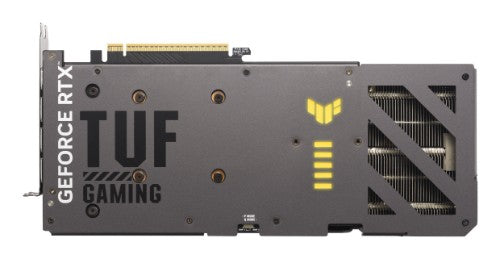

Vented ExoskeletonA high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation
Reliability
ASUS GPU GuardASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.
Auto−Extreme TechnologyAn automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
RTX. It’s On.
The Ultimate in Ray Tracing and AIRTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.
Creators
Your Creative AI-dvantageNVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Processor boost clock speed |
2662 MHz |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA cores |
4608 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5060 Ti |
| Processor frequency (OC mode) |
2692 MHz |
| Memory |
|---|
| Discrete graphics card memory |
8 GB |
| Memory bandwidth (max) |
28 GB/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR7 |
| Ports & interfaces |
|---|
| HDMI version |
2.1b |
| Mini HDMI ports quantity |
0 |
| Mini DisplayPorts quantity |
0 |
| HDMI ports quantity |
1 |
| DisplayPort version |
2.1b |
| DisplayPorts quantity |
3 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Interface type |
PCI Express 5.0 |
| Thunderbolt 3 ports quantity |
0 |
| Video |
|---|
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| HDCP |
Yes |
| Dual Link DVI |
No |
| CUDA cores |
4608 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| HDCP version |
2.3 |
| Overclocked (OC) edition |
Yes |
| NPU performance up to |
785 TOPs |
| Design |
|---|
| Number of fans |
3 fan(s) |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| Number of slots |
3.1 |
| Cooling technology |
ASUS Axial-tech |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
550 W |
| Weight & dimensions |
|---|
| Number of slots |
3.1 |
| Weight |
2.54 lbs (1.15 kg) |
| Height |
5.26" (133.5 mm) |
| Depth |
2.44" (62 mm) |
| Length |
11.9" (302 mm) |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| TV tuner integrated |
No |
| System requirements |
|---|
| Minimum system power supply |
550 W |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
16.6" (421 mm) |
| Package height |
3.46" (88 mm) |
| Package depth |
8.94" (227 mm) |
| Package weight |
4.21 lbs (1.91 kg) |
