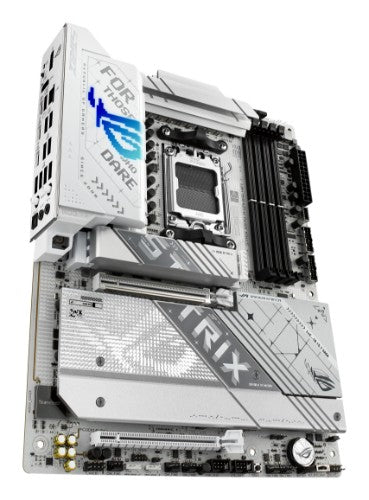

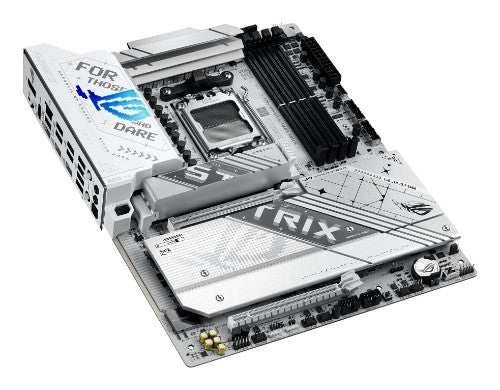

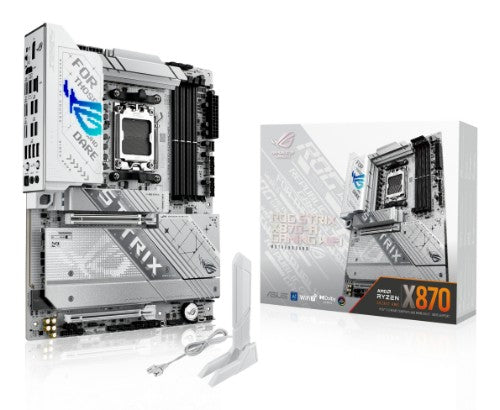

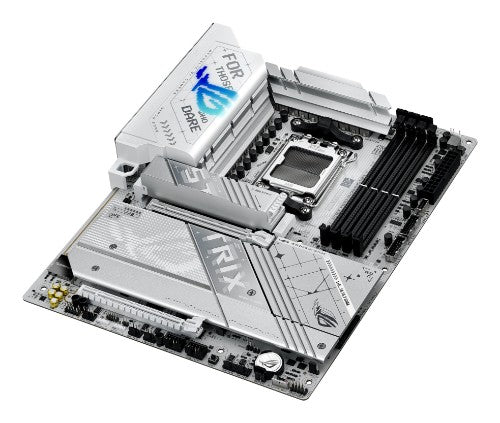

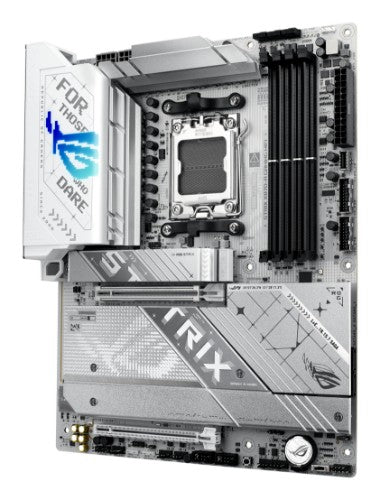

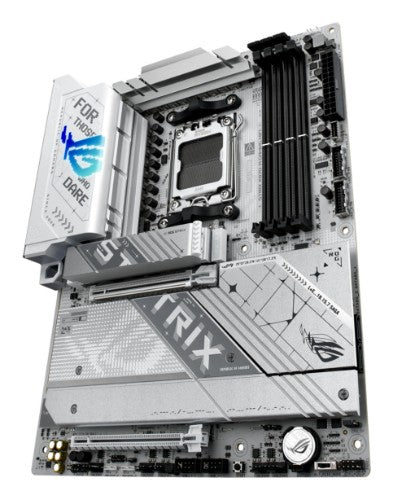

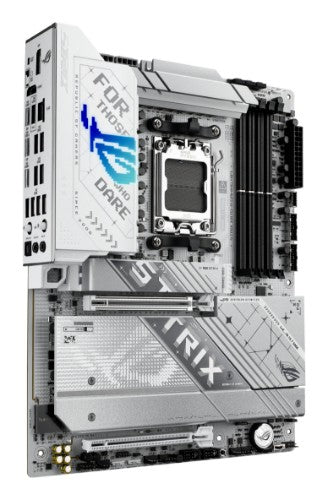

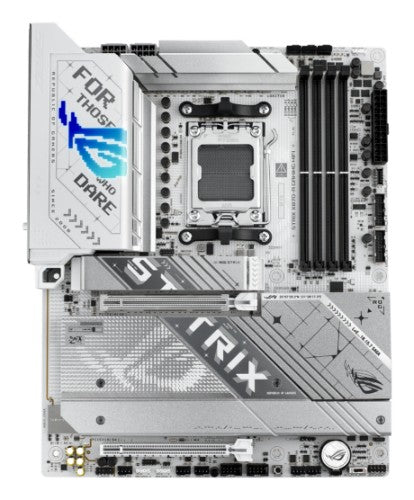

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870
Description
ASUS AI INTELLIGENCE
ai OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai cOOLING IIBalance the thermals and acoustics of any build with a single click.
AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Performance
OVERCLOCKINGDynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Specifications
| Internal I/O |
|---|
| Number of M.2 (M) slots |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| mSATA ports quantity |
0 |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
0 |
| Number of chassis fan connectors |
5 |
| Front panel audio connector |
Yes |
| CPU fan connector |
Yes |
| Chassis intrusion connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| USB 3.2 Gen 2x2 connectors |
1 |
| Technical details |
|---|
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870 |
| Supported processor sockets |
Socket AM5 |
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Audio |
|---|
| Audio output channels |
7.1 channels |
| Performance |
|---|
| Number of HDDs supported |
2 |
| Supported storage drive types |
HDD & SSD |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870 |
| RAID levels |
0, 1, 10, 5 |
| Windows operating systems supported |
Windows 11 |
| Supported processor sockets |
Socket AM5 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Processor |
|---|
| Processor manufacturer |
AMD |
| Supported processor sockets |
Socket AM5 |
| Processor socket |
Socket AM5 |
| Memory |
|---|
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Maximum internal memory |
192 GB |
| Unbuffered memory |
Yes |
| ECC сompatibility |
ECC & Non-ECC |
| Storage controllers |
|---|
| Number of HDDs supported |
2 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 10, 5 |
| Number of storage drives supported |
6 |
| RAID support |
Yes |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 2.0 ports quantity |
0 |
| WiFi-AP antenna jack |
1 |
| VGA (D-Sub) ports quantity |
0 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
1 |
| USB4 Gen 2x2 ports quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Features |
|---|
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870 |
| Windows operating systems supported |
Windows 11 |
| Supported processor sockets |
Socket AM5 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Audio chip |
Realtek ALC4080 |
| Product colour |
Aluminum |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 4.x) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS button |
Yes |
| Packaging data |
|---|
| Package width |
13.9" (353 mm) |
| Package depth |
10.7" (273 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
5.11 lbs (2.32 kg) |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Weight & dimensions |
|---|
| Height |
1.97" (50 mm) |
| Package width |
13.9" (353 mm) |
| Package depth |
10.7" (273 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
5.11 lbs (2.32 kg) |
| Weight |
4.06 lbs (1.84 kg) |
| Width |
12" (305 mm) |
| Depth |
9.61" (244 mm) |
| Packaging content |
|---|
| Cables included |
SATA |
| Other features |
|---|
| Height |
1.97" (50 mm) |
| Package width |
13.9" (353 mm) |
| Package depth |
10.7" (273 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
5.11 lbs (2.32 kg) |
| mSATA ports quantity |
0 |
| Weight |
4.06 lbs (1.84 kg) |
