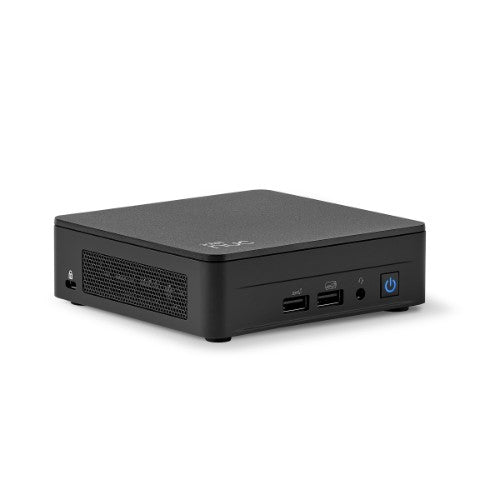

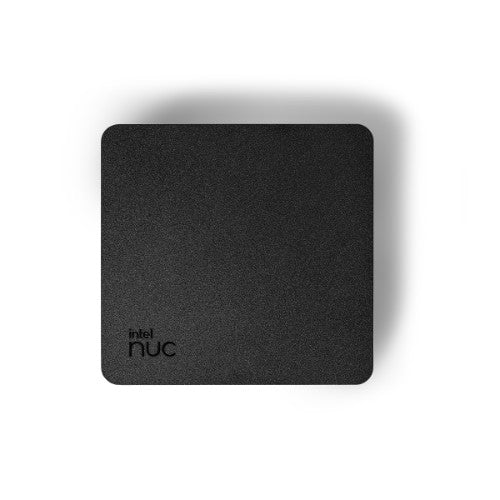

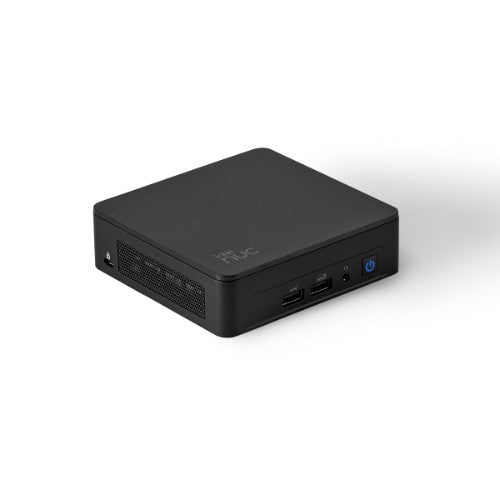

ASUS NUC 13 Pro RNUC13ANKH70000UI Black i7-13620H

NUC 13 Pro, Intel Core i7-13620H, up to 64GB dual-channel DDR4 SODIMMs

Key Features

• 13th Generation Intel® Core™ i7/i5/i3 with integrated Intel® Iris® Xe Graphics or Intel® UHD Graphics, and Intel vPro® Technology for selected SKUs
• For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
• Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
• Dual HDMI 2.1and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
• Qualified for 24x7 operation

Description

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Specifications

Processor
Built-in processor	Yes
Processor model	i7-13620H
Processor boost frequency	4.9 GHz
Processor threads	16
Processor cores	10
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor cache	24 MB
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Processor cache type	Smart Cache
Processor generation	13th gen Intel® Core™ i7
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Maximum storage capacity	8 TB
SSD form factor	M.2
NVMe	Yes
Storage drives installed	No
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC269
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211

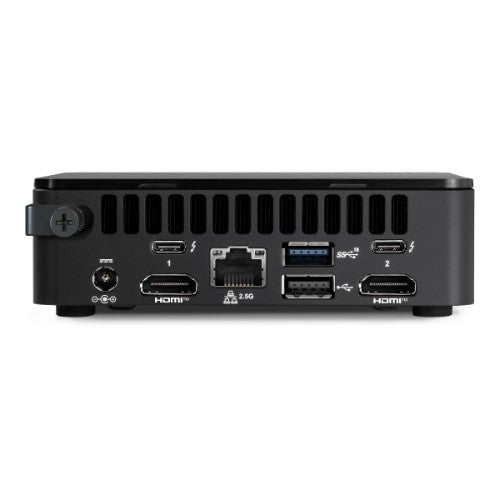

Ports & interfaces
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Design
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Cooling type	Active
Product colour	Black
Performance
Audio chip	Realtek ALC269
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Processor cores	10
Cooling type	Active
Management features
On/off switch	Yes
Power
AC adapter output voltage	20 V
AC adapter output current	6 A
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	4.61" (117 mm)
Depth	4.41" (112 mm)
Height	1.46" (37 mm)
Weight	17.7 oz (502 g)
