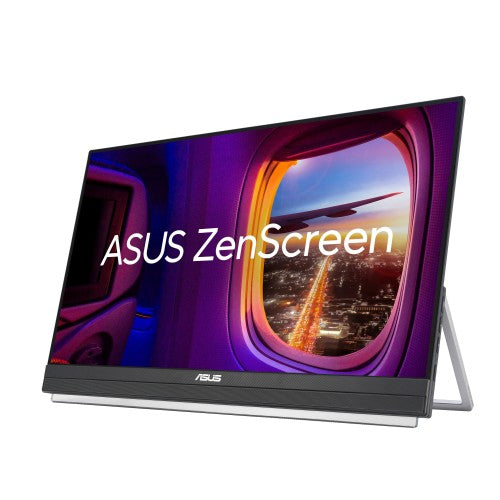

ZenScreen MB229CF portable 22 inch USB monitor (Full HD, IPS, 100Hz, 2.1 channel audio, speakers, carrying handle, partition hook)
Key Features
- 22-inch FHD IPS display with sleek, ultraslim profile and 2.2 kg overall weight enable effortless portability
- Multiple stand options and accessories, including an integrated carrying handle/kickstand, height-adjustable C-clamp with Z-axis adjustment, and partition hook kit for flexible placement
- Rich connectivity options include a full-function USB-C with 60-watt power delivery, HDMI, and earphone jack
- Powerful 2.1-channel audio with subwoofer for exceptionally well-balanced audio
- Environmentally friendly design with ENERGY STAR-certified energy efficiency, and packaged in FSC certified paper
Description
Redefine Your WorkspaceASUS ZenScreen MB229CF is designed to give multitasking a boost, with its large, frameless 21.5-inch FHD panel smooth 100Hz refresh rate. Its sleek 4.9mm profile and light 2.2 kg weight ensure effortless portability around the home, office, or co-working spaces. Plus, multiple stand options offer complete versatility, so you can configure MB229CF to meet any need. Its versatility lets you turn any space into a productive nook.
Make the most out of any workstationZenScreen MB229CF has an integrated carrying handle that doubles as a kickstand to prop the monitor at various angles for comfortable viewing. MB229CF also includes an ergonomic C-clamp arm and a bundled partition hook kit. The arm offers Z-axis adjustment for comfortable viewing positions, while the hook kit enables versatile placement for those looking to maximize desktop space―so it’s perfect for any confined area.
Design with ergo in mind

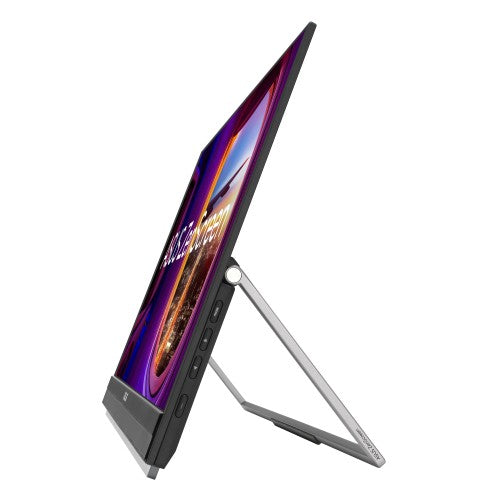

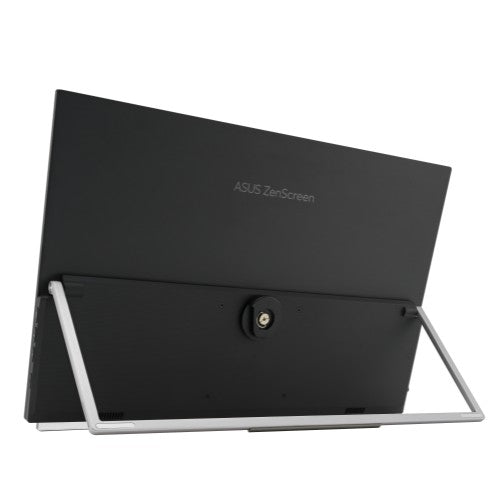

Fold-out kickstandThe carrying handle does double duty as a handy kickstand to securely prop ZenScreen MB229CF up at 12–60° on any flat surface, ensuring comfortable viewing angles. It’s perfect for multitasking or for demonstrations to small groups.
Partition-mountedThe unique partition hook kit helps you free up precious desktop space by enabling you to hang ZenScreen MB229CF from cubicle partitions or dividers. Offering 150 mm of height adjustment, the hanger kit lets you raise or lower the screen to eye level for perfect viewing.

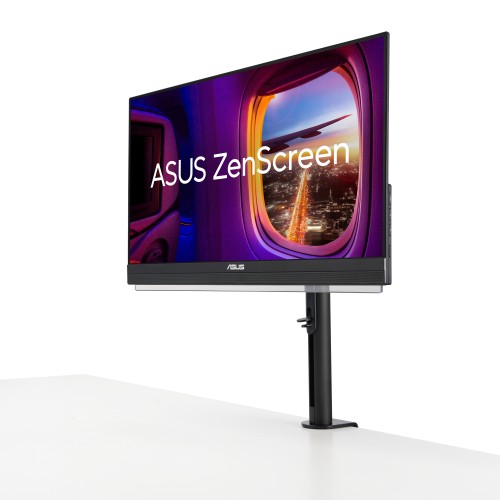

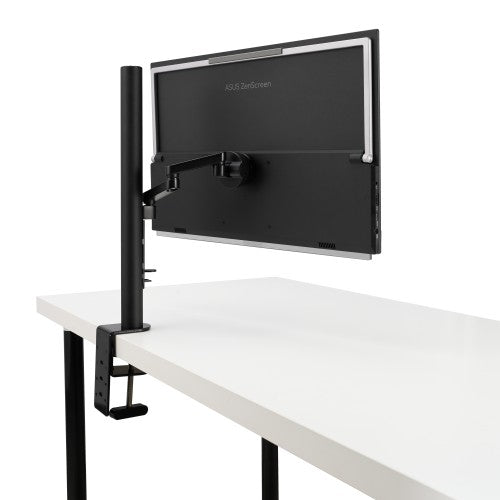

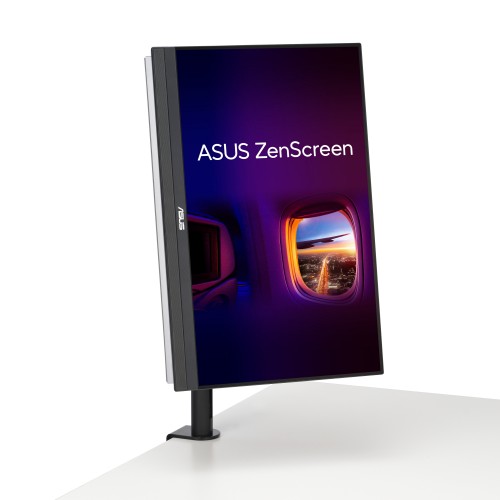

C-clamp armThe C-clamp arm allows you to tilt and pan ZenScreen MB229CF for ideal viewing at eye level. It offers -5˚-20˚ tilt, -90-90˚swivel, -90-90˚ pivot, and extension/retraction adjustments of up to 144mm. A quick-release mechanism allows you to easily mount or detach the monitor from the stand.
Full connectivityA variety of I/O ports ensure compatibility with a wide range of devices. Integrated USB-C connectivity provides audiovisual signal transmission along with 60-watt power delivery, and HDMI® and an earphone jack offer convenience.
*DP Alt mode support required for attached device.
Big on convenienceZenScreen MB229CF is larger than most portable monitors, and its frameless FHD IPS panel delivers up to 22-inch stunning diagonal visuals and wide, 178° viewing angles.
The anti-glare panel reduces reflections and glare, enabling you to comfortably work near a window or share content with a group.
And with its 2.2 kg design and carrying handle, MB229CF makes hotdesking easy―so any space can be transformed into a productive work area.
Immersive audiovisuals for work and playWith 2.1 channel audio speakers deliver incredible sound, so you can enjoy immersive audio when watching videos, listening to music, or when gaming.
ASUS Eye Care technologyASUS Ultra-Low Blue Light technology protects you from potentially harmful blue light emissions. Included special features are especially beneficial to those who spend extended hours in front of a display.
The TÜV Rheinland-certified ASUS Blue Light Filter can be easily engaged via the onscreen display menu, with an intuitive slider allowing you to set your preferred filter level. All ASUS displays undergo stringent performance tests, and ZenScreen monitors have been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services.
TÜV Rheinland-certified ASUS Flicker Free technology eliminates flicker, ensuring comfortable viewing experiences. This technology helps minimize eyestrain and other ailments typically associated with extended hours of viewing.
Environmental CertificationASUS ZenScreen portable monitor is stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to-date criteria, independent verification, and a structured system for continuous improvement.
Eco-friendly PackagingASUS ZenScreen portable monitor is FSC Mix-certified, thanks to its sustainable packaging. An exclusive insert-molding process gives the monitor its light weight and thin profile while, cutting down on materials used. The Eco-Friendly Packaging-Paper-based materials is not only light weight and overall volume is as low as possible, for more efficient shipping.
Energy-Efficient FeaturesASUS ZenScreen portable monitor meets the requirements of the ENERGY STAR® Computers Specification Version 8.0.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
250 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
100 Hz |
| HD type |
Full HD |
| Display technology |
LED |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00976 x 0.00976" (0.248 x 0.248 mm) |
| Viewable size, horizontal |
18.7" (47.6 cm) |
| Viewable size, vertical |
10.6" (26.8 cm) |
| Digital horizontal frequency |
30 - 111 kHz |
| Digital vertical frequency |
48 - 100 Hz |
| Display resolution |
1920 x 1080 pixels |
| Response time |
5 ms |
| Display diagonal |
21.5" |
| Touchscreen |
No |
| Panel type |
IPS |
| LED backlight |
Yes |
| Anti-glare screen |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| AMD FreeSync |
No |
| Game mode |
Yes |
| NVIDIA G-SYNC |
No |
| VESA Adaptive Sync support |
Yes |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Brand specific technologies |
SPLENDID |
| Shadow control |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Design |
|---|
| Market positioning |
Home |
| Certification |
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
FSC MIX |
| Product colour |
Black |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
No |
| USB Type-C downstream ports quantity |
1 |
| Headphone out |
Yes |
| DC-in jack |
Yes |
| HDMI ports quantity |
1 |
| HDCP |
Yes |
| Headphone outputs |
1 |
| HDMI |
Yes |
| HDMI version |
1.4 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
60 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| HDCP version |
1.4 |
| Technical details |
|---|
| Height (without stand) |
12.5" (318 mm) |
| Depth (without stand) |
0.866" (22 mm) |
| Width (without stand) |
19.2" (487 mm) |
| Cable lock slot |
No |
| HDMI |
Yes |
| Product colour |
Black |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC) Mix |
| Game mode |
Yes |
| Weight (with stand) |
8.82 lbs (4 kg) |
| Touchscreen |
No |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| VESA mounting |
Yes |
| Cable lock slot |
No |
| Panel mounting interface |
100 x 100 mm |
| Swivelling |
Yes |
| Swivel angle range |
-90 - 90° |
| Tilt angle range |
-5 - 20° |
| Pivot |
Yes |
| Pivot angle |
-90 - 90° |
| Height adjustment |
Yes |
| Tilt adjustment |
Yes |
| Adjustable height (max) |
7.09" (18 cm) |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
13 W |
| Power consumption (PowerSave) |
0.5 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
D |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
13 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
1846161 |
| Weight & dimensions |
|---|
| Height (without stand) |
12.5" (318 mm) |
| Depth (without stand) |
0.866" (22 mm) |
| Width (without stand) |
19.2" (487 mm) |
| Width (with stand) |
19.2" (487 mm) |
| Depth (with stand) |
11.9" (301 mm) |
| Height (with stand) |
28.4" (722 mm) |
| Weight (with stand) |
8.82 lbs (4 kg) |
| Weight (without stand) |
4.85 lbs (2.2 kg) |
| Package width |
21.5" (547 mm) |
| Package depth |
5.08" (129 mm) |
| Package height |
15.7" (398 mm) |
| Package weight |
13.2 lbs (6 kg) |
| Packaging data |
|---|
| Package width |
21.5" (547 mm) |
| Package depth |
5.08" (129 mm) |
| Package height |
15.7" (398 mm) |
| Package weight |
13.2 lbs (6 kg) |
| Package type |
Box |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1846161 |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC) Mix |
| Other features |
|---|
| Certification |
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
FSC MIX |
| Brand specific technologies |
SPLENDID |
| Shadow control |
Yes |
| Game mode |
Yes |
| Height (without stand) |
12.5" (318 mm) |
| Depth (without stand) |
0.866" (22 mm) |
| Width (without stand) |
19.2" (487 mm) |
| HDMI |
Yes |
| USB Power Delivery up to |
60 W |
| Energy efficiency scale |
A to G |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Touchscreen |
No |
| USB Power Delivery (USB PD) |
Yes |
| Package type |
Box |
| Certificates |
|---|
| Certification |
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
FSC MIX |
