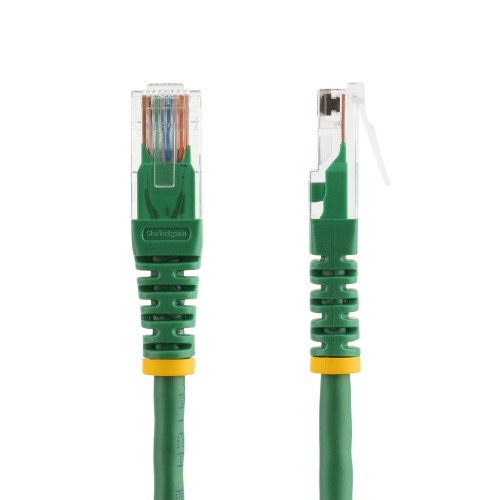

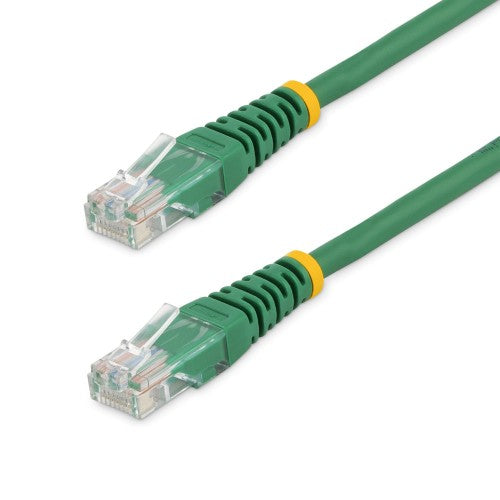

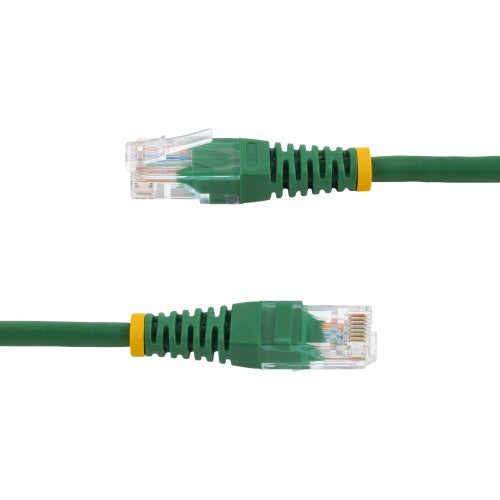

StarTech.com Cat5e Ethernet Cable - 1 ft - Green - Patch Cable - Molded Cat5e Cable - Short Network Cable - Ethernet Cord - Cat 5e Cable - 1ft (M45PATCH1GN)
Key Features
- Molded RJ45 connectors
- Carefully constructed and tested, to keep Near End Crosstalk (NEXT) well within acceptable limits
- Colored hoods for departmental color coding
- Constructed with top quality components
- High quality 24 AWG copper wire
Description
Make Fast Ethernet network connections using this high quality Cat5e Cable, with Power-over-Ethernet capability
The M45PAT1GN Cat5e Patch Cable (1 ft) meets or exceeds all Cat 5e specifications to ensure reliable Ethernet network connections, and features a durable green PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat5e patch cable features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles - reducing the risk of cable damage, which could decrease network performance.
Constructed of only top quality materials, this Cat5e Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.
100% Copper - a better value
StarTech.com Cat5e cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a "cheaper" cable, based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.
24 AWG Wire
This Cat 5e cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.
50-micron Gold Connectors
This molded patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Product colour |
Green |
| Cable rating |
CMG (CM) |
| Conductor material |
Copper |
| Molded cable boot |
Yes |
| Frequency |
350 MHz |
| AWG wire size |
24 |
| Plug and Play |
Yes |
| Cable standard |
Cat5e |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100Base-T(X) |
| Data transfer rate |
100 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
11.8" (0.3 m) |
| Ethernet interface type |
Fast Ethernet |
| Power over Ethernet (PoE) |
Yes |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certificates |
|---|
| Compliance certificates |
RoHS, CE |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
7.87" (200 mm) |
| Package depth |
8.66" (220 mm) |
| Package height |
0.748" (19 mm) |
| Package weight |
0.811 oz (23 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Green |
| Plug and Play |
Yes |
| Cable standard |
Cat5e |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100Base-T(X) |
| Data transfer rate |
100 Mbit/s |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
11.8" (0.3 m) |
| Cable rating |
CMG (CM) |
| Compliance certificates |
RoHS, CE |
| Logistics data |
|---|
| Products per master (outer) case |
300 pc(s) |
| Master (outer) case width |
15.8" (402 mm) |
| Master (outer) case length |
16.1" (410 mm) |
| Master (outer) case height |
6.77" (172 mm) |
