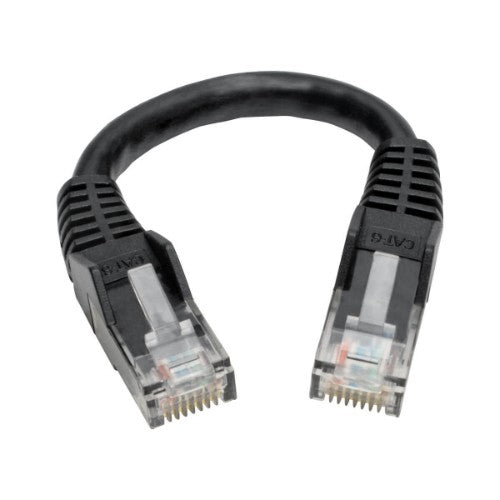

Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Black, 6-in. (15.24 cm)
Key Features
- Premium cabling for Cat6 home/office network applications
- Rated for 550 MHz/1 Gbps communications
- Snagless connectors prevent damaged tabs during installation
- 24 AWG 4-pair stranded UTP with PVC jacket
- Integral strain relief protects connectors from stress and cracking
Description
The Ideal Solution for Your Cat6 Gigabit Ethernet Networking NeedsRecommended for connecting computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers
Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications
Provides high-speed connections up to 550 MHz/1 Gbps
Flawless signal delivery with minimal near-end crosstalk levels
Reduces impedance and structural return loss compared to standard 100 MHz wire

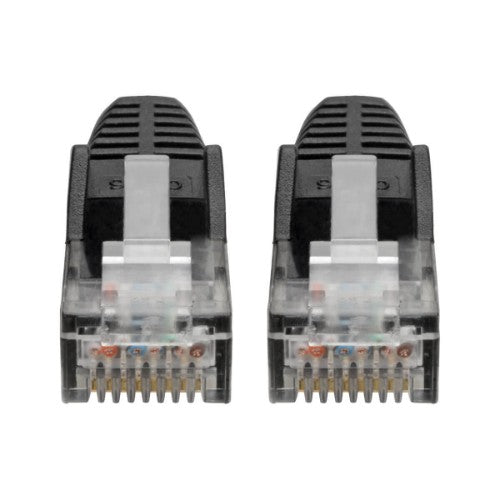

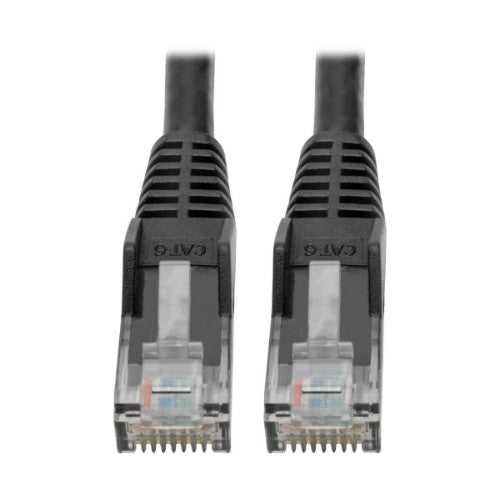

Snagless RJ45 Male ConnectorsMolded snagless boots prevent locking tabs from damage during installation
Premium Construction Ensures Error-Free Signal TransferManufactured from 24 AWG 4-pair stranded UTP
Gold-plated copper contacts for maximum conductivity and minimum data loss
Integral strain relief protects cable and connectors from stress and cracking
Rugged PVC jacket stands up to long-term use
Meets Top Cabling StandardsMeets Cat6 TIA/EIA standards
Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11)
Specifications
| Features |
|---|
| Product colour |
Black |
| Country of origin |
China |
| Twisted pair coupling type |
4x2 |
| AWG wire size |
24 |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Nylon/Polyvinyl Chloride (PVC) |
| Conductor type |
Solid |
| Cable length |
5.91" (0.15 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
8544.42.2000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
0.705 oz (20 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Black |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Nylon/Polyvinyl Chloride (PVC) |
| Conductor type |
Solid |
| Cable length |
5.91" (0.15 m) |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332206456 |
| Logistics data |
|---|
| Master (outer) case gross weight |
7.41 oz (210 g) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
10" (254 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
12" (304.8 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332206456 |
| Harmonized System (HS) code |
8544.42.2000 |
