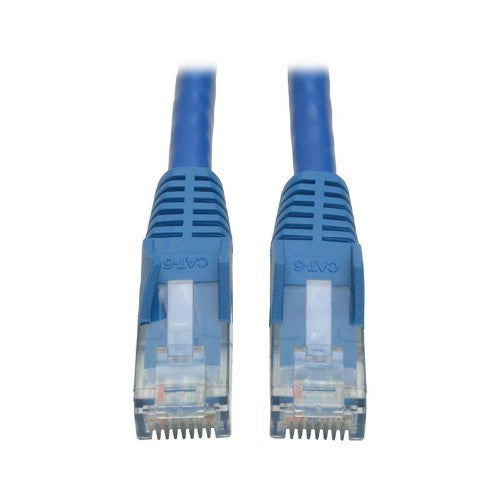

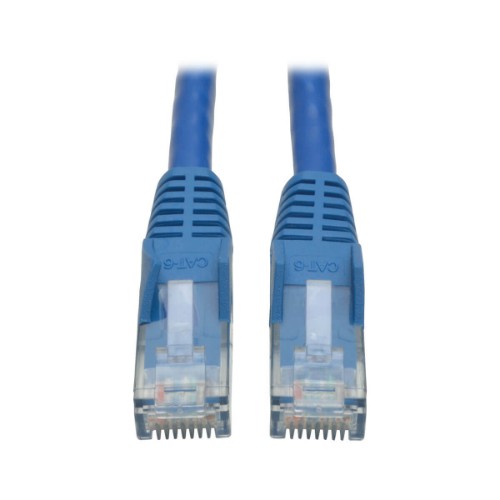

Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Blue, 10 ft. (3.05 m)
Key Features
- Meets Category 6 cabling standards
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)
- Drastically reduce impedance and structural return loss compared to standard 100Mhz wire
- Snagless boots protect the locking tabs on the RJ45 connectors from being damaged during installation
- Feature molded connectors with integral strain relief. Rated for 550 MHz/1 Gbps communication
Description
Meets category 6 cabling standards
Premium cabling for category 6, category 5e and category 5 applications
Length: 10-ft. Color: blue Connectors: RJ45 male
Drastically reduce impedance and structural return loss compared to standard 100MHz wire
High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum
Feature molded connectors with integral strain relief
Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
PVC 4-pair stranded UTP
Deliver stable performance up to 550MHz/1 Gbps communication
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
Available in other colors and lengths
Specifications
| Features |
|---|
| Product colour |
Blue |
| Snagless cable boot |
Yes |
| Country of origin |
China |
| Frequency |
550 MHz |
| AWG wire size |
24 |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
120.1" (3.05 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
4.94 oz (140 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Blue |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
120.1" (3.05 m) |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332099898 |
| Logistics data |
|---|
| Master (outer) case gross weight |
3 lbs (1.36 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
0" (0 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
16" (406.4 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332099898 |
| Harmonized System (HS) code |
84733080 |
