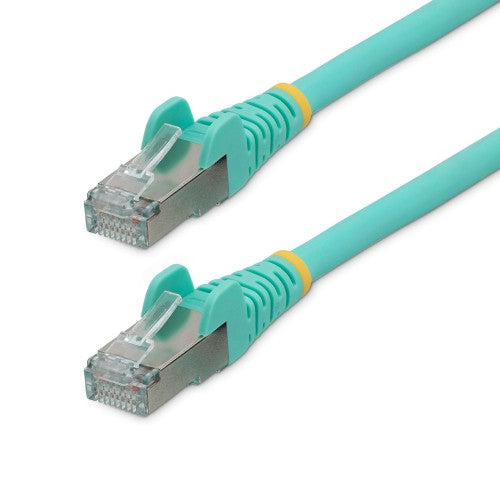

StarTech 10ft CAT6a Ethernet Cable - Low Smoke Zero Halogen (LSZH) - 10 Gigabit 500MHz 100W PoE RJ45 S/FTP Aqua Network Patch Cord Snagless w/Strain Relief (NLAQ-10F-CAT6A-PATCH)
Key Features
- CAT6A ETHERNET CABLE: High-performance Ethernet Cable for error-free 1/2.5/5/10Gbps multi-gigabit connections; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Individually Tested; ETL Verified to meet ANSI/TIA-568.2-D standards
- SHIELDED CAT6A CABLE: Improved signal integrity and protection against noise & electromagnetic (EMI/RFI) interference; Individual twisted pairs wrapped in foil; Outer covering w/ braided shield; Shielded RJ45 connectors with gold-plated pins
- 100W POWER OVER ETHERNET: 100% stranded copper wire delivers error-free data and stable PoE power, unlike lower quality copper-clad aluminum versions of other brands; Supports PoE devices up to 100W PoE++; Complies with IEEE 802.3bt (Type 4 and lower)
- DURABLE LSZH JACKET: PVC Free, Low Smoke Zero Halogen (LSZH) cable jacket produces less dense and corrosive smoke than PVC; Braided construction resists damage from bending
- SPECS: Category 6A Network Patch Cord; 10ft; Aqua; 10Gbps; 500 MHz; 4 Pair S/FTP; Snagless RJ45 with Strain Reliefs; EVA, Al(OH)3; LSZH; 27 AWG; 100% Copper; ETL Verified; ANSI/TIA-568.2-D; Supports Cat6 and earlier standards; Backed for Life
Description
LSZH | 10GbE | 100W PoE++ | Snagless RJ-45
Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.
Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable
LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.
100W Power over Ethernet (PoE++)
This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.

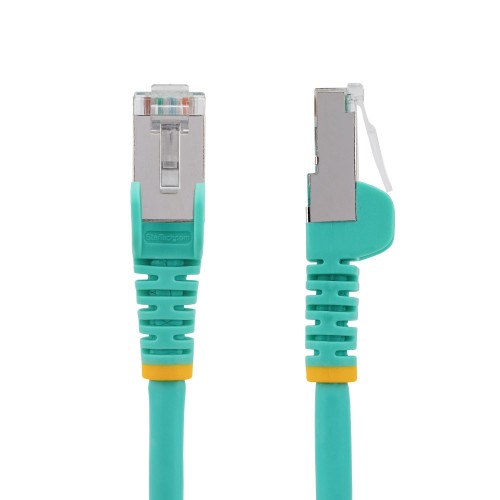

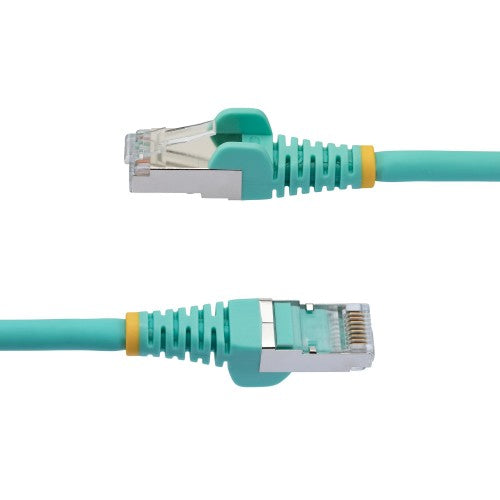

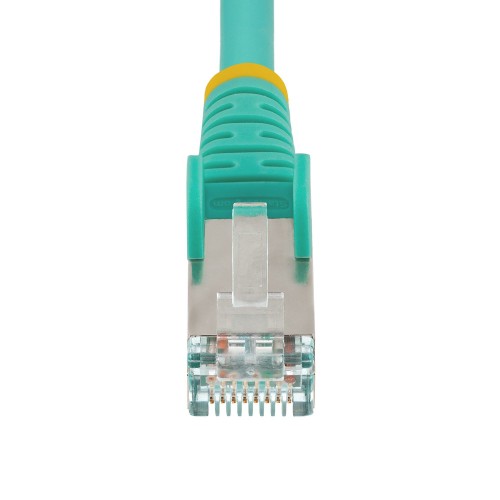

RJ45 Connectors with Snagless Clips
The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.
The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points. ETL Verified
Our Cat6 Ethernet Cables are ETL Verified to meet ANSI/TIA-568.2-D standards, ensuring peak performance for high-speed 10G applications. Independent testing confirms compliance with strict insertion loss, return loss, and crosstalk limits, maintaining stable signal transmission over longer runs. The STP shielding is verified for EMI resistance, for guaranteed reliability in demanding environments.
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Features |
|---|
| Product colour |
Aqua color |
| Snagless cable boot |
Yes |
| Conductor material |
Copper |
| Molded cable boot |
Yes |
| Frequency |
500 MHz |
| AWG wire size |
27 |
| Plug and Play |
Yes |
| Cable standard |
Cat6a |
| Cable shielding |
S/FTP (S-STP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10GBase-T |
| Data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3bt |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Conductor type |
Stranded |
| Cable length |
118.1" (3 m) |
| Ethernet interface type |
2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet, 5 Gigabit Ethernet |
| Power over Ethernet (PoE) |
Yes |
| Cable shape |
Round |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget |
100 W |
| Certification |
ETL |
| Certificates |
|---|
| Certification |
ETL |
| Compliance certificates |
RoHS, CE |
| Weight & dimensions |
|---|
| Weight |
3.87 oz (109.6 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
8.66" (220 mm) |
| Package depth |
7.48" (190 mm) |
| Package height |
0.787" (20 mm) |
| Package weight |
4.17 oz (118.3 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Aqua color |
| Plug and Play |
Yes |
| Cable standard |
Cat6a |
| Cable shielding |
S/FTP (S-STP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10GBase-T |
| Data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3bt |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Conductor type |
Stranded |
| Cable length |
118.1" (3 m) |
| Compliance certificates |
RoHS, CE |
| Sustainability compliance |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
70 pc(s) |
| Master (outer) case width |
16.9" (430 mm) |
| Master (outer) case length |
15" (380 mm) |
| Master (outer) case height |
11.4" (290 mm) |
