Tripp Lite N200-UR6N-BL networking cable Blue 7.87" (0.2 m) Cat6 U/UTP (UTP)

Cat6 Gigabit Molded Ultra-Slim UTP Ethernet Cable (RJ45 M/M), Blue, 6-in. (15.24 cm)

Key Features

• Premium Cat6 cable rated for high-speed 1 Gbps home/office communications
• Over 50% slimmer than standard Cat6 cables to increase airflow in full racks
• Easy to route around corners and through crowded cable management panels
• 32 AWG copper wire and 3 µm gold-plated connectors allow superior signal transfer
• Color-coded blue for fast, easy identification in a crowded rack or workstation

Description

Cat6 Cable Ideal for Connecting Equipment in Your Gigabit Ethernet Network
This Cat6 Ethernet cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this six-inch cable ensures peak performance throughout your local area network (LAN).

Special Ultra-Slim Design for Better Airflow and Easier Installation
The N200-UR6N-BL is just 2.8 millimeters in diameter—more than 50% smaller than standard Cat6 cable. This increases airflow in crowded equipment racks, which helps keep your components cool and properly functioning. The extra-slim design also makes the cable easier to install around corners and through cable management panels.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
The PVC jacket is colored blue to allow easy, fast identification in a crowded rack or workstation and help prevent the cable from becoming inadvertently disconnected.

Premium Construction for Superior Performance

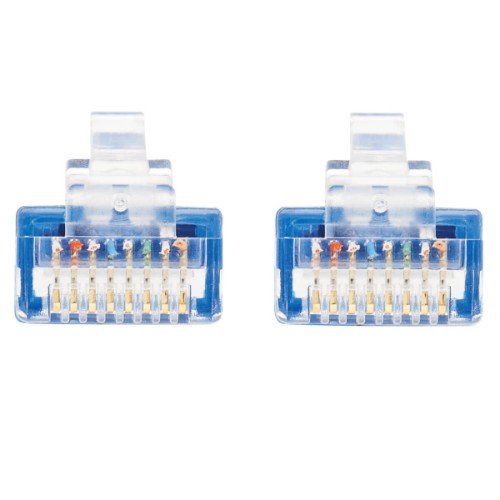

Manufactured from 32 AWG copper wire, the four-pair stranded cable is rated for speeds up to 1 Gbps. The ends feature 3-micron gold plating to help ensure the most accurate signal transfer possible. Integral strain relief gives the unshielded cable extra flexibility, reduces stress, and helps the cable move freely without cracking or breaking loose from the connector.

Specifications

Features
Product colour	Blue
Country of origin	China
Molded cable boot	Yes
Frequency	550 MHz
AWG wire size	32
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	7.87" (0.2 m)
Connector 2 gender	Male
Connector 1 gender	Male
Certification	RoHS, REACH
Harmonized System (HS) code	8544.42.2000
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Certificates
Certification	RoHS, REACH
Compliance certificates	RoHS
Weight & dimensions
Outer diameter	0.11" (2.8 mm)
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	0.353 oz (10 g)
Manual	Yes
Quantity per pack	1 pc(s)
Technical details
Product colour	Blue
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	7.87" (0.2 m)
Country of origin	China
Compliance certificates	RoHS
Other features
Master (outer) case GTIN (EAN/UPC)	10037332256918
Logistics data
Master (outer) case gross weight	5.29 oz (150 g)
Products per master (outer) case	10 pc(s)
Master (outer) case width	10" (254 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	12" (304.8 mm)
Master (outer) case GTIN (EAN/UPC)	10037332256918
Harmonized System (HS) code	8544.42.2000
