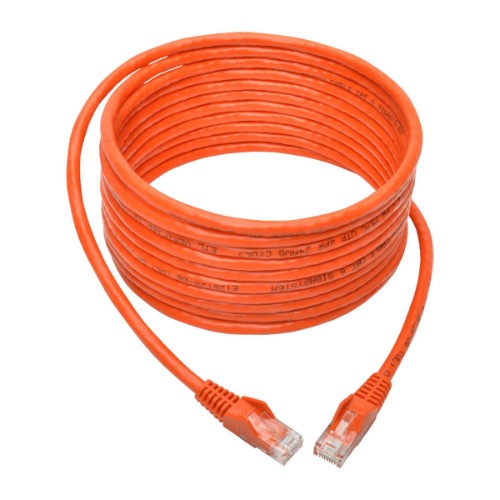

Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Orange, 15 ft. (4.57 m)
Key Features
- Rated for 550 MHz/1 Gbps communications

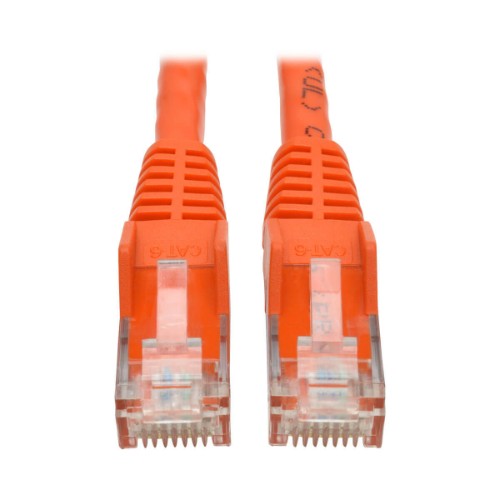

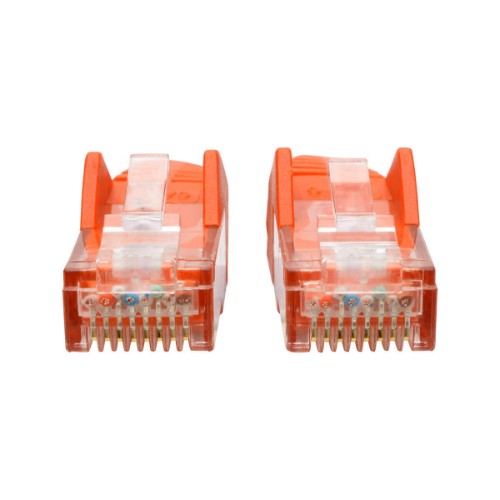

- Snagless RJ45 connectors protect against broken tabs
- Meets Cat6 TIA/EIA standards
- High-quality 24 AWG solid copper wire
- Reduces impedance and structural return loss
Description
The N201-015-OR Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this 15-ft. (4.57 m) orange cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire.

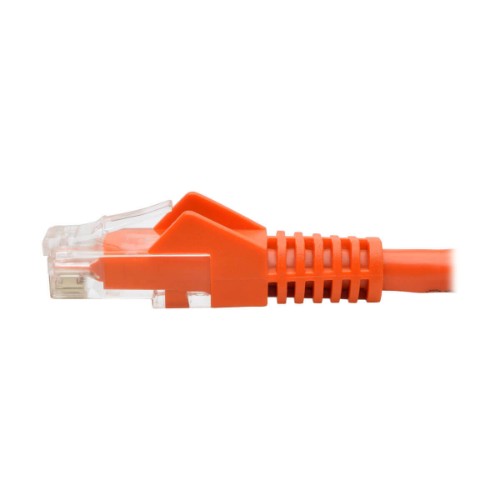

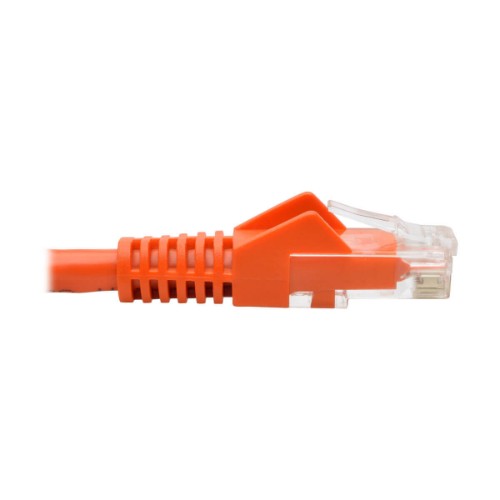

Manufactured from 24 AWG copper wire and protected by a rugged PVC jacket, the four-pair solid UTP N201-015-OR delivers speeds up to 550 MHz/1 Gbps with minimal near-end crosstalk (NeXT). The RJ45 short-body connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. The N201-015-OR meets Cat6 cabling standards.
Specifications
| Features |
|---|
| Product colour |
Orange |
| Snagless cable boot |
Yes |
| Country of origin |
China |
| Frequency |
550 MHz |
| AWG wire size |
24 |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
181.1" (4.6 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certification |
EIA/TIA Cat6 TIA/EIA- 568-B-2.1 |
| Harmonized System (HS) code |
8544.42.2000 |
| Certificates |
|---|
| Certification |
EIA/TIA Cat6 TIA/EIA- 568-B-2.1 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
6.35 oz (180 g) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
8" (203.2 mm) |
| Package depth |
10" (254 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
6.35 oz (180 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Orange |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
181.1" (4.6 m) |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332202694 |
| Logistics data |
|---|
| Master (outer) case gross weight |
4.3 lbs (1.95 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
16" (406.4 mm) |
| Master (outer) case length |
18" (457.2 mm) |
| Master (outer) case height |
1" (25.4 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332202694 |
| Harmonized System (HS) code |
8544.42.2000 |
