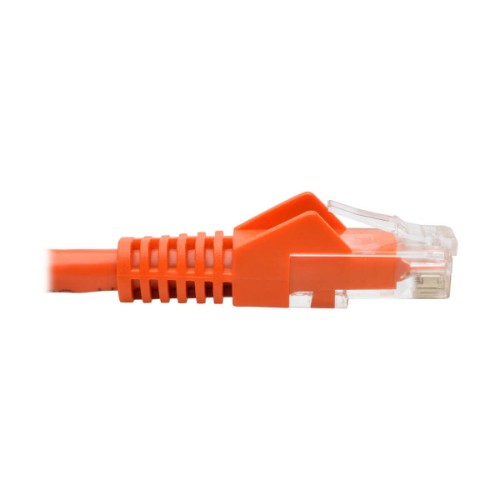

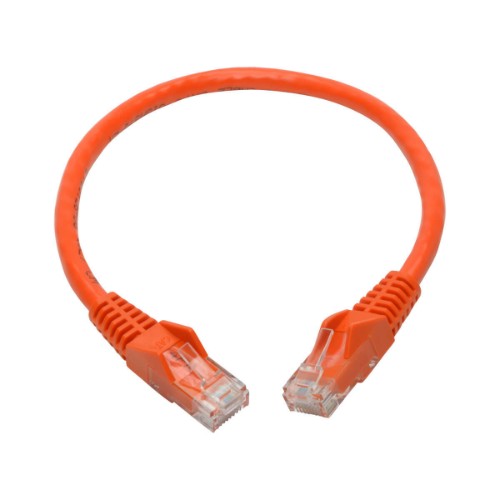

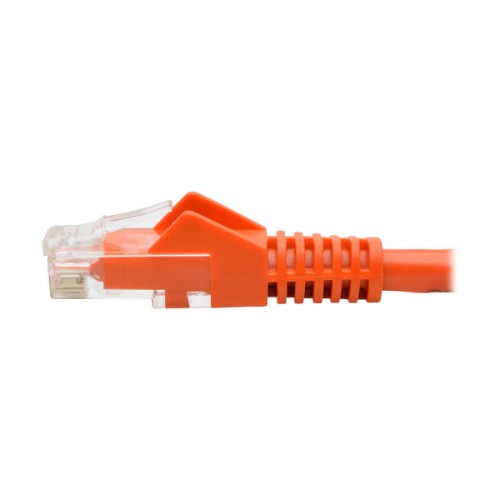

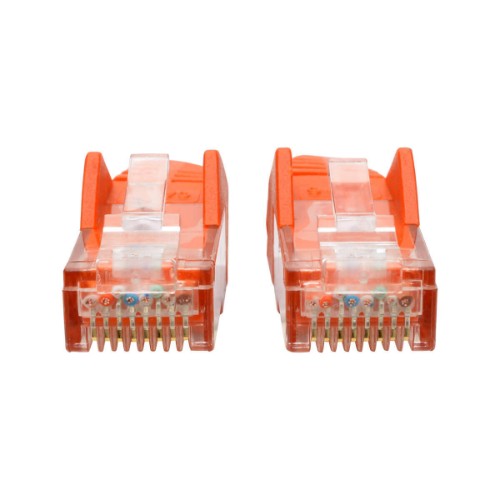

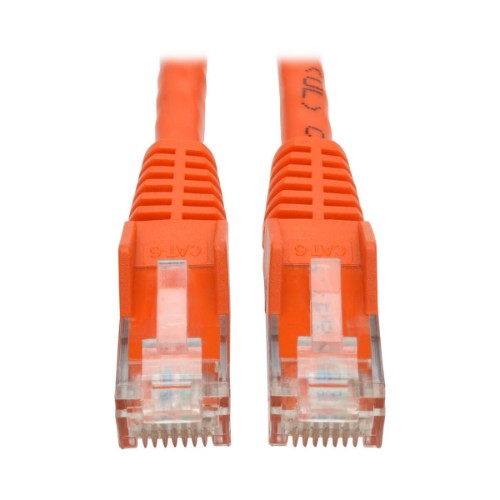

Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Orange, 1 ft. (0.31 m)
Key Features
- Rated for 550 MHz/1 Gbps communications
- Snagless RJ45 connectors protect against broken tabs
- Meets Cat6 TIA/EIA standards
- High-quality 24 AWG stranded copper wire
- Reduces impedance and structural return loss
Description
Perfect Solution for Your Cat6 Gigabit Ethernet Networking NeedsIdeal for connecting computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers
Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications
Ensures peak performance throughout your LAN
Rated for 550 MHz/1 Gbps communications
Reduces impedance and structural return loss compared to standard 100 MHz wire
Snagless RJ45 Male ConnectorsMolded snagless boots prevent locking tabs from damage during installation
Premium Construction for Superior PerformanceHigh-quality 24 AWG 4-pair stranded copper wire
Minimal near-end crosstalk ensures a strong signal
Integral strain relief protects cable and connectors from stress and cracking
Rugged PVC jacket stands up to long-term use
Meets Top Cabling StandardsMeets Cat6 TIA/EIA standards
Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11)
Specifications
| Features |
|---|
| Product colour |
Orange |
| Snagless cable boot |
Yes |
| Country of origin |
China |
| Frequency |
550 MHz |
| AWG wire size |
24 |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable length |
11.8" (0.3 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
8544.42.2000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
1.06 oz (30 g) |
| Technical details |
|---|
| Product colour |
Orange |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable length |
11.8" (0.3 m) |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332176360 |
| Logistics data |
|---|
| Master (outer) case gross weight |
11.3 oz (320 g) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
10" (254 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
12" (304.8 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332176360 |
| Harmonized System (HS) code |
8544.42.2000 |
