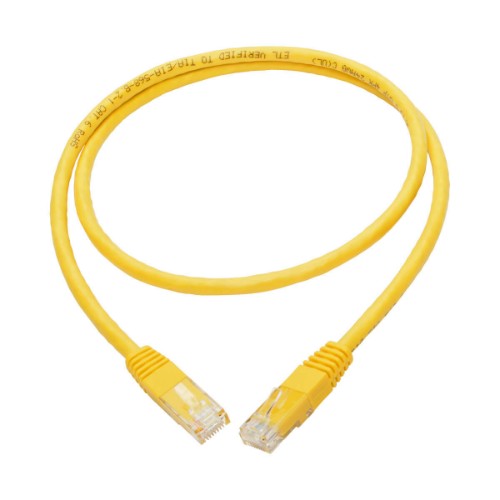

Cat6 Gigabit Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Yellow, 3 ft. (0.91 m)
Key Features
- Premium cabling for Cat5/5e/6 home/office network applications
- Rated for 550 MHz/1 Gbps communication
- 24 AWG 4-pair stranded UTP with PVC jacket
- Gold-plated copper contacts minimize data loss
- Integral strain relief protects connectors from stress and cracking
Description
The Ideal Solution for All High-Speed Cat5/5e/6 NetworkingConnects high-speed network components, such as computers, printers, video game systems, Blu-ray players, copy machines, routers and modems
Designed for 1000Base-T, 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications
Recommended for home or office applications
Provides high-speed connections up to 550 MHz/1 Gbps
Flawless signal delivery with minimal near-end crosstalk levels
Premium Construction Ensures Error-Free Signal TransferManufactured from 24 AWG 4-pair stranded UTP with staggered-pin plug design

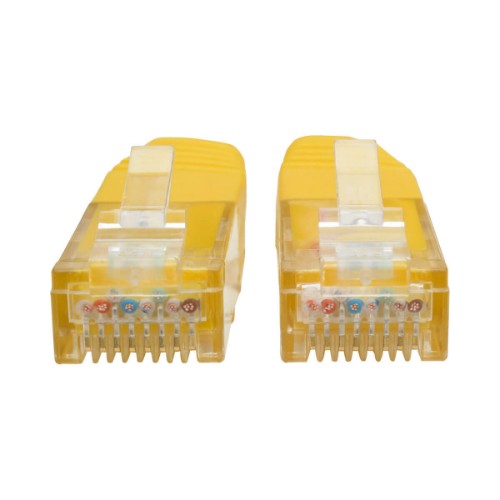

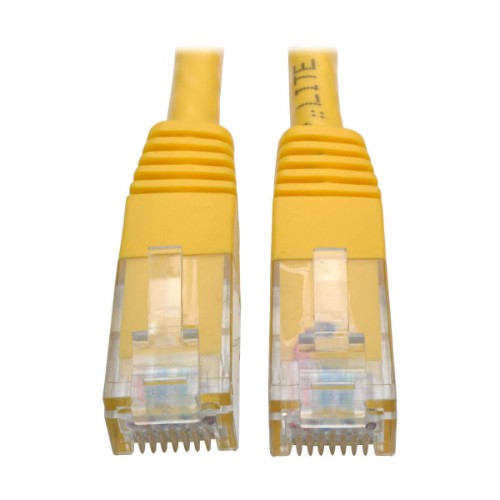

Molded RJ45 connectors and gold-plated copper contacts for maximum conductivity and minimum data loss
Integral strain relief protects cable and connectors from stress and cracking
Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
Specifications
| Features |
|---|
| Product colour |
Yellow |
| Country of origin |
China |
| Frequency |
550 MHz |
| AWG wire size |
24 |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
35.4" (0.9 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
8544.42.2000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
9" (228.6 mm) |
| Package weight |
1.76 oz (50 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Yellow |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
35.4" (0.9 m) |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332201840 |
| Logistics data |
|---|
| Master (outer) case gross weight |
16.9 oz (480 g) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
16" (406.4 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
18" (457.2 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332201840 |
| Harmonized System (HS) code |
8544.42.2000 |
