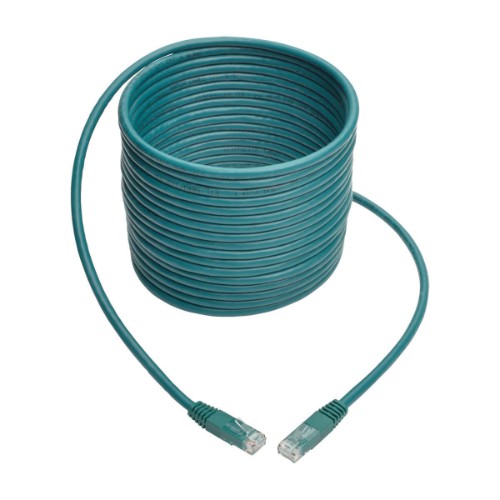

Cat6 Gigabit Molded (UTP) Ethernet Cable (RJ45 M/M), PoE, Green, 25 ft. (7.62 m)
Key Features
- Premium cabling for Cat5/5e/6 home/office network applications
- Rated for 550 MHz/1 Gbps communication
- 24 AWG 4-pair solid UTP with PVC jacket

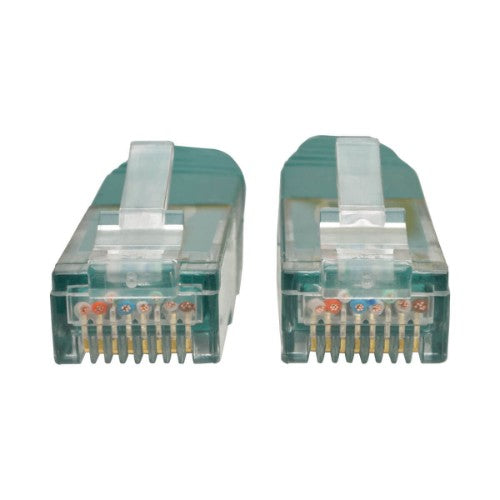

- Gold-plated copper contacts minimize data loss

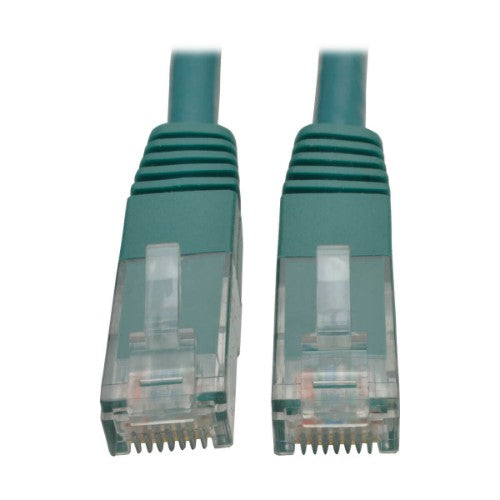

- Integral strain relief protects connectors from stress and cracking
Description
The N200-025-GN Cat6 Gigabit Molded Patch Cable (M/M) ensures ultra-fast performance throughout your Cat5/5e/6 network application. It connects high-speed network components like computers, printers, video game systems, Blu-ray players, copy machines, routers and modems in a home or office Cat5/5e/6 application.
This 25-ft. (7.62 m) green cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG 4-pair solid UTP with a staggered-pin plug design and male RJ45 connectors, each cable provides high-speed connections up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.
The N200-025-GN is constructed of top-quality materials for long life and durability. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11).
Specifications
| Features |
|---|
| Product colour |
Green |
| Country of origin |
China |
| Frequency |
550 MHz |
| AWG wire size |
24 |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
300" (7.62 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
8544.42.2000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
8" (203.2 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
10" (254 mm) |
| Package weight |
11.3 oz (320 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Product colour |
Green |
| Plug and Play |
Yes |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Cabling technology |
10/100Base-T(X) |
| Data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.5 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Stranded |
| Cable length |
300" (7.62 m) |
| Country of origin |
China |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332201970 |
| Logistics data |
|---|
| Master (outer) case gross weight |
6.94 lbs (3.15 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
18" (457.2 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
20" (508 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332201970 |
| Harmonized System (HS) code |
8544.42.2000 |
