Cat5e 350 MHz Solid Core (UTP) PVC Bulk Ethernet Cable - Blue, 1000 ft. (304.8 m), TAA
Key Features
- Ideal for all non-plenum horizontal wiring applications
- Rated for 350 MHz/1 Gbps communications
- High-quality 24 AWG 4-pair solid copper wire
- CMR-rated PVC jacket
- Meets IEEE 802.3ab and ANSI/EIA/TIA 568 standards
Description
Perfect Solution for Cat5/5e Premise ApplicationsDesigned for fast transmission and excellent signal quality throughout your LAN
Delivers speeds up to 350 MHz/1 Gbps
Ideal for all non-plenum horizontal wiring applications, including 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type 3 applications
Premium Construction for Superior PerformanceMade from 24 AWG copper wire

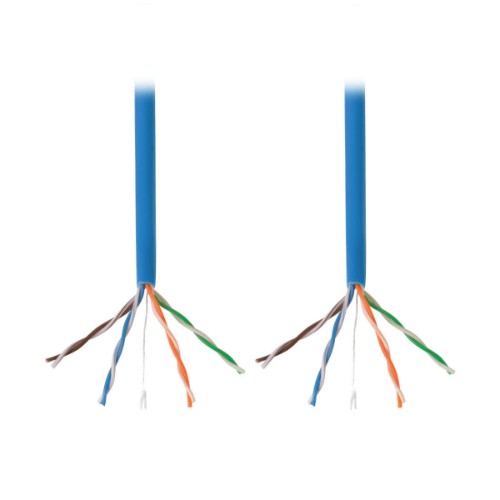

4-pair solid UTP
CMR-rated PVC jacket
Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e, draft 11)
TAA-CompliantCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
| Features |
|---|
| Product colour |
Blue |
| Country of origin |
South Korea |
| Cable standard |
Cat5e |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.3ab |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Solid |
| Cable length |
12007.9" (305 m) |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Harmonized System (HS) code |
84733080 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package width |
13.8" (350 mm) |
| Package depth |
13.8" (350 mm) |
| Package height |
10.6" (270 mm) |
| Package weight |
21.9 lbs (9.93 kg) |
| Technical details |
|---|
| Product colour |
Blue |
| Cable standard |
Cat5e |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.3ab |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor type |
Solid |
| Cable length |
12007.9" (305 m) |
| Country of origin |
South Korea |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332098228 |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332098228 |
| Harmonized System (HS) code |
84733080 |
