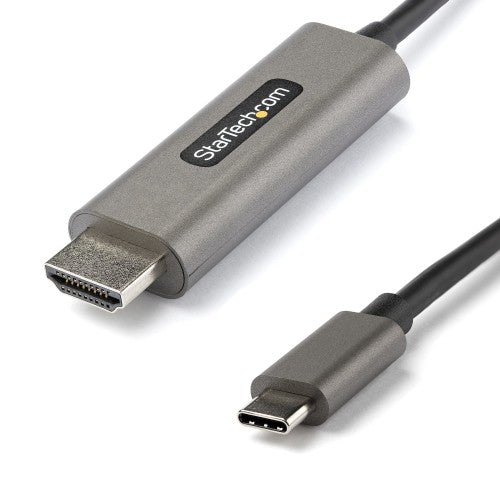

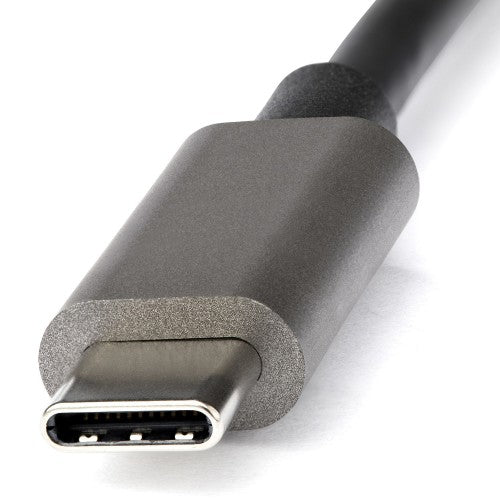

StarTech.com 16ft (5m) USB C to HDMI Cable 4K 60Hz w/ HDR10 - Ultra HD USB Type-C to 4K HDMI 2.0b Video Adapter Cable - USB-C to HDMI HDR Monitor/Display Converter - DP 1.4 Alt Mode HBR3 (CDP2HDMM5MH)
Key Features
- HIGH PERFORMANCE: 16ft (5m) USB C or Thunderbolt 3 to HDMI 2.0b adapter cable supports Ultra HD (UHD) resolutions up to 4K 60Hz (3840x2160) with HDR10, 7.1ch Audio, HDCP 2.2/1.4
- DisplayPort 1.4 Alt Mode HBR3
- Backwards compatible with 1080p
- INTEGRATED DISPLAY CABLE WITH HDR: Color spacing supporting RGB (8/10bit) and YCbCr 4:4:4 (8/10bit) for high-contrast & lifelike color with HDMI 2.0b displays
- Chip built into HDMI connector minimizes signal loss & failure points, provides tidy install
- HOST COMPATIBILITY: USB C to HDMI cable for devices like Dell XPS/Precision/Latitude, Lenovo ThinkPad X1 Carbon/Extreme, Surface Pro 7/Laptop 3/Book 3, MacBook Pro/Air, iPad Pro, HP EliteBook/Spectre/ZBook, Chromebooks, Samsung S20/S21/Note20 (DEX mode)
Description
USB Type-C™ Adapter Cable | HDR10 | Ultra HD | Thunderbolt™ 3 Host Compatible
This USB-C to HDMI cable lets you connect your USB Type-C (supporting DP Alt Mode) or Thunderbolt 3 device to an HDMI display. The display cable supports High Dynamic Range (HDR10) and provides sharper images with enhanced video.
With brighter colors and greater contrast, the video adapter cable is ideal for:
• Creating eye-catching visuals for photography, videography, cinematography
• Displaying crisp digital signage walls
• Delivering enriched presentations
True 4K at 60Hz and HDR
The USB-C video converter cable is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840x2160) and bandwidths up to 18Gbps. The cable offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. It's also backward compatible with earlier versions of HDMI.
With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.
Clutter-Free Installation
At 5m (16ft) in length, this cable cord delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation.
Hassle-Free Setup
To ensure easy operation and installation, this USB-C to HDMI cable supports a seamless plug & play setup with any OS, including macOS, Windows, Linux, Chrome and Android.
CDP2HDMM5MH is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• To achieve HDR, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0b
•
NVIDIA graphics adapters may not support 4:4:4 chroma subsampling and 5.1/7.1 audio output, when used with this adapter cable
The StarTech.com Advantage
Specifications
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
RTD2172U |
| HDMI version |
2.0b |
| DisplayPort version |
1.4 |
| Product colour |
Black, Silver |
| Cable length |
196.9" (5 m) |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
USB Type-C |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| HDCP version |
1.4/2.2 |
| High Dynamic Range (HDR) supported |
Yes |
| Supported audio channels |
7.1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Other features |
|---|
| Width |
0.472" (12 mm) |
| Height |
0.866" (22 mm) |
| Weight & dimensions |
|---|
| Width |
0.472" (12 mm) |
| Height |
0.866" (22 mm) |
| Weight |
7.02 oz (199 g) |
| Package width |
0.669" (17 mm) |
| Package depth |
196.9" (5000 mm) |
| Package height |
0.236" (6 mm) |
| Package weight |
7.34 oz (208.1 g) |
| Packaging data |
|---|
| Package width |
0.669" (17 mm) |
| Package depth |
196.9" (5000 mm) |
| Package height |
0.236" (6 mm) |
| Package weight |
7.34 oz (208.1 g) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
CE, RoHS |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width |
16.5" (420 mm) |
| Master (outer) case length |
17.3" (440 mm) |
| Master (outer) case height |
16.5" (420 mm) |
| Products per master (outer) case |
60 pc(s) |
| Harmonized System (HS) code |
84733080 |
