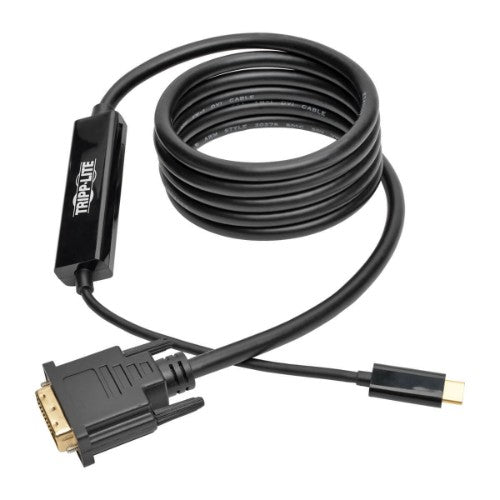

Tripp Lite U444-006-D video cable adapter 70.9" (1.8 m) USB Type-C DVI-D Black

USB-C to DVI Active Adapter Cable (M/M), Black, 6 ft. (1.8 m)

Key Features

• Supports USB DisplayPort Alternate Mode for transmitting video
• Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
• Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
• Reversible USB-C plug connects in either direction
• Plug-and-play operation with no software or drivers required
• Note: This cable is uni-directional. Will only work from a USB-C port to DVI port

Description

Connects a DVI Display to Your USB-C or Thunderbolt 3 Device
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming 1080p video for digital signage
Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps

Common Applications

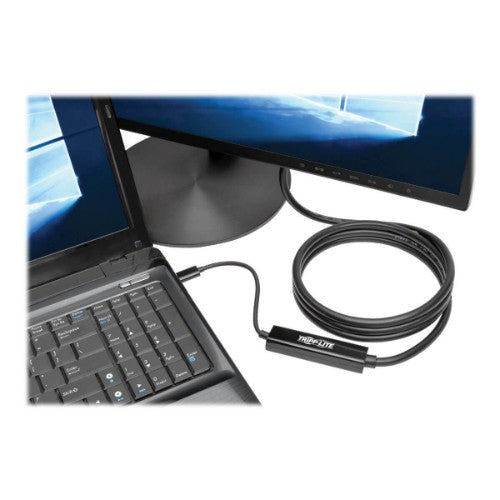

Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display

Crystal-Clear 1080p Video
Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Supports 36-bit Deep Color (12 bits per channel)
Supports DVI digital transfer rates of 6.75 Gbps (2.25 Gbps per channel)

Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Premium Construction
Gold-plated connectors and contacts for maximum conductivity and minimum data loss
Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
Integral strain relief helps cable and connectors move freely without stress or cracking
Durable PVC jacket designed to last a long time

Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
6 ft. length easy to manage in crowded environments
Backward compatible with non-1080p displays

Specifications

Features
Country of origin	Vietnam
Colour depth	36 bit
Product colour	Black
Cable length	70.9" (1.8 m)

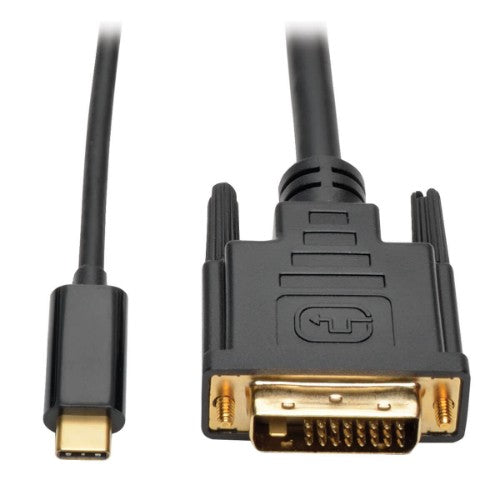

Connector 1	USB Type-C
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Male
Data transfer rate	6.75 Gbit/s
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Plug and Play	Yes
Certificates
Compliance certificates	RoHS
Technical details
Country of origin	Vietnam
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Weight & dimensions
Weight	3.53 oz (100 g)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	3.88 oz (110 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	3.88 oz (110 g)
Logistics data
Master (outer) case width	15.7" (398.8 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	15.7" (398.8 mm)
Master (outer) case gross weight	2.4 lbs (1.09 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332202502
Harmonized System (HS) code	84733080
