SmartRack Adjustable Rack-Mount DIN Rail Kit – Top Hat, Mini Top Hat and G-Style Rails
Key Features
- Ideal for DIN equipment, including power supplies, terminal strips and circuit breakers
- Compatible with EIA-standard 19 in. open frame racks and floor rack enclosures
- Durable cold-rolled steel construction designed to stand up to heavy use over time
- Rack-mounting hardware included for immediate installation

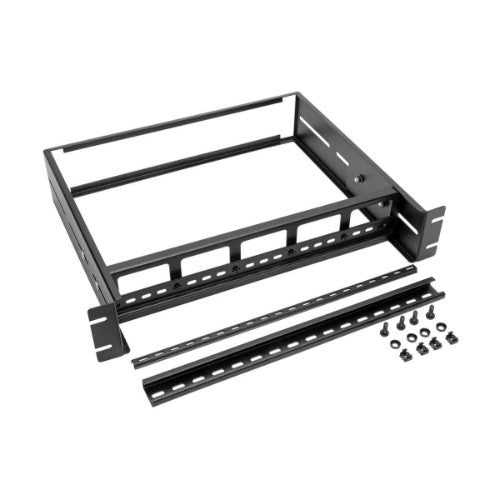

- Includes multiple rail-mount options, including top hat, mini top hat and G style
Description

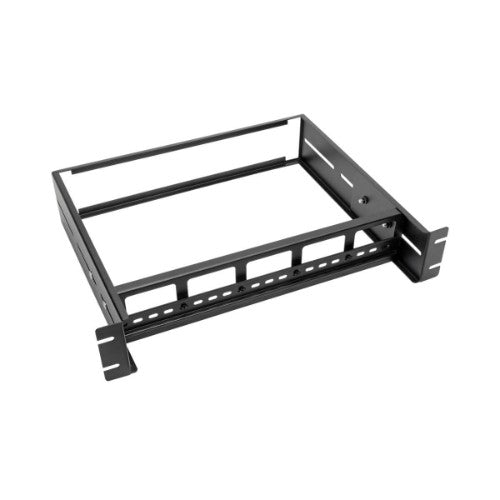

DIN Rail-Mounting Kit Compatible with Wide Range of EquipmentThis 2U rack-mount DIN kit includes top hat, mini top hat and G-style rails, making it compliant with an array of DIN rail equipment, such as power supplies, bell transformers, terminal strips, programmable time switches and circuit breakers. The adjustable rails can be easily set back to match DIN rail equipment of any depth.

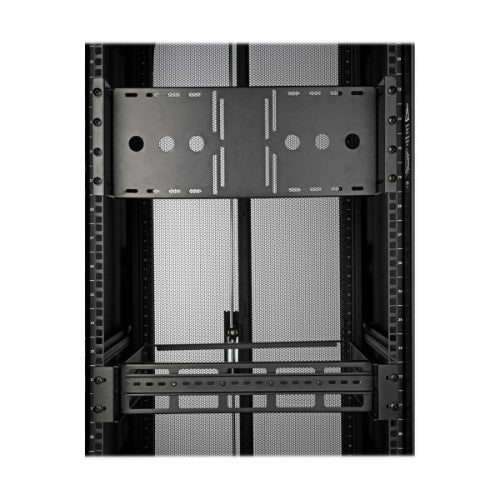

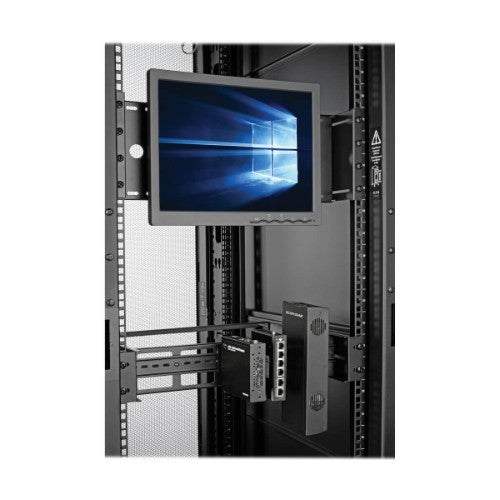

Premium Construction Designed to Endure in Busy Rack ApplicationsThe SRDINRAIL2U DIN rail-mounting kit is made from durable cold-rolled steel with a black powder-coated finish that blends seamlessly with your rack décor. It mounts into 2U of space in an EIA-standard 19-inch open frame rack or floor-standing rack enclosure. Rack-mounting hardware is included for quick installation right from the box.
2-Year Warranty and Environmentally Responsible DesignThe SRDINRAIL2U comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications.
Specifications
| Features |
|---|
| Type |
Adjustable shelf |
| Product colour |
Black |
| Harmonized System (HS) code |
7326.90.8688 |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Package width |
15.8" (401.3 mm) |
| Package height |
4.2" (106.7 mm) |
| Package depth |
19.4" (492.8 mm) |
| Package weight |
5.91 lbs (2.68 kg) |
| Width |
19" (482.6 mm) |
| Weight |
3.97 lbs (1.8 kg) |
| Height |
3.5" (88.9 mm) |
| Depth |
14.1" (358.4 mm) |
| Packaging data |
|---|
| Package width |
15.8" (401.3 mm) |
| Package height |
4.2" (106.7 mm) |
| Package depth |
19.4" (492.8 mm) |
| Package weight |
5.91 lbs (2.68 kg) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Type |
Adjustable shelf |
| Master (outer) case GTIN (EAN/UPC) |
10037332213263 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case width |
21.9" (556.3 mm) |
| Master (outer) case length |
20.4" (518.2 mm) |
| Master (outer) case height |
16.7" (424.2 mm) |
| Master (outer) case gross weight |
32.6 lbs (14.8 kg) |
| Products per master (outer) case |
5 pc(s) |
| Harmonized System (HS) code |
7326.90.8688 |
