SmartRack Cantilever Fixed Steel Rack Shelf - 1U, Vented, 7 in. (17.8 cm) Deep, Holds up to 40 lb. (18 kg)
Key Features
- Cantilever 1U rack shelf secures non-rack equipment like WAPs and monitors
- Heavy-duty cold-rolled steel construction with maximum load capacity of 40 lbs (18 kgs)
- Vented design maximizes airflow to protect equipment against excessive heat
- 2 units can be installed back-to-back to create a deeper shelf in same 1U rack space
Description

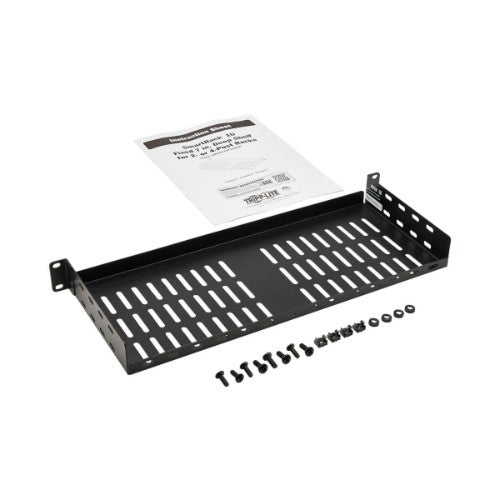

1U Vented Cantilever Rack Shelf Secures Non-Rack Equipment in Your Data CenterThis SmartRack® fixed shelf supports monitors, wireless access points, tower units and other IT equipment not typically stored in a rack. Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, the SRSHELF2P1USHRT has a maximum load capacity of 40 pounds (18 kilograms). It mounts easily into 1U of space in an EIA-standard 19-inch 2-post or 4-post enclosure or open frame rack using the included hardware.
Maximizes Rack Space and Saves Desk or Floor Space in a Busy OfficeThe steel shelf is seven inches (17.8 centimeters) deep for organizing network and other non-rack equipment in your small office or server room. The vented surface allows generous airflow to keep your equipment cool and functioning at its peak. You may mount two SRSHELF2P1USHRT shelves back-to-back in your rack to create a deeper shelf in the same 1U rack space.
Specifications
| Features |
|---|
| Type |
Rack shelf |
| Rack capacity |
1U |
| Maximum weight capacity |
39.7 lbs (18 kg) |
| Product colour |
Black |
| Harmonized System (HS) code |
7326.90.8688 |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Package width |
2.37" (60.3 mm) |
| Package height |
8.37" (212.7 mm) |
| Package depth |
20.5" (520.7 mm) |
| Package weight |
3.31 lbs (1.5 kg) |
| Width |
19" (482.6 mm) |
| Weight |
33.9 oz (960 g) |
| Height |
1.75" (44.4 mm) |
| Depth |
7.25" (184.2 mm) |
| Maximum weight capacity |
39.7 lbs (18 kg) |
| Packaging data |
|---|
| Package width |
2.37" (60.3 mm) |
| Package height |
8.37" (212.7 mm) |
| Package depth |
20.5" (520.7 mm) |
| Package weight |
3.31 lbs (1.5 kg) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Technical details |
|---|
| Type |
Rack shelf |
| Rack capacity |
1U |
| Sustainability compliance |
Yes |
| Master (outer) case GTIN (EAN/UPC) |
10037332263152 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
7326.90.8688 |
