SmartRack 6U Vertical Wall-Mount Rack Bracket
Key Features
- 19-inch wall-mount rack with maximum load capacity of 200 lbs (90.7 kgs)
- Provides open, unrestricted access to equipment and cabling
- Made from cold-rolled steel with black powder-coated finish
- Equipment-mounting hardware included
- Compatible with most EIA-standard 19 in. 2-post rack equipment
Description
The SRWALLBRKT6U SmartRack® 6U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

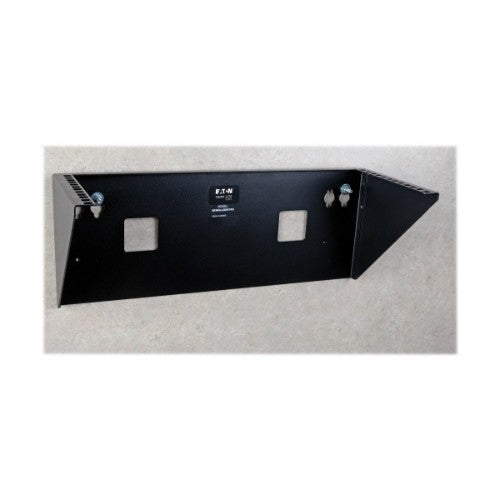

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 6U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

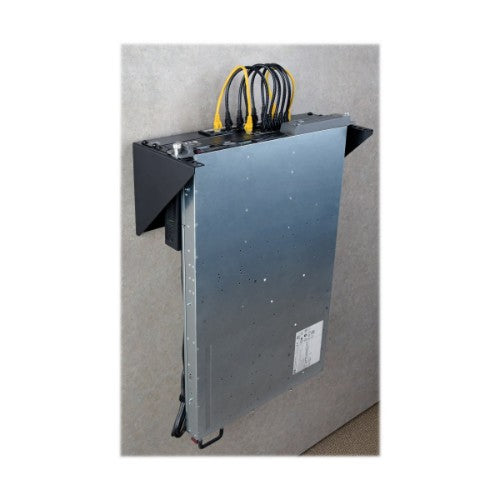

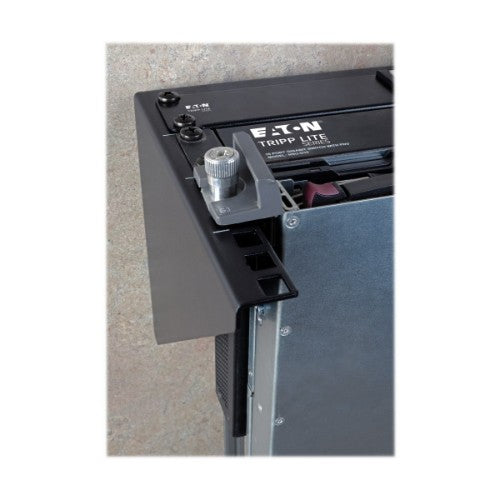

Use the included hardware to attach your 6U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 200 lbs (90.7 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT6U is compatible with most EIA-standard 19-inch two-post rack equipment.
Specifications
| Features |
|---|
| Type |
Mounting bracket |
| Size (imperial) |
19" |
| Rack capacity |
6U |
| Maximum weight capacity |
200.6 lbs (91 kg) |
| Product colour |
Black |
| Harmonized System (HS) code |
7326.90.8688 |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Package width |
21.9" (555 mm) |
| Package height |
10.8" (275.1 mm) |
| Package depth |
18.3" (465.1 mm) |
| Package weight |
12.1 lbs (5.5 kg) |
| Width |
19.7" (500.1 mm) |
| Weight |
8.38 lbs (3.8 kg) |
| Size (imperial) |
19" |
| Height |
11.1" (283.2 mm) |
| Depth |
11.1" (283.2 mm) |
| Maximum weight capacity |
200.6 lbs (91 kg) |
| Packaging data |
|---|
| Package width |
21.9" (555 mm) |
| Package height |
10.8" (275.1 mm) |
| Package depth |
18.3" (465.1 mm) |
| Package weight |
12.1 lbs (5.5 kg) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Screws included |
Yes |
| Mounting kit |
Yes |
| Nuts included |
Yes |
| Number of screws |
12 |
| Number of nuts |
12 |
| Technical details |
|---|
| Type |
Mounting bracket |
| Size (imperial) |
19" |
| Rack capacity |
6U |
| Master (outer) case GTIN (EAN/UPC) |
10037332203219 |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case width |
22.4" (570 mm) |
| Master (outer) case length |
44.5" (1130 mm) |
| Master (outer) case height |
18.9" (480.1 mm) |
| Master (outer) case gross weight |
48.5 lbs (22 kg) |
| Products per master (outer) case |
4 pc(s) |
| Harmonized System (HS) code |
7326.90.8688 |
