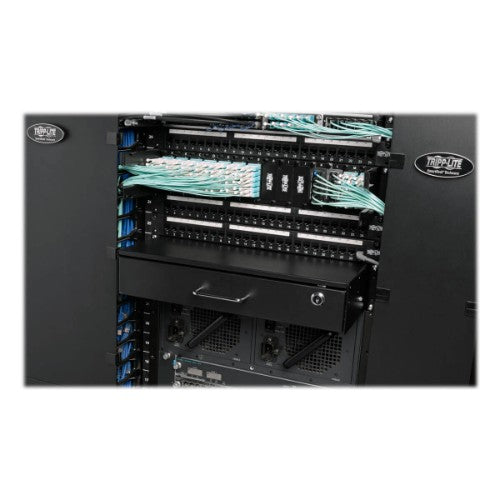

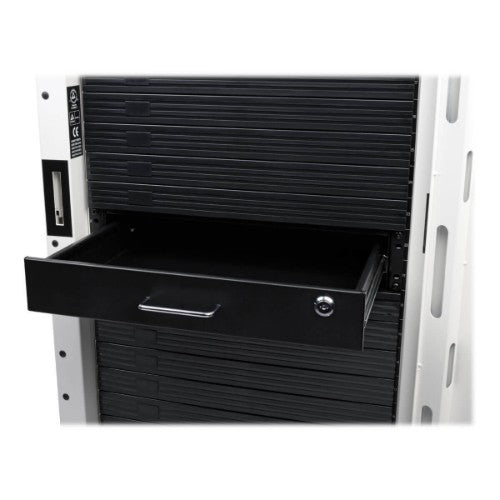

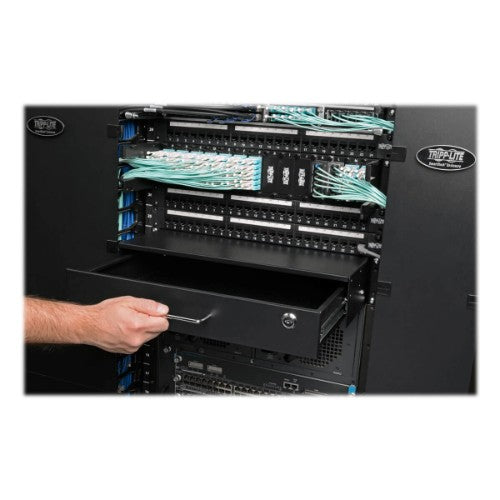

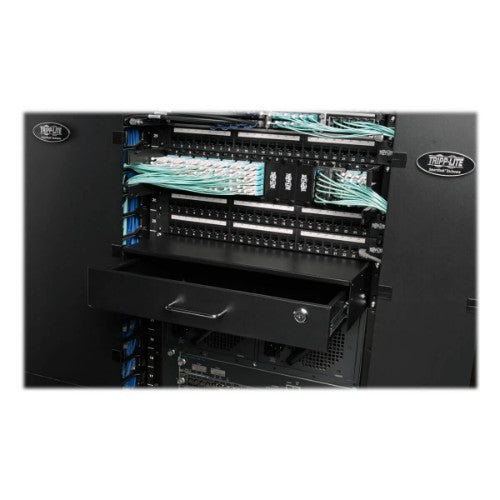

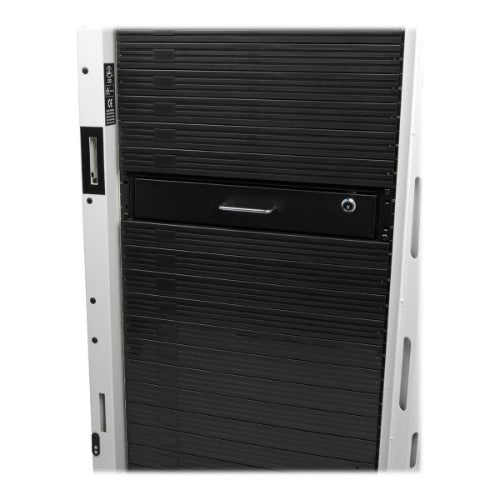

SmartRack 2U Locking Rack-Mount Storage Drawer
Key Features
- 2U rack-mount drawer with maximum load capacity of 50 lbs (22.7 kgs)
- Locks securely with included keys to protect contents
- Made from cold-rolled steel with black powder-coated finish
- Mounting hardware included for rack installation
- Slides smoothly out of the way into rack when not in use
Description
The SRDRAWER2U SmartRack® 2U Locking Rack-Mount Storage Drawer is a convenient way to keep tools, cables, notes and essential accessories for your rack-mounted equipment at your fingertips. Constructed using cold-rolled steel with a durable black powder-coated finish, this rack-mount drawer has a maximum load capacity of 50 lbs (22.7 kgs).
Recommended for quick storage in your data center, wiring closet, back office or anywhere else you keep rack equipment, the SRDRAWER2U mounts to your EIA-standard 19-inch 2-post or 4-post rack using the included hardware. It locks securely with the included keys to help prevent damage, tampering or theft. When not in use, the 2U drawer slides smoothly into the rack, out of the way until the next time you need a quick screwdriver or patch cable.
Specifications
| Features |
|---|
| Type |
Rack cabinet |
| Rack capacity |
2U |
| Maximum weight capacity |
50 lbs (22.7 kg) |
| Product colour |
Black |
| Harmonized System (HS) code |
7326.90.8688 |
| Housing material |
Steel |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Package width |
20.9" (530.1 mm) |
| Package height |
6.1" (154.9 mm) |
| Package depth |
20.3" (515.1 mm) |
| Package weight |
19 lbs (8.62 kg) |
| Width |
17.2" (437.4 mm) |
| Weight |
15.4 lbs (7 kg) |
| Height |
3.46" (87.9 mm) |
| Depth |
17.8" (452.4 mm) |
| Maximum weight capacity |
50 lbs (22.7 kg) |
| Packaging data |
|---|
| Package width |
20.9" (530.1 mm) |
| Package height |
6.1" (154.9 mm) |
| Package depth |
20.3" (515.1 mm) |
| Package weight |
19 lbs (8.62 kg) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Type |
Rack cabinet |
| Rack capacity |
2U |
| Master (outer) case GTIN (EAN/UPC) |
10037332203172 |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Master (outer) case width |
42.5" (1080 mm) |
| Master (outer) case length |
21.1" (534.9 mm) |
| Master (outer) case height |
31.9" (810 mm) |
| Master (outer) case gross weight |
176.4 lbs (80 kg) |
| Products per master (outer) case |
10 pc(s) |
| Harmonized System (HS) code |
7326.90.8688 |
